Plockmatic BM3050 system 27 August 2019 3. Repairs and adjustments (REP and ADJ)
3-216
B
C
D
F
G
H
Replacement
Reverse removal procedure
Make sure to mount timing pulley using measured position [E]
Note!
Torque the set screw against at surface [I] on motor shaft.
E
I

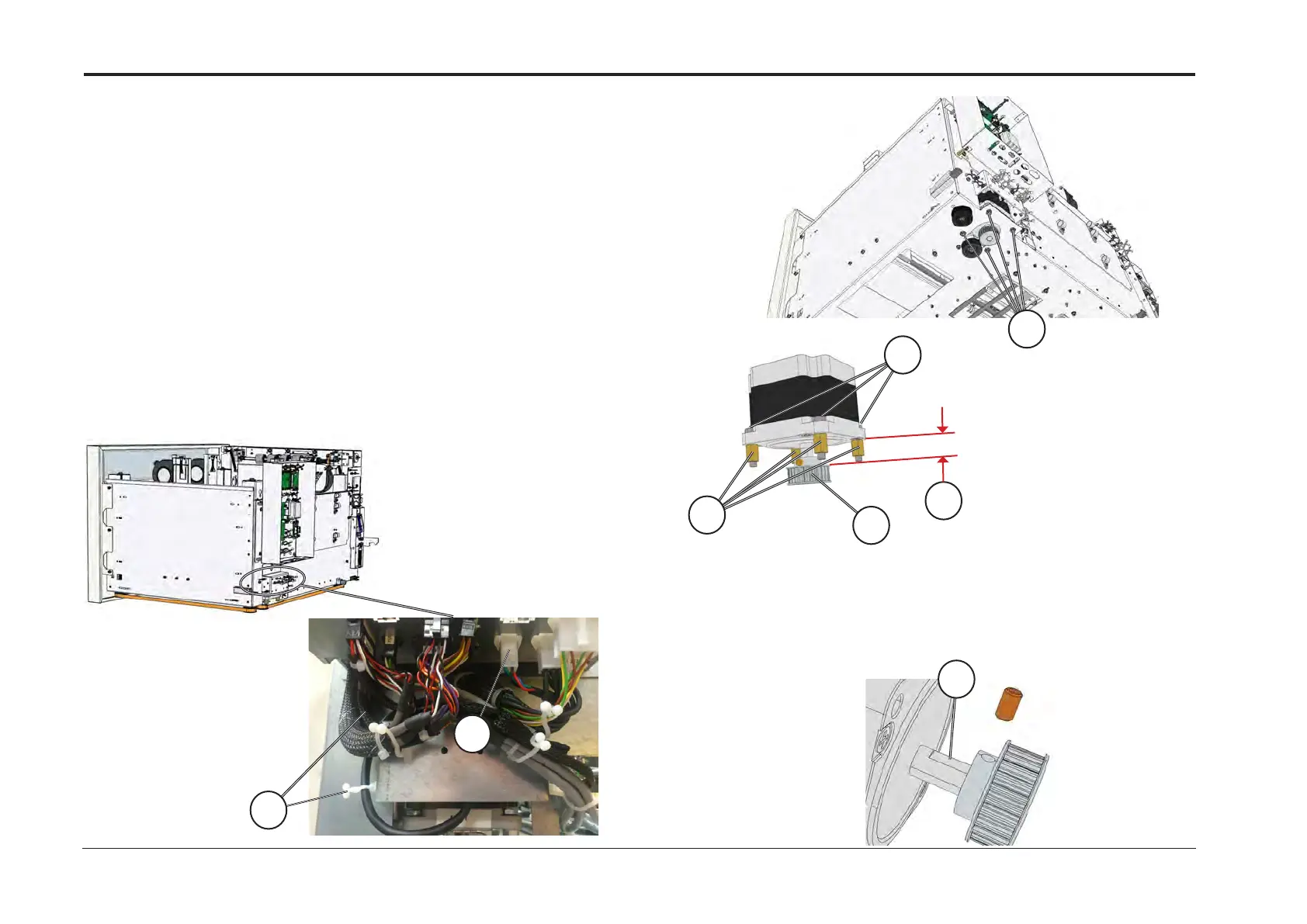

Replace motor
1. Remove Tray Table (REP 14.8)
2. Remove Timing Belt (REP 14.7)
3. Disconnect connector M101/M201 [B]
4. Unhook harness from cable holders [C]
5. Remove nuts [D] (x4) and remove motor
6. Measure position of pulley for later replacement [E]
7. Move screws [F], spacers [G] and timing pulley (H) over to new motor.
Check Motor
1. Enter service mode and run motor between end positions
2. Check that set screw is rmly torqued in sprocket and against the D-
surface of the shaft
(AF602 Spare Parts Manual, PL2.2 Item 3)
REP 14.13 Stepper Motor M101 / M201
