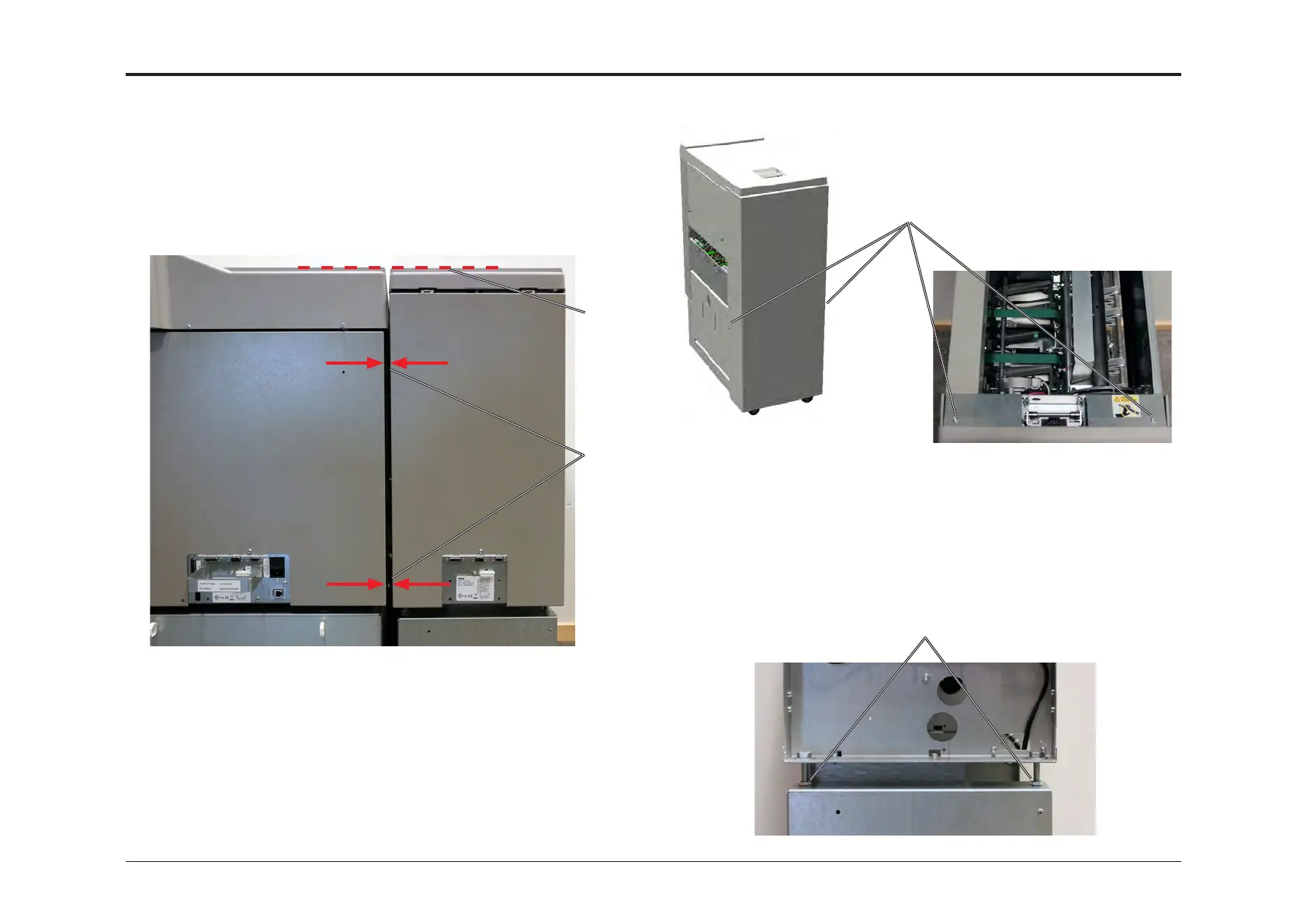

7. Roll the Trimmer up to the Booklet Maker.
Purpose is to check alignment top to bottom and height adjustment.
Alignment is correct when the distance between the Booklet Maker
and the Trimmer is equal top to bottom [F]. Height adjustment is cor-
rect when the top surface of the Trimmer front cover is at the same
height as the top surface ot the Booklet Maker front cover [G].
If adjustment is necessary, begin with adjusting alignment and con-
tinue with adjusting height.
[F]
[G]
9. Adjust the height of the Trimmer by turning the four nuts [J]. Two on
the front side and two on the back side. Adjust alignment by turning
only two of the nuts on either the infeed or exit side.
NOTE:
Do not turn each nut more than 2 full revolutions before adjusting the other
nuts. Each turn of a nut equals to a 1,5 mm (1/16”) travel.
8. Remove four screws [I] and remove Trimmer front cover.
[I]
[J]
