1. TORQUE TABLES

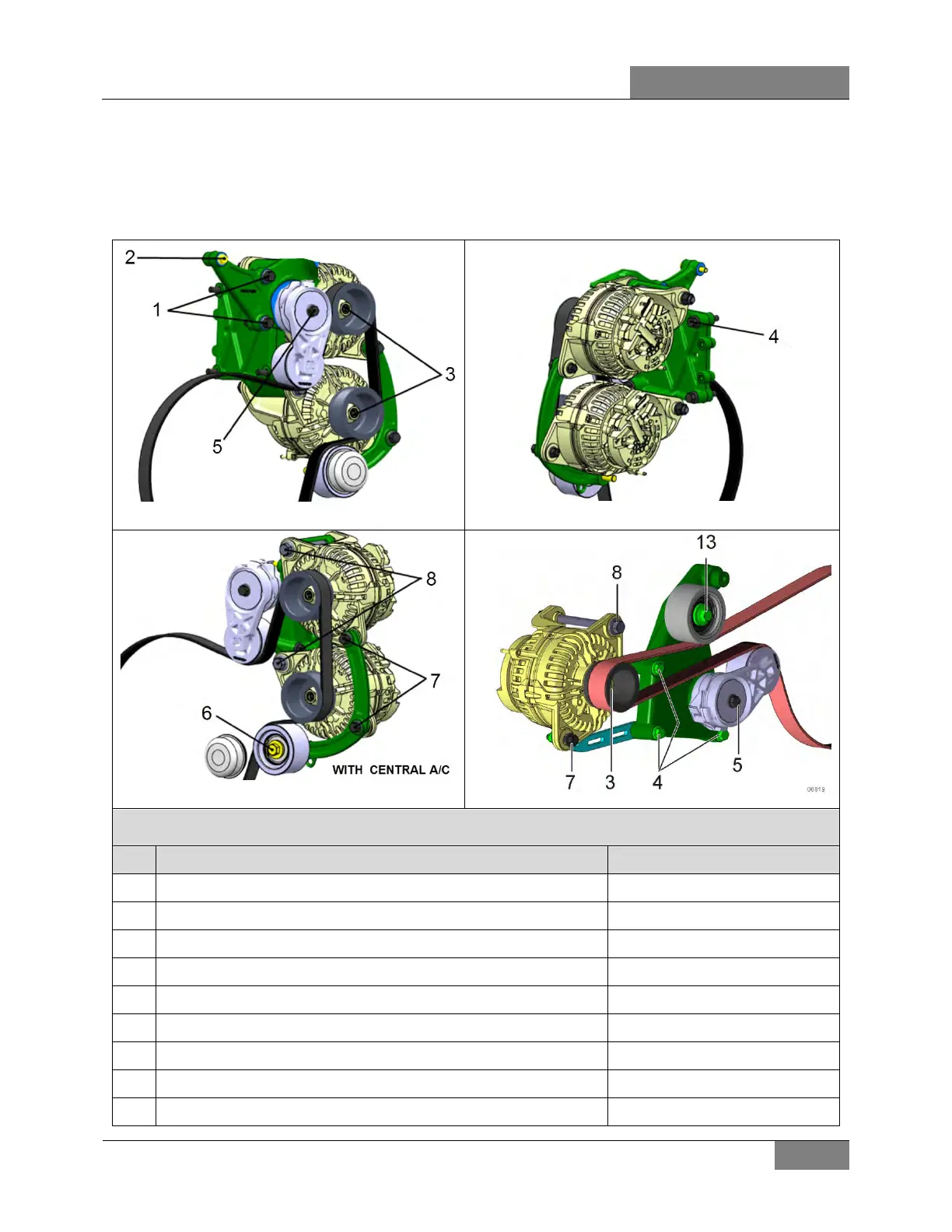

1.1 ALTERNATORS AND SURROUNDING COMPONENTS
COLD SIDE ALTERNATORS
06783
COLD SIDE ALTERNATORS
06784
COLD SIDE ALTERNATORS
06785
HOT SIDE ALTERNATOR, LOW LH (coaches)
BOSCH HD10 ALTERNATORS
No DESCRIPTION TORQUE
1 A/C tensioner / idler bracket mounting bolts (2) 43 lb-ft (58 Nm)
2 A/C tensioner / idler bracket mounting bolt (1) 22 lb-ft (30 Nm)
3 Alternator pulley (2) LH threads 70-80 lb-ft (95-108 Nm)
4 Alternator mounting bracket mounting bolts 48 lb-ft (65 Nm)
5 Alternator belt tensioner mounting bolt 48 lb-ft (65 Nm)
6 Alternator belt idler mounting bolt (central A/C config.) 82 lb-ft (111 Nm)
7 Alternator mounting bolts, short 48 lb-ft (65 Nm)
8 Alternator mounting bolts, long 82 lb-ft (111 Nm)
13 Alternator belt idler mounting bolt (hot side) 59 lb-ft (80 Nm)

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
