SECTION 22: HEATING AND AIR CONDITIONING
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
21

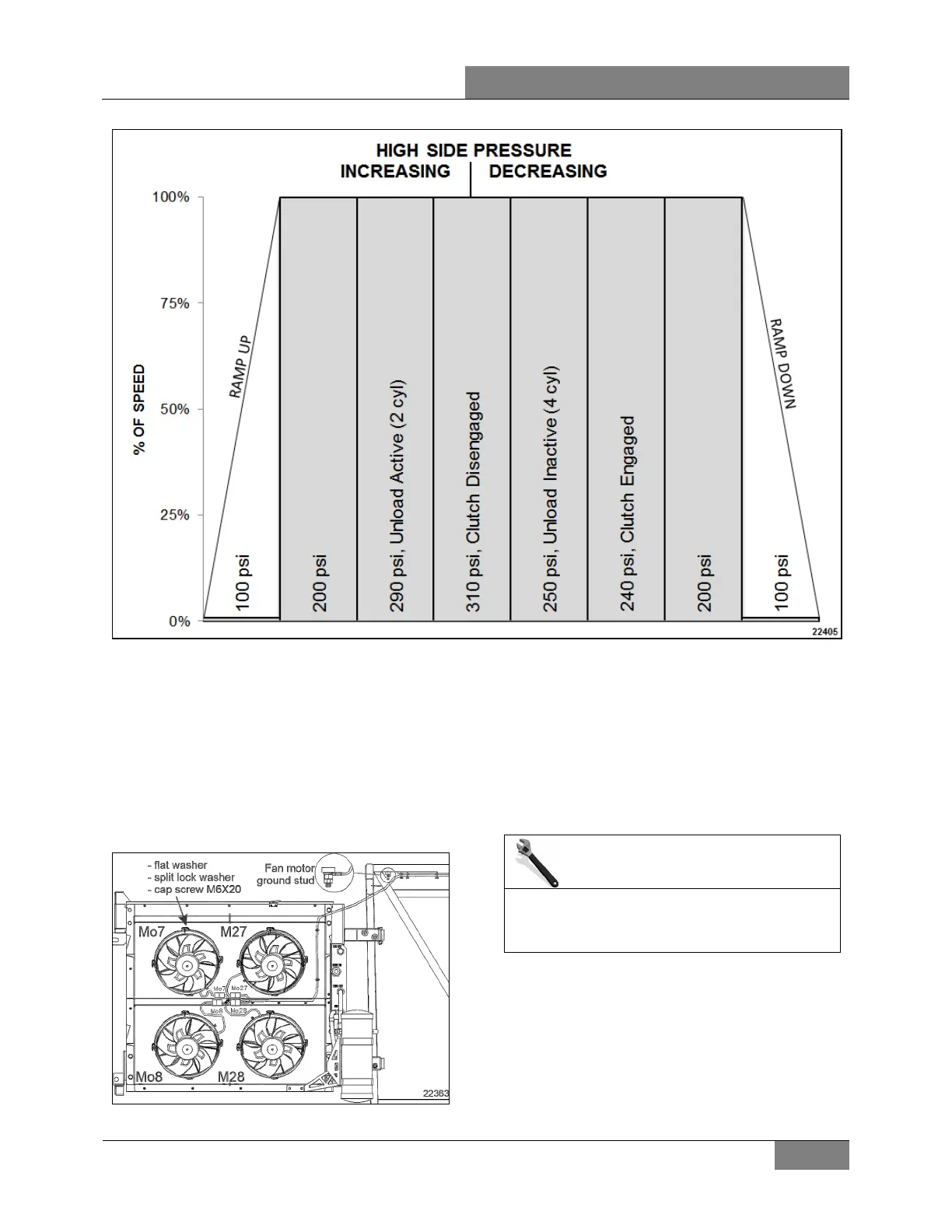

FIGURE 26: CONDENSER FAN SPEED AND COMPRESSOR EVENTS IN RELATION WITH HIGH SIDE PRESSURE
4.3.2 Condenser Fan Removal
1. Set the battery master switch to the OFF
position.
2. Unplug the fan harness. (Figure 27).
3. Remove the four hexagonal head cap
screws retaining the fan assembly to the
shroud.
4. Remove the motor.
FIGURE 27: CONDENSER FANS
4.4 RECEIVER TANK
The receiver tank is located in the condenser
compartment (Figure 28). The function of the
receiver tank is to store the liquid refrigerant.
During normal operation, the level of the
refrigerant should be approximately at the mid-
point of the lower sight glass.
MAINTENANCE
Check refrigerant level and add if necessary,
at the intervals specified by the Lubrication &
Servicing Schedule in Section 24A.
