PREVOST X3-45 COMMUTER User Manual

SECTION 18: BODY
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
71
10.6 ZONE 6

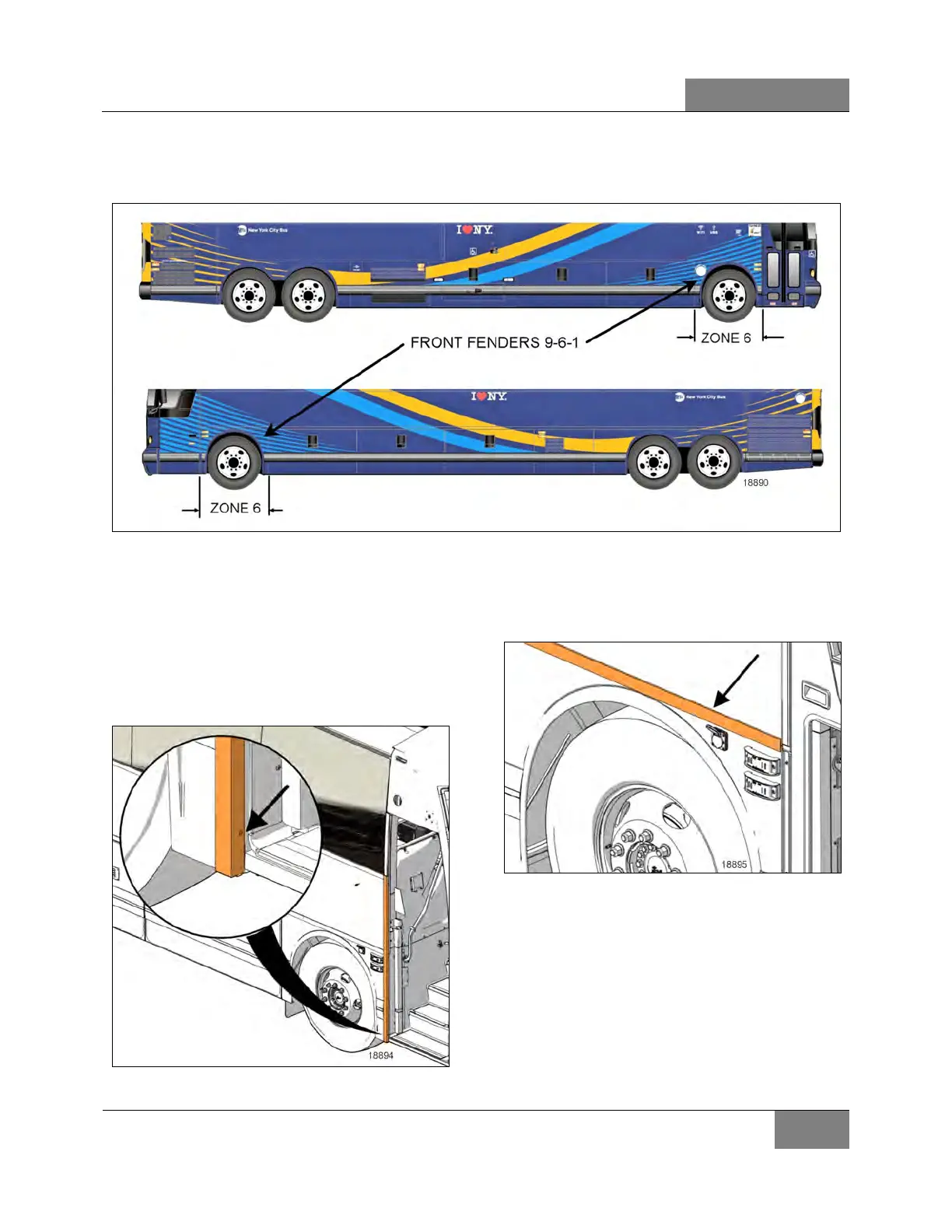

FIGURE 139: ZONE 6
10.6.1 Front Fenders
FRONT FENDER REMOVAL
1. Remove vertical trim mounting rivets and
remove the trim. This trim is kept in place
with glue and rivets.
FIGURE 140: VERTICAL TRIM
2. Mark a line on the top of the horizontal trim.
3. Remove the horizontal trim. That trim is
glued on the vehicle.
FIGURE 141: HORIZONTAL TRIM
4. Front fenders are kept in place with glue,
screws and rivets. Remove fender fasteners
(screws and rivets) and move slightly out the
fender.
