PREVOST X3-45 COMMUTER User Manual

Mi14-01E Page 21 / 38 Rev: Oct 2021
2.2.2 Second Lift - Front Tow Eye Pads as Lifting Point for Towing
The tow eye pads fixed to the vehicle chassis, fore of the front axle will be used as front end lifting point
for towing.
1.
Perform the first lift as instructed in
paragraph 2.2.1 if not already done.

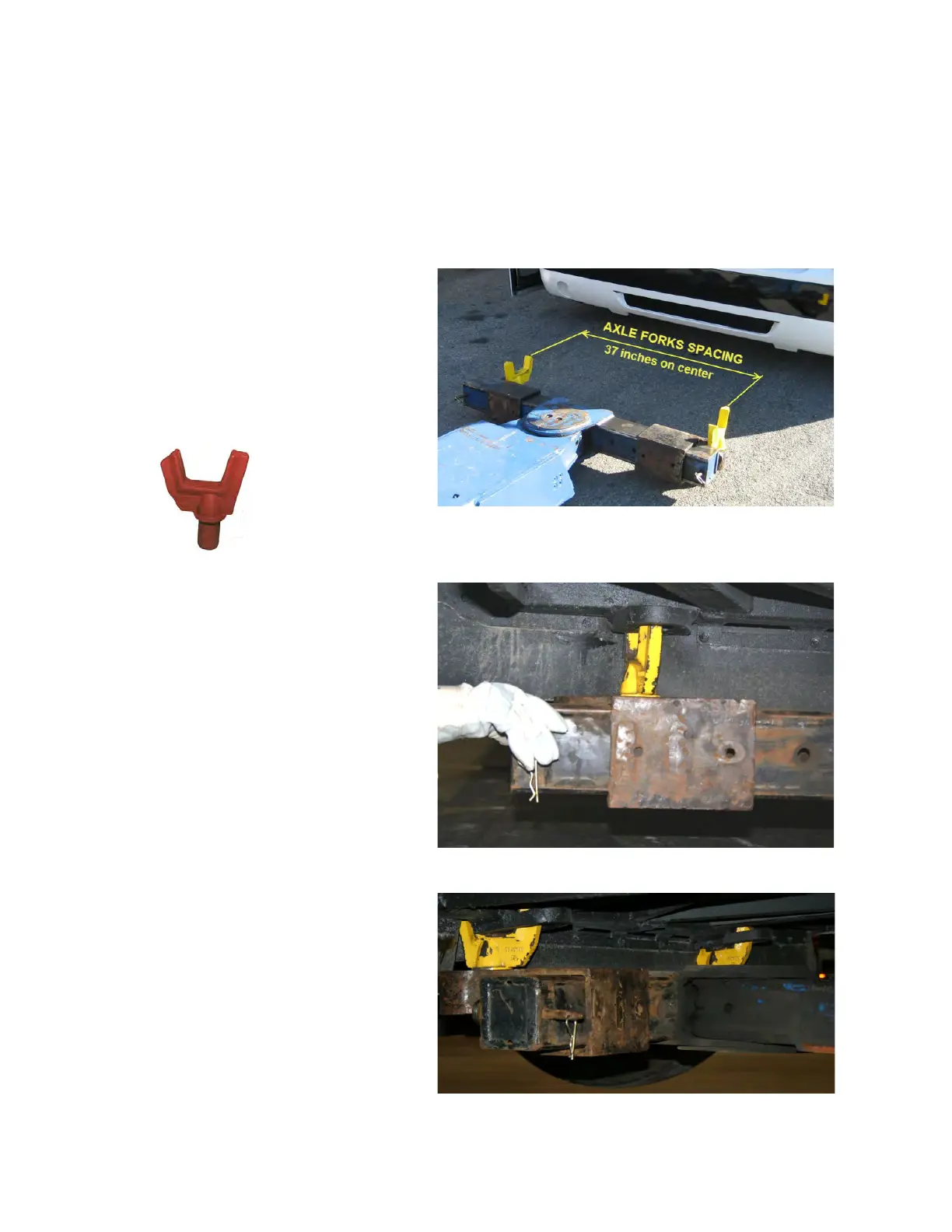

2. Place the axle forks on the tow bar fork
holders (Figure 35). Use the inner
fork receptacles.
Use 3" to 4 ½"
mouth axle forks
preferably
REGULAR
Figure 35
Pre-adjust spacing between axle forks
to = 37 inches
3. Lower the tow bar and position under
the front tow eye pads.
4. Adjust fork holders position and hand
guide the forks into each front tow eye
(Figure 35).
5. Lift the tow bar until the axle forks fit
snugly into the front tow eyes (Figure
36).
Figure 36
Axle forks properly engaged in tow
eyes (Figure 37 & Figure 38)
Figure 37

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
