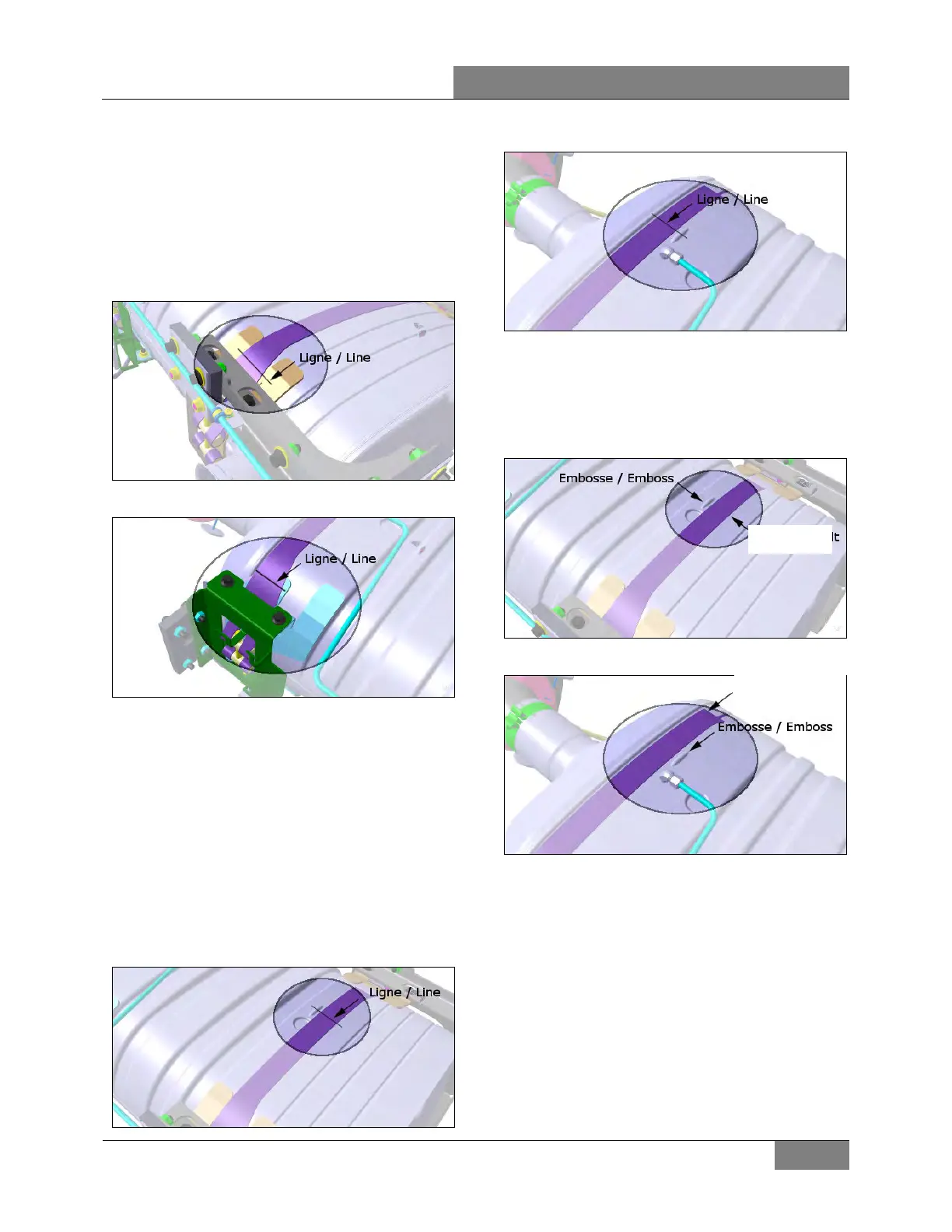

5. ASSEMBLING CATALYTIC CONVERTER
Before removing
1. Mark, with a vertical line the angular position
of the lower (both sides) and upper clamps
with regard to the clamps support located on
the catalytic converter.
Lower
Upper
2. Mark, with a vertical line the central position
of the lower and upper clamps with regard to
the emboss located at the bottom and at the
top of the catalytic converter.
Lower
Upper
Assembling
3. Position the upper clamps above the upper
emboss and the lower clamps below the
lower emboss of the catalytic converter.
Lower
Upper
4. Using the lines made earlier, line up the
lower and upper clamps with regard to the
emboss of the converter and afterward, line
up the lines made earlier on the clamps with
regard to the clamp supports on the catalytic
converter.
Lower
CLAMP CLAMP
CLAMP
