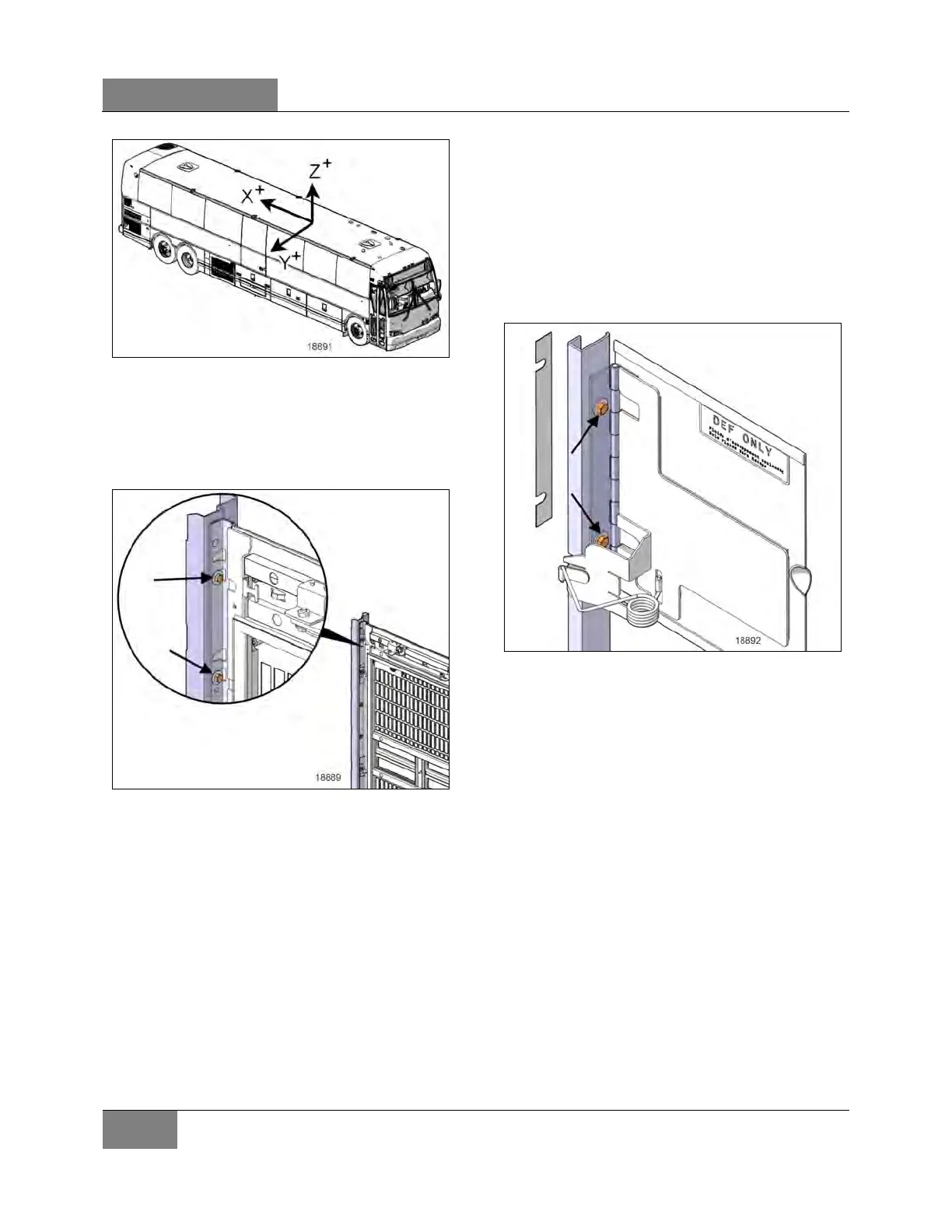

FIGURE 136: VEHICLE XYZ DIRECTIONS
1. Open the condenser door.
2. Loosen the hinge mounting screws.
Loosening these screws allows the
condenser door assembly to be adjusted in
all directions (X, Y or Z).
FIGURE 137: HINGE MOUNTING SCREWS
3. Adjust condenser door assembly position at
the hinge.
4. Respect the required gap between exterior
finishing panels.
5. Tighten the screws.
6. Check that the door swings freely and closes
properly. It may be necessary to adjust the
door latch to get proper fit and operation.
10.5.6 Fuel Filler Door
1. Open the fuel filler door.
2. Loosen the mounting screws holding the
panel to hinge assembly.
3. Adjust the fuel filler door position according
to distance required between exterior
finishing panels.
4. Tighten the nuts.
5. Check that the door swings freely and closes
properly. Use shims if necessary.
FIGURE 138: FUEL FILLER DOOR MOUNTING SCREWS
