PREVOST X3-45 COMMUTER User Manual

SECTION 14: STEERING
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
33
NOTE
‘’Toe-in’’ measurements must be taken at the
horizontal axis of the wheel centerline.
15.3.1 Inspection and Adjustment
Before checking front wheel toe-in, first check
the camber angles and make the necessary
corrections.
1. Measure the toe-in.
2. If the toe-in measurement is not within the
specified tolerance, carry out the following
procedure :
a. Loosen the pinch bolt on the right hand
(curb side) tie rod end where the
adjuster sleeve is located.
b. Turn the adjuster sleeve (Figure 41) until
the specified toe-in measurement is
obtained.
c. Tighten the pinch bolt nuts
TORQUE: 118-133 lb-ft (160-180 Nm)

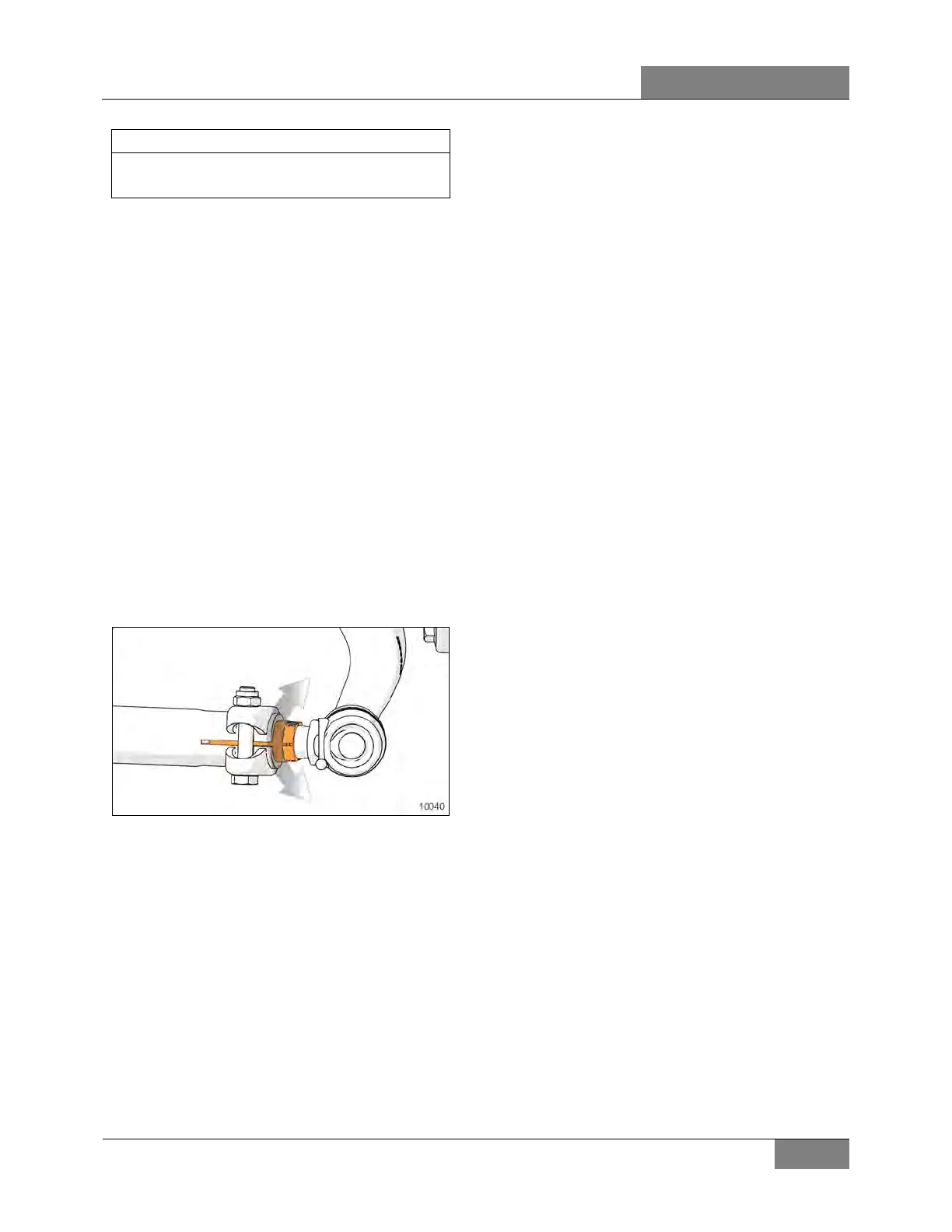

FIGURE 41: FINE ADJUSTER SLEEVE ON TIE ROD

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
