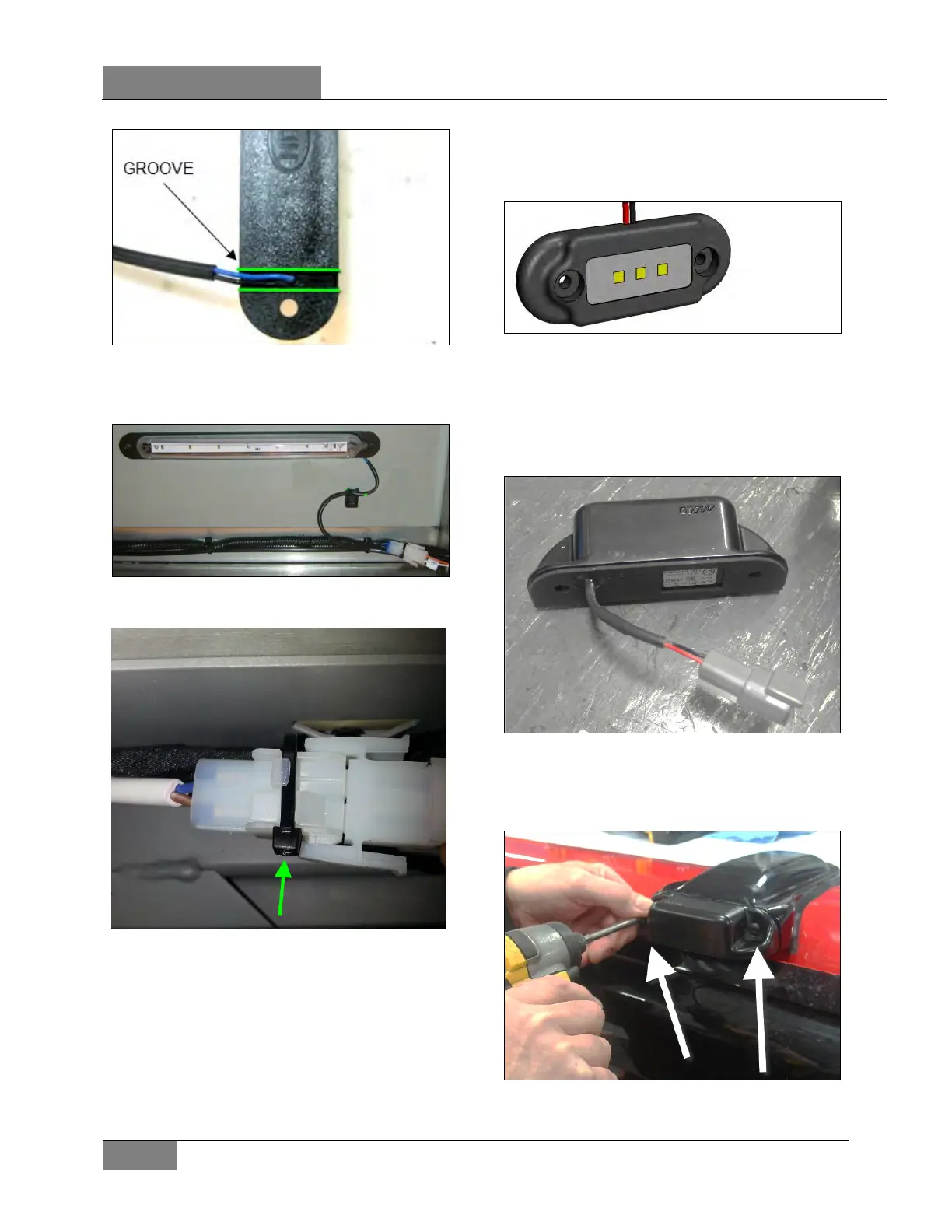

FIGURE 76: ROUTE THE WIRES IN THE GROOVE
UNDER THE SEALED UNIT BODY
FIGURE 77: BAGGAGE COMPARTMENT LIGHTS LED
SEALED UNIT
FIGURE 78: SECURE THE CONNECTOR WITH A NYLON
TIE
15.9 ENGINE COMPARTMENT LIGHTING
Three 24-volts LED modules illuminate the
engine compartment when the following
conditions are met:
1. The engine compartment rear door or
curbside door is open.
2. Ignition switch in ON or ACC position.
The light module is sealed thus not serviceable.
FIGURE 79: ENGINE COMPARTMENT LIGHT
15.10 PERIMETER LIGHTS
This type of light is a sealed unit (LED) and can
be replaced as a complete unit. (Figure 80)
FIGURE 80:PERIMETER LIGHT
15.10.1 Replacement
1. Remove the fixing screws (Figure 81)
FIGURE 81: PERIMETER LIGHT DISASSEMBLY
2. Disconnect light.
