1. TORQUE TABLES
1.1 POWER PLANT CRADLE INSTALLATION

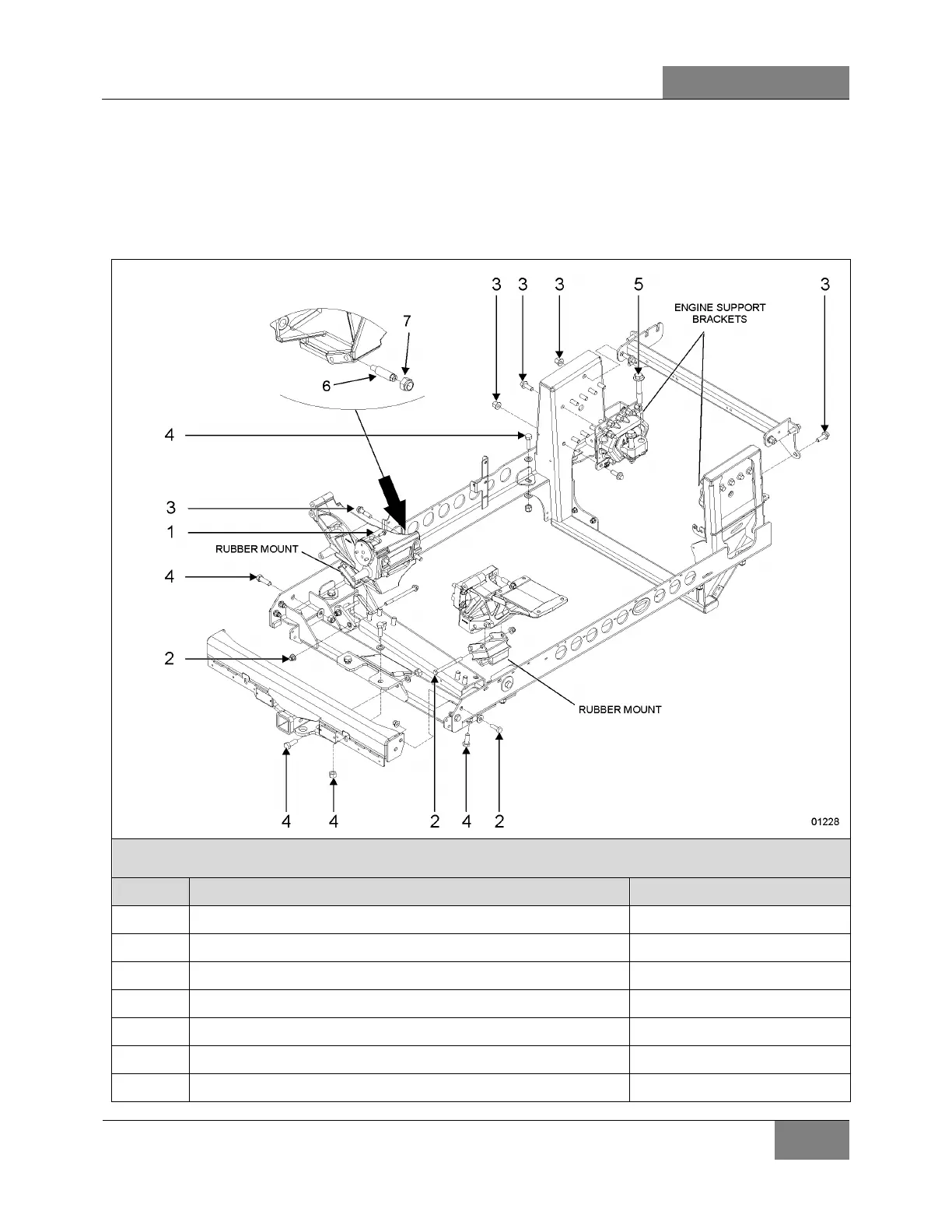

VOLVO ENGINE CRADLE INSTALLATION
No DESCRIPTION TORQUE
1 Screw, cap hexagonal head M8 – 1.25 g8.8 14 lb-ft (19 Nm)
2 Screw, cap hexagonal head M12 – 1.75 g8.8 60 lb-ft (81 Nm)
3 Screw, cap hexagonal head M14 – 2.0 g8.8 94 lb-ft (128 Nm)
4 Screw, cap hexagonal head M16 – 2.0 g10.9 190 lb-ft (258 Nm)
5 Screw, cap hexagonal head M20 – 2.5 g10.9 450 lb-ft (610 Nm)
6 Ground stud M14 – 2.0 85-103 lb-ft (115-140 Nm)
7 Nut on ground stud M22 – 2.5 165-201 lb-ft (224-273 Nm)

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
