PREVOST X3-45 COMMUTER User Manual

SECTION 10: FRONT I-BEAM AXLE
6
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020

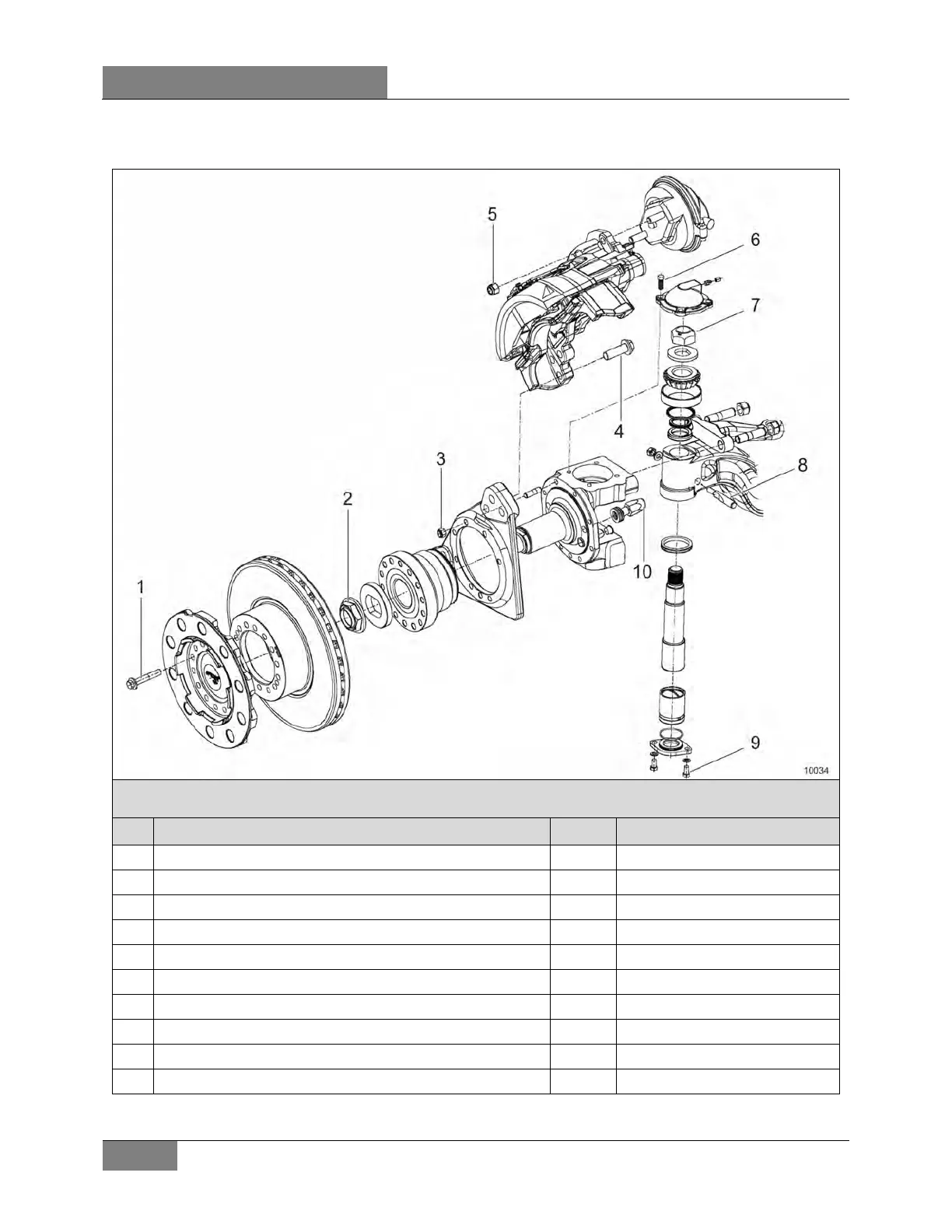

1.2 FRONT I-BEAM AXLE HUB, ROTOR AND BRAKES
HUB, ROTOR AND BRAKE
No DESCRIPTION QTY TORQUE (dry)
1 Hub Flanged Bolt 28 174-192 lb-ft (236-260 Nm)
2 Stake Hub Nut 2 575-626 lb-ft (780-849 Nm)
3 Caliper Bracket Nut – Self Lock 16 85-103 lb-ft (115-140 Nm)
4 Brake Caliper Mounting – Bolt 12 433-479 lb-ft (587-649 Nm)
5 Brake Chamber Nut – Self Lock 4 133-155 lb-ft (180-210 Nm)
6
Kingpin cover Screw
8
51-62 lb-ft (69-84 Nm)
7 Kingpin Nut – Self Lock 2 500-700 lb-ft (678-949 Nm)
8 Draw key, Nut 2 51-62 lb-ft (69-84 Nm)
9 Kingpin lower cover Screw 4 26-32 lb-ft (35-43 Nm)
10 Back & Front Lock - Stop Bolt 3 85-103 lb-ft (115-140 Nm)a
