Attach the protective wire.

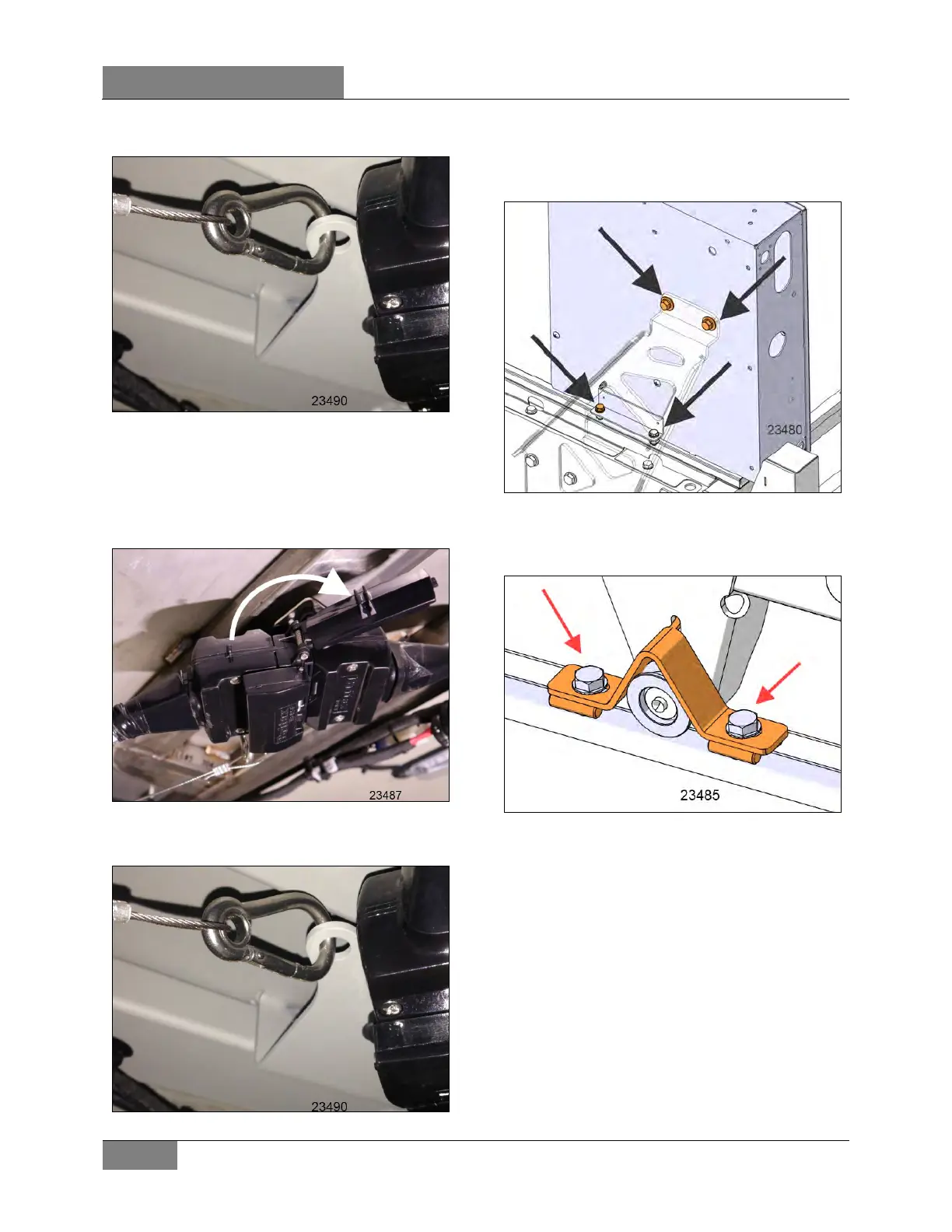

FIGURE 21: PROTECTIVE WIRE INSTALLATION
7. WHEELCHAIR LIFT CASSETTE
DISMOUNTING
Detach the protective wire. Unlock the
connectors. Unplug the electrical connectors.
FIGURE 22: ELECTRICAL DISCONNECTION
Detach the protective wire.
FIGURE 23: PROTECTIVE WIRE INSTALLATION
Dismount partially the control box (4 screws)
and tilt it slightly to allow the cassette to slide
outside the compartment.
FIGURE 24: CONTROL BOX DISMOUNTING
Remove locks in four locations and keep it with
the removed cassette.
FIGURE 25: LOCK REMOVAL
Slide out the cassette until the front rollers get
the stoppers. Install jacks on the front side of the
cassette. Lift up the front side of the cassette
until the front rollers clear the front stoppers.

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
