PREVOST X3-45 COMMUTER User Manual

SECTION 06: ELECTRICAL
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual Section 06 revised release October 2021
31

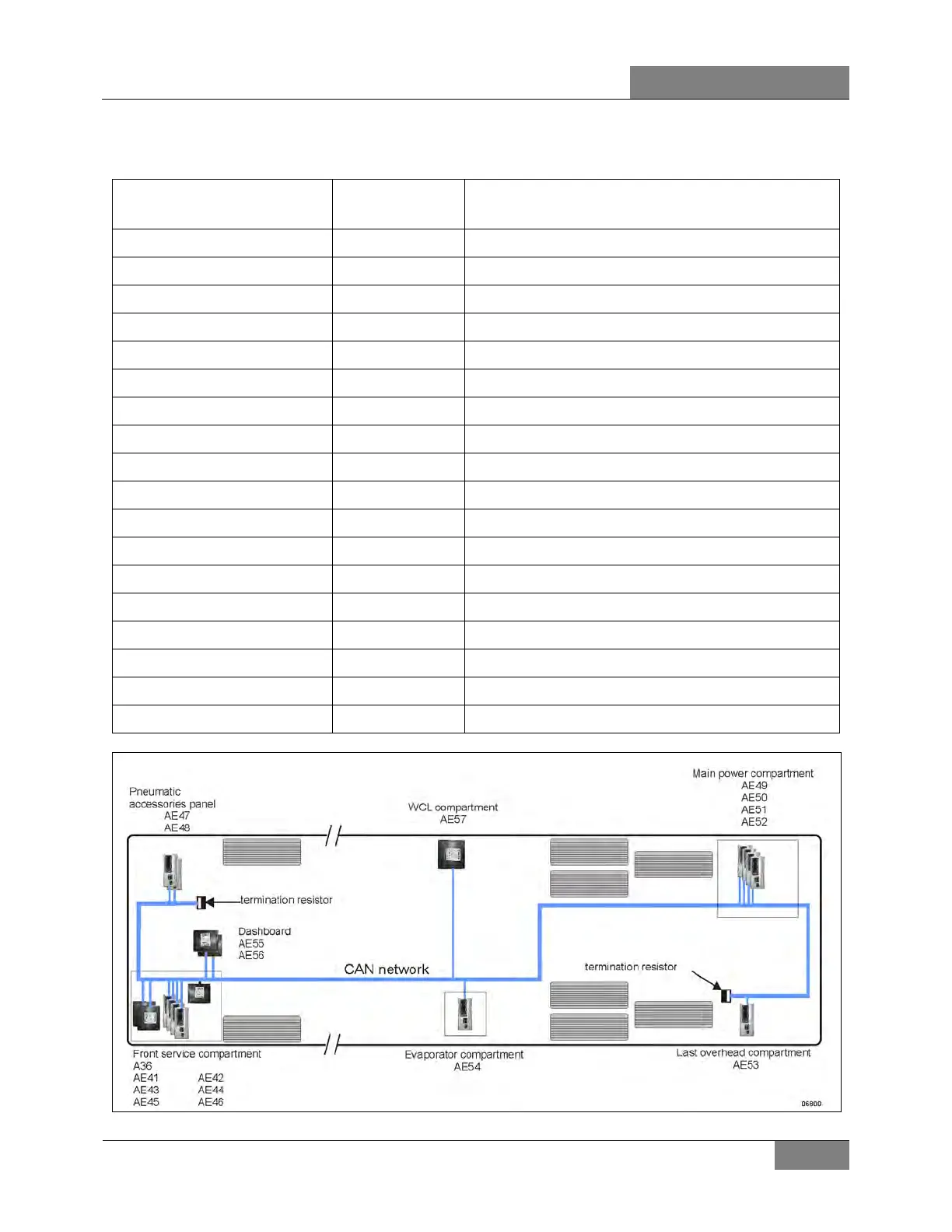

7.2 DL0 (BBUS MUX) NETWORK LAYOUT AND TROUBLESHOOTING
MUX MODULE
IDENTIFICATION
MODULE TYPE LOCATION
A36 MCM FJB
AE41 I/O-EA FJB
AE42 I/O-EA FJB
AE43 I/O-EB FJB
AE44 I/O-EB FJB
AE45 I/O-EB FJB
AE46 I/O-EB FJB
AE47 I/O-EB R.H. CONSOLE
AE48 I/O-EB R.H. CONSOLE
AE49 I/O-EB MAIN POWER COMPARTMENT
AE50 I/O-EB MAIN POWER COMPARTMENT
AE51 I/O-EB MAIN POWER COMPARTMENT
AE52 I/O-EB MAIN POWER COMPARTMENT
AE53 I/O-EB LAST OVERHEAD COMPARTMENT, L.H. SIDE
AE54 I/O-EB EVAPORATOR CMPT
AE55 I/O-EA DASHBOARD
AE56 I/O-EA DASHBOARD
AE57 I/O-EA WCL CMPT, ABOVE WHEELCHAIR LIFT
