PREVOST X3-45 COMMUTER User Manual

SECTION 11: REAR AXLES
4
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual Section 11 revised Jan 2021

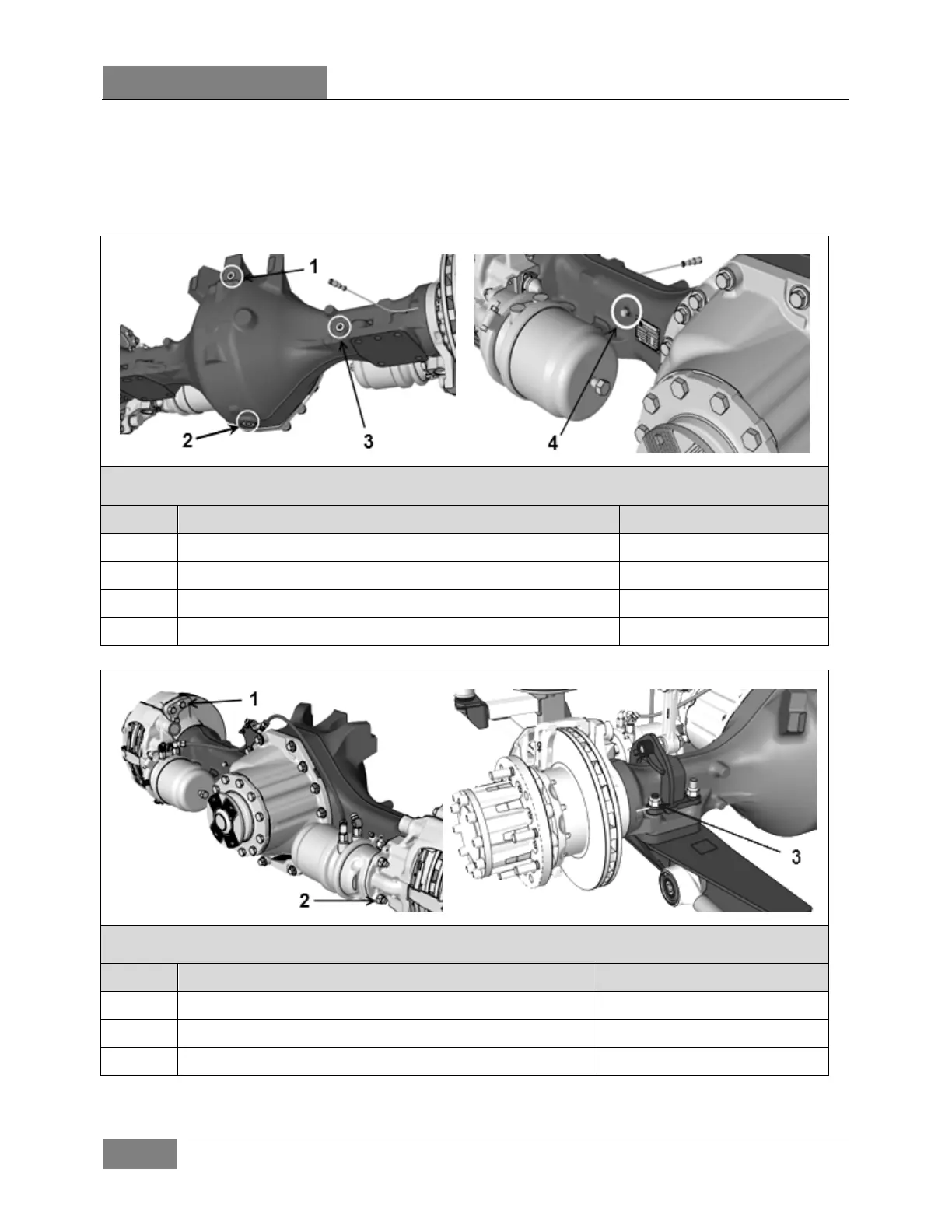

1. TORQUE TABLES
1.1 ZF A132 DRIVE AXLE
ZF A132 DRIVE AXLE
No DESCRIPTION TORQUE
1 Filler plug 52 lb-ft (71 Nm)
2 Drain plug 96 lb-ft (130 Nm)
3 Level check plug 52 lb-ft (71 Nm)
4 Breather 4 lb-ft (5 Nm)
ZF A132 DRIVE AXLE
No DESCRIPTION TORQUE
1 Caliper mounting bolts 200 lb-ft (271 Nm)
2 Brake air chamber mounting bolts 120-150 lb-ft (163-203 Nm)
3 Axle to frame mounting bolts 405-495 lb-ft (549-671 Nm)

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
