5. REMOVAL
WARNING
Read “Spicer Life Series Driveshaft Removal
Warnings and Cautions” in Spicer
Driveshaft’s Service Manual DSSM-0100.
5.1 PROPELLER SHAFT REMOVAL
1. Mark propeller shaft (phasing marks). It
is imperative to mark all the mating
components of a propeller shaft, as
illustrated below. Mark the propeller
shaft with a marking stick, paint marker
or other legible marking device. In
addition, be sure to mark all bearing
positions, spline positions and shaft
locations. This assures proper
reassembly of the propeller shaft into the
vehicle, in its original position.

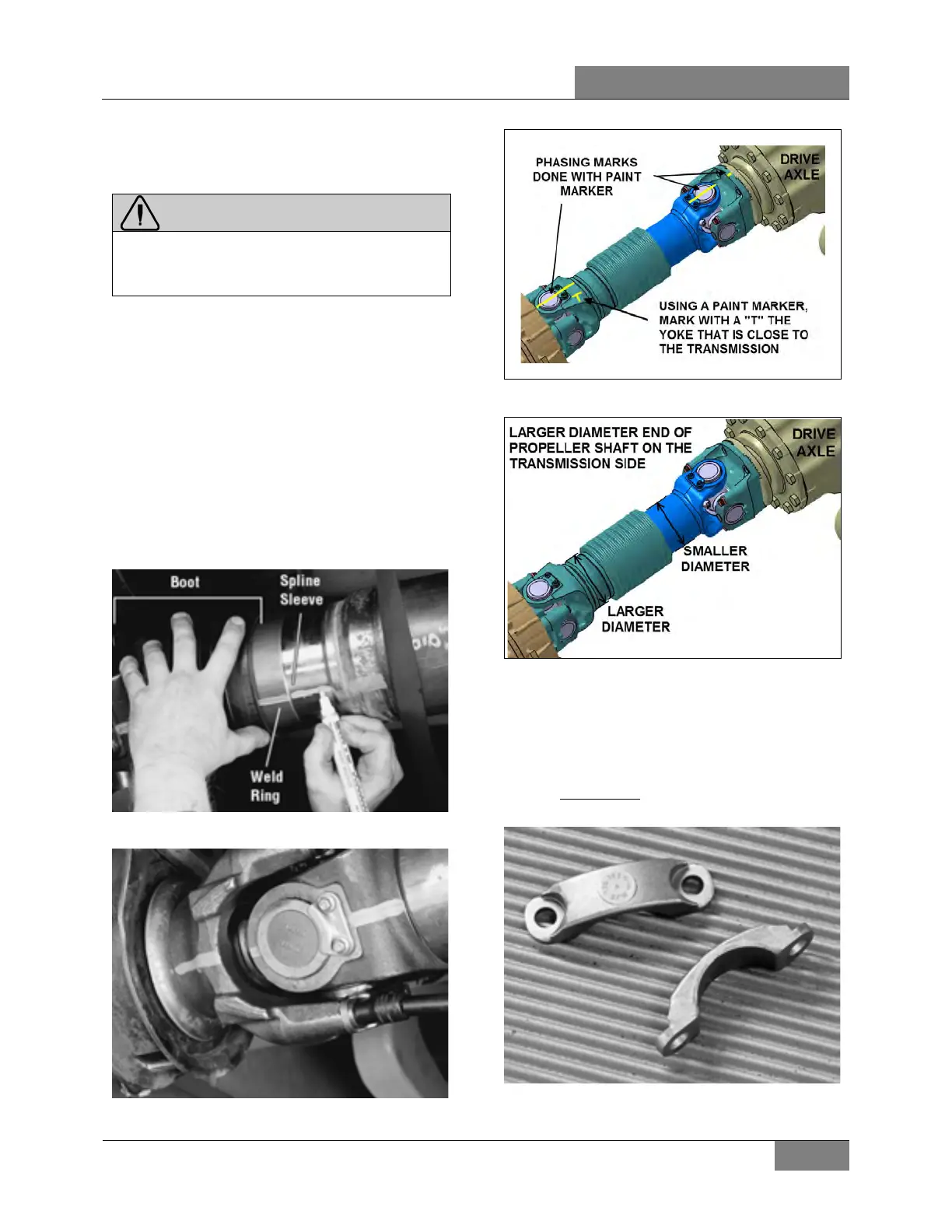

FIGURE 8: PHASING MARKS
FIGURE 9: PHASING MARKS
FIGURE 10: PHASING MARKS
FIGURE 11: PROPELLER SHAFT PROPER
ORIENTATION
2. Be sure to ALWAYS use support straps
to prevent the propeller shaft from falling
out of the vehicle.
3. Remove the bearing retainers and bolts
at rear end. Discard bolts, and bearing
retainers.
FIGURE 12: COLD FORMED BEARING RETAINERS
