SECTION 18: BODY
58
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
10.5 ZONE 5

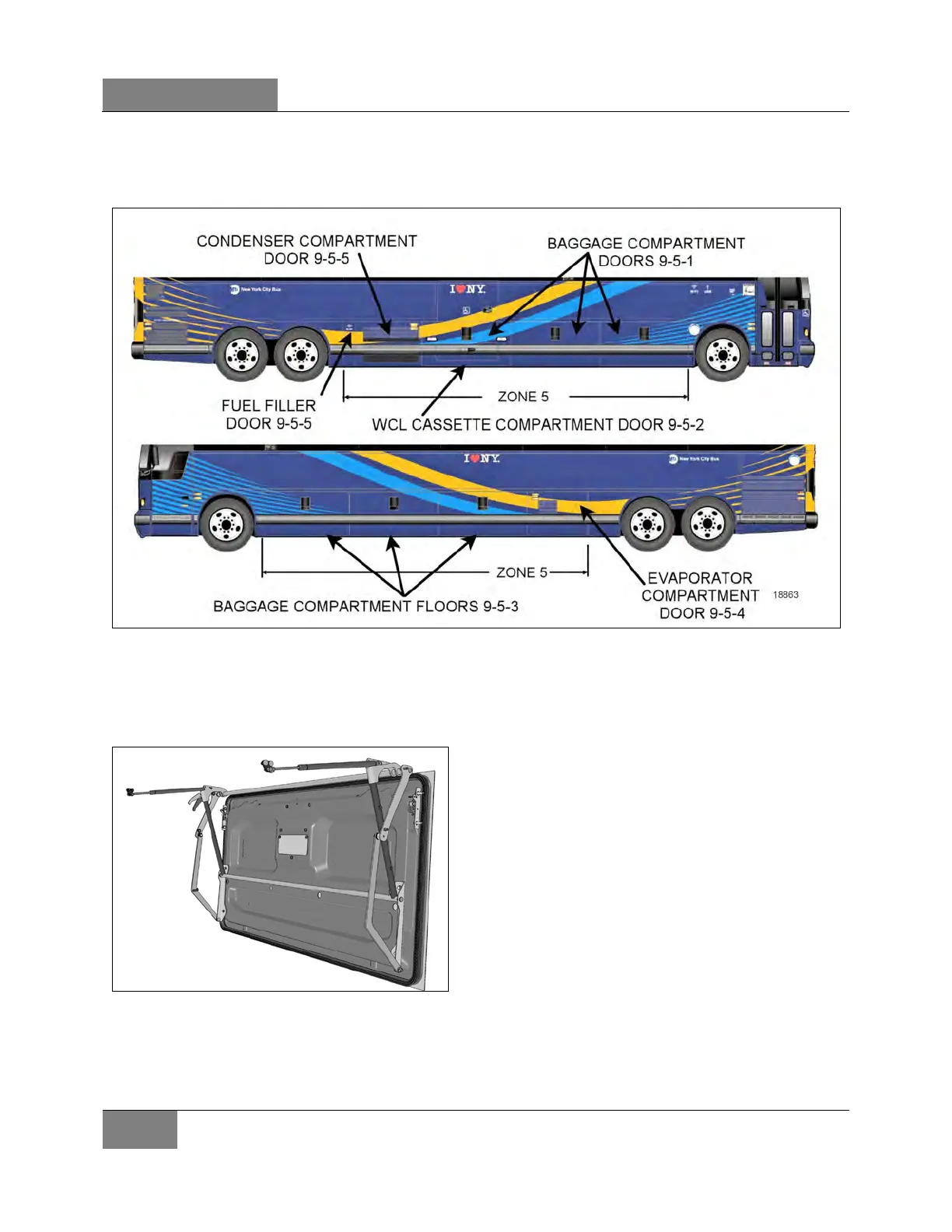

FIGURE 110: ZONE 5
10.5.1 Baggage Compartment Doors
FIGURE 111: BAGGAGE COMPARTMENT DOOR
For the removal and installation of a baggage
compartment door body panel, you will need:
A drill with drill bits;
Pneumatic hammer tool (Zip Gun);
Razor sharp window scraper or putty knife.
DOOR SKIN PANEL REPLACEMENT
1. Open damaged compartment door and
unfasten rub rail fixing bolts. Remove rub
rail.
2. Mark the position of the door bracket with a
marker for reinstallation.
3. Unfasten bolts (2 each side) and disconnect
cable if necessary in order to remove door
from vehicle.
