PREVOST X3-45 COMMUTER User Manual

SECTION 23: ACCESSORIES
22
DOB 1300-1556| X3-45 Commuter PA-1648 Maintenance Manual Section 23 revised Nov 2021

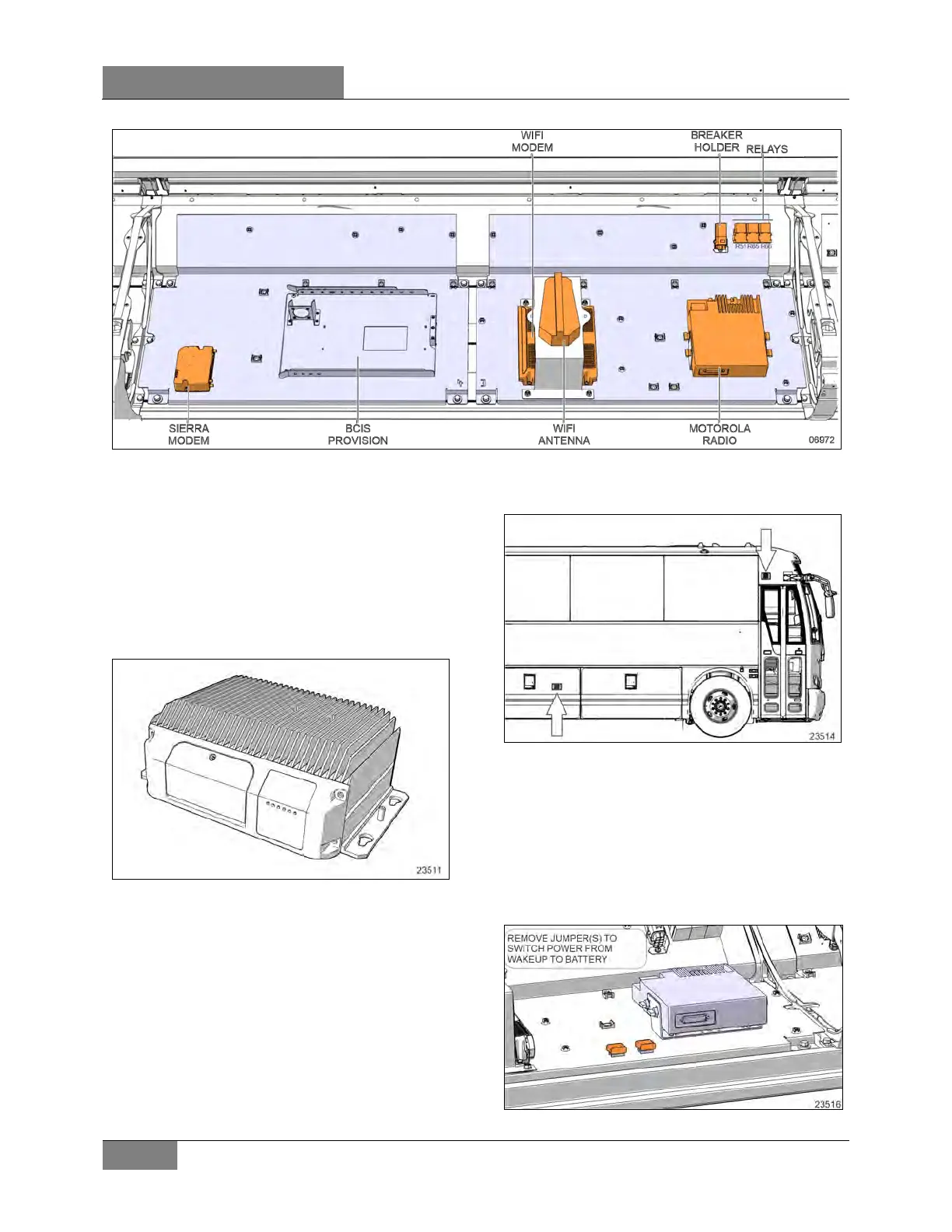

FIGURE 41: NYCT AUXILIARY SYSTEMS, PLATES 3 & 4
9.1 CLEVER DEVICE IVN5
Installed in the vehicle’s first left (road side)
overhead compartment, you will find an IVN5
module configured for the following features:
Automatic Vehicle monitoring®
Geo-Fenced Auto Regeneration Control
Public Service Announcement.
Pedestrian Turn Warning
FIGURE 42: IVN5 MODULE
The control head module is installed on the left
windshield post.
One interior speaker is located along the driver’s
right knee.
9.1.1 Pedestrian Turn Warning Speakers
Location
The system is using speakers located on both
sides of the vehicle and turns on automatically
when the vehicle speed is less than 10 mph (16
km/h) and the steering wheel is rotated at least
45 deg (a quarter turn) left or right.
FIGURE 43: PTW SPEAKERS, CURB SIDE SHOWN
9.2 MOTOROLA COMMUNICATION
RADIO POWER
The communication radio power can be supplied
either directly from the battery or from ignition.
To change the power mode to “battery power”,
disconnect the two connectors shown in Figure
below.
FIGURE 44: RADIO POWER MODE CHANGE

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
