SECTION 22: HEATING AND AIR CONDITIONING
4
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
1. TORQUE TABLES

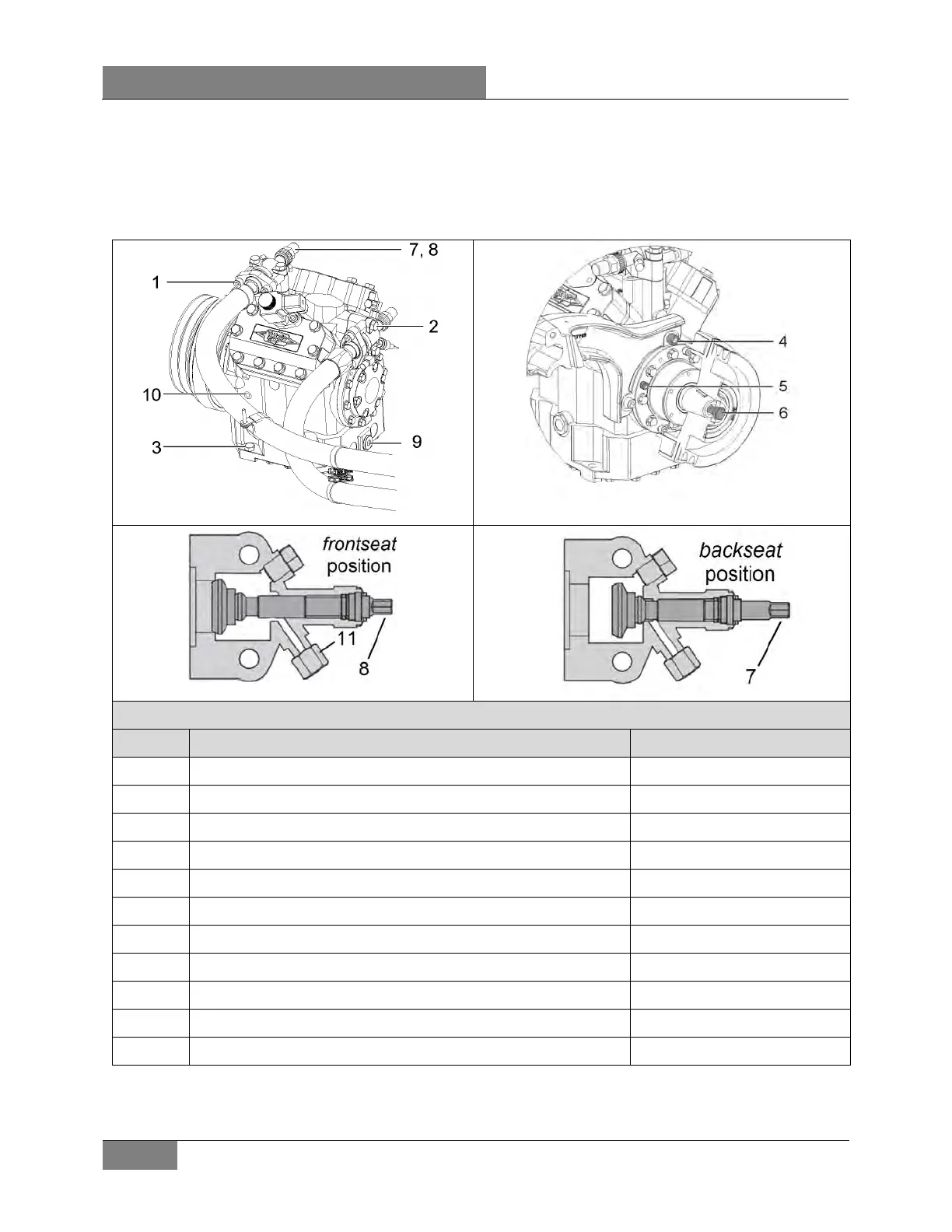

1.1 HIGH CAPACITY COMPRESSOR (CENTRAL HVAC SYSTEM)
22378_1
22379
22406
22407
HIGH CAPACITY COMPRESSOR (CENTRAL HVAC SYSTEM)
No DESCRIPTION TORQUE
1 Compressor flange connection screws 31-35 lb-ft (42-47 Nm)
2 Compressor discharge & suction port screws 38-42 lb-ft (52-57 Nm)
3 Compressor mounting bolts 82 lb-ft (111 Nm)
4 Support arm to compressor screws 38-42 lb-ft (52-57 Nm)
5 Clutch to compressor screws 20-24 lb-ft (27-33 Nm)
6 Clutch pulley to compressor shaft screw 58-62 lb-ft (79-84 Nm)
7 Compressor shutoff valve backseat position 12 lb-ft (16 Nm) max
8 Compressor shutoff valve front seat position 21 lb-ft (28 Nm) max
9 Magnetic drain plug 37-52 lb-ft (50-71 Nm)
10 Oil fill hole plug 15-17 lb-ft (20-23 Nm)
11 Service port 7/16-20 UNF 7.5 lb-ft (10 Nm) Max
