The small door has a piano type hinge on its
lower edge.
7. Install only two of the mounting screws, at
each end to adjust the door.

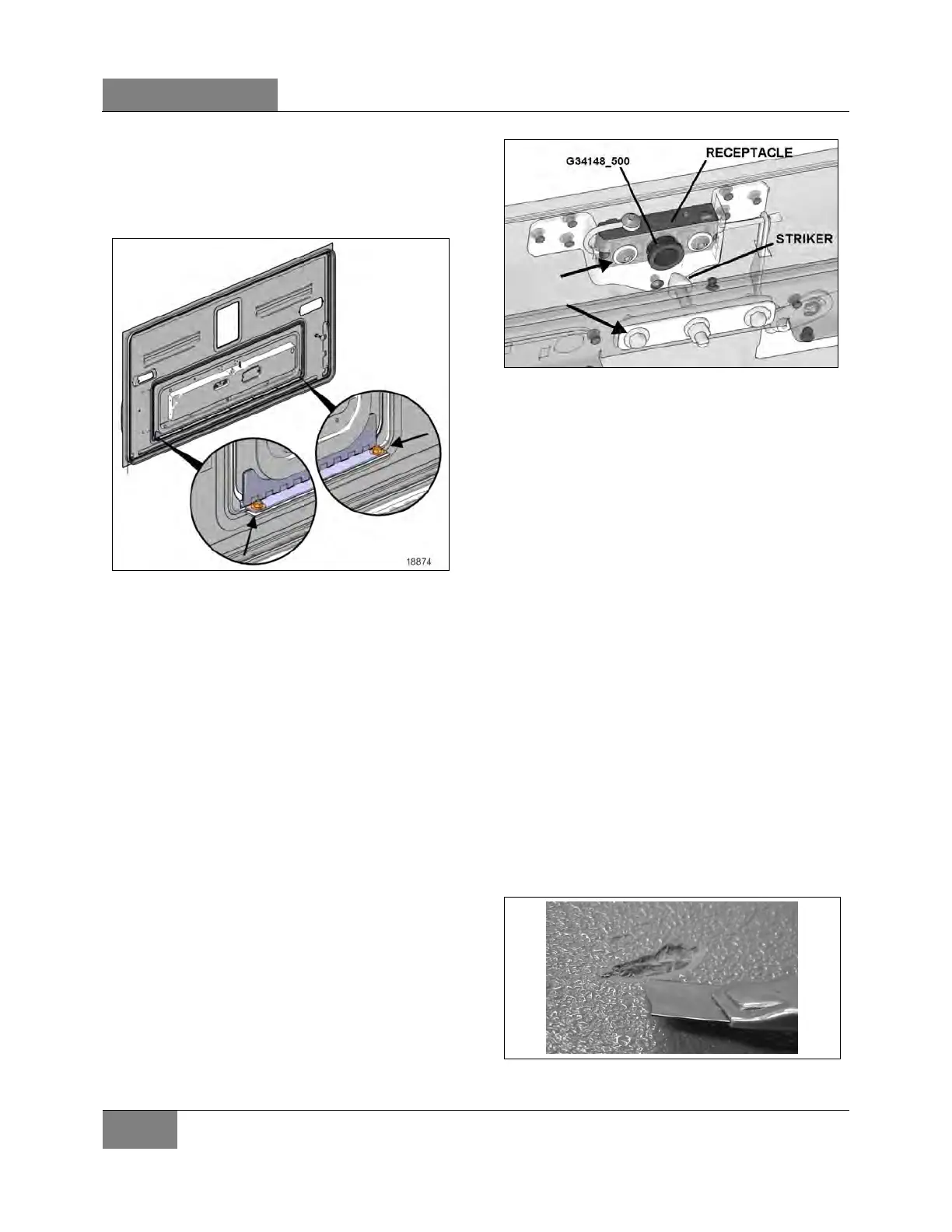

FIGURE 123: HINGE MOUNTING BOLTS
8. Close door and adjust in opening. A 1mm
maximum difference between left and right
measured gap is accepted.
9. Door should close flush with the larger door
panel. Maximum flatness deviation within
1mm.
10. Install the remaining screws and seal with
liquid Teflon #680098.
WCL Cassette Door latch adjustment
To allow adjustment of the latch mechanism,
lightly tighten the retaining hardware on
receptacle and striker support (arrows in Figure
124).
11. Place centering tool G34148_500 in the
receptacle cavity.
FIGURE 124: WCL CASSETTE DOOR LATCH
12. Close the door to center the latch
mechanism.
13. Tighten screws.
14. Check that the door swings freely and closes
properly without interference or excessive
force.
10.5.3 Baggage Compartment Floors
• Repair of Mantex Urethane Covering
Minor Repair
Use “Dupont IMRON” paint. Apply using a paint
brush or roller depending on gravity.
Paint Code: #J4099U
Major Repair (Hole)
Chamfer the whole perimeter of the damaged
area. If applicable, remove loose covering.
Remove dust and particles.
Cover and protect damaged area surroundings.
