SECTION 06: ELECTRICAL
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual Section 06 revised release October 2021
77
3. Position the new unit and maintain a
pressure on the unit to compress the rubber
seal. Tighten the “Phillips” screws.

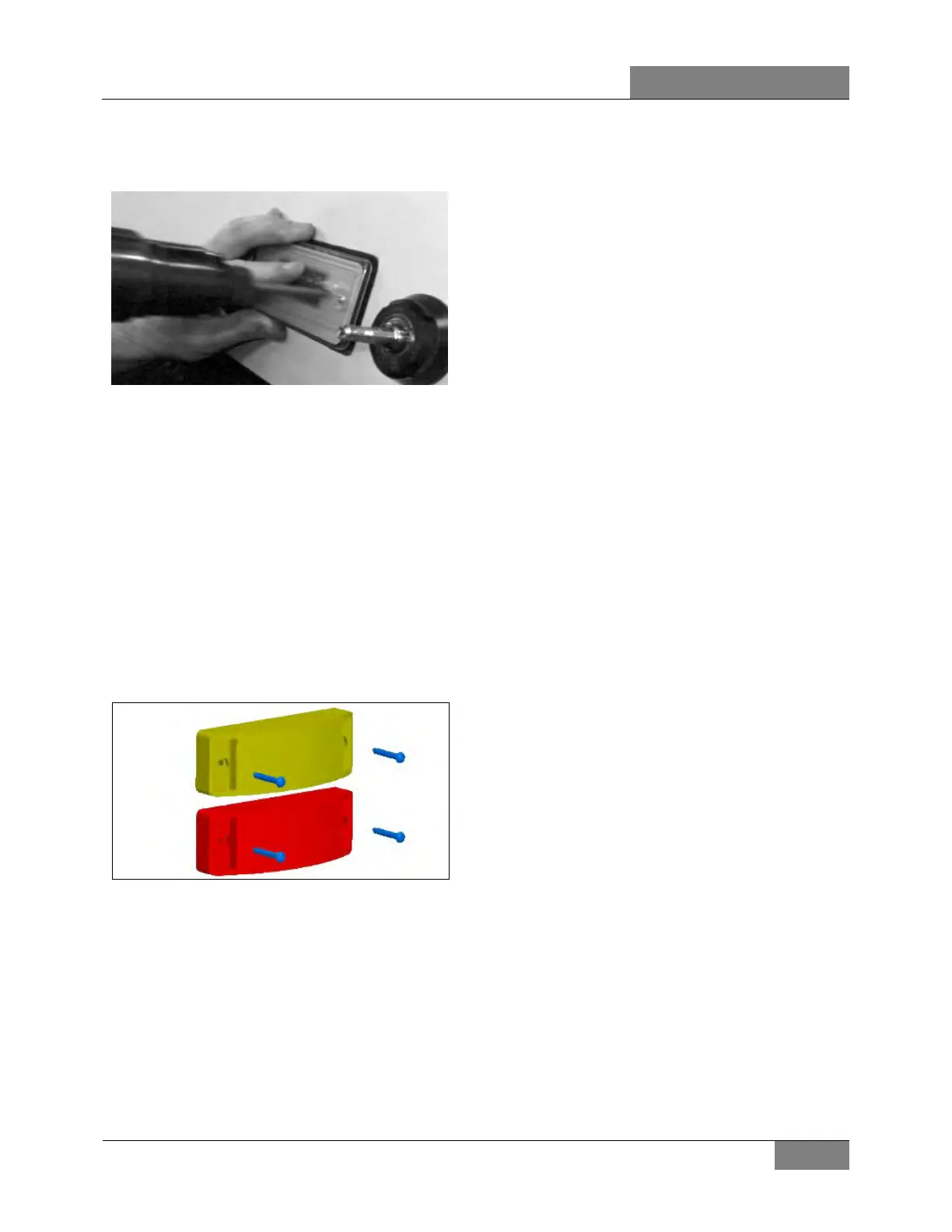

FIGURE 74: CLEARANCE/IDENTIFICATION LIGHTS
15.6.2 Marker Lights Removal and
Replacement
The amber and red marker lights are mounted
along the sides of vehicle.
The side marker light is a sealed unit (LED) and
should be replaced as an assembly in
accordance with the following procedure:
1. Unscrew both “Phillips” screws, and then
remove the marker light unit. Unplug the
connector.
2. Plug the connector to the new marker light
unit. Position the new light assembly and
tighten the “Phillips” screws (19 lbs-in).
FIGURE 75: SIDE MARKER AND SIDE DIRECTIONAL
LIGHTS
15.7 DOCKING AND CORNERING
LIGHTS
This vehicle is provided with two halogen
sealed-beam units that serve as cornering lights.
They are mounted on the vehicle as follows: one
is mounted on the front L.H. side service
compartment door, while the other is located
between the front wheel and the entrance door
on the R.H. side. The main function of these
lights is to increase lateral visibility when turning
a corner. These lights are energized
simultaneously with the directional lights. On the
V.I.P. model, a dashboard-mounted rocker
switch may be actuated to cancel this system in
special situations.
Two additional halogen sealed-beam units are
installed on rear electrical compartment door
(R.H.) and radiator door. These lights are used
as docking lights and both will illuminate
automatically when reverse range is selected to
facilitate back-up or docking procedure.
On the V.I.P. model, these lights do not operate
automatically when the reverse range is
selected, but by means of a dashboard-mounted
rocker switch. When actuated, the docking as
well as the cornering lights illuminate.
Furthermore, a “Low docking” switch, also
located on dashboard, allows the use of the
docking and cornering lights at a lower intensity
when the docking switch is actuated.
15.7.1 Lamp Removal And Replacement
Both docking and cornering sealed-beam units
can be changed in accordance with the following
procedure:
1. Remove the two “Phillips” screws attaching
the retaining ring.
2. Disconnect the light unit connection.
3. Remove the lamp.
4. Position new lamp.
5. Connect and position the light unit.
6. Finally, install the retaining ring and screw.
15.8 BAGGAGE COMPARTMENT, MAIN
POWER COMPARTMENT LIGHTS
This type of compartment light is a sealed unit
(LED) and can be replaced as a complete unit.
It is found in the following locations:
• Baggage compartments
• Main power compartment
