PREVOST X3-45 COMMUTER User Manual

Mi14-01E Page 27 / 38 Rev: Oct 2021
2.2.3 Second Lift - Front Axle as Lifting Point for Towing
This method uses the front axle as lifting point for towing (see Figure 12 to FIGURE 15).
1. Perform the first lift as instruc
ted in
paragraph 2.2.1 if not already done.

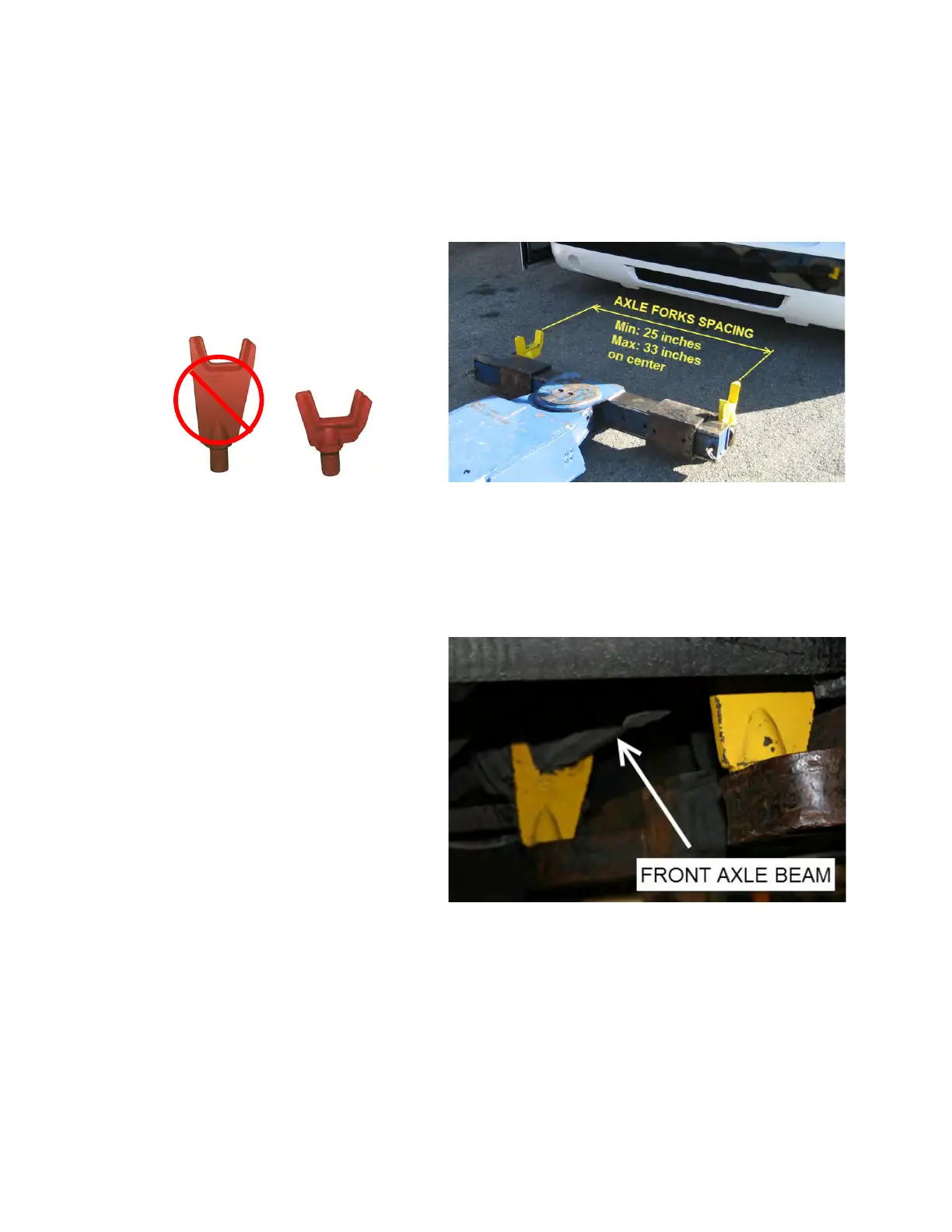

2. Install regular
axle forks onto tow bar
fork holders.
TALL REGULAR
Pre-
adjust spacing between axle
forks
Minimum spacing: 25 inches
Maximum spacing: 33 inches
Figure 50
3. Lower the stinger arm to positi
on the
axle forks under the front axle hoisting
points (
Figure 12 TO FIGURE 15).
4. Lift the tow bar until the axle forks grab
the front axle I-
beam at the hoisting
points (Figure 51 & Figure 52).
5. Raise the front of the bus.
Figure 51

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
