PREVOST X3-45 COMMUTER User Manual

Mi14-01E Page 22 / 38 Rev: Oct 2021

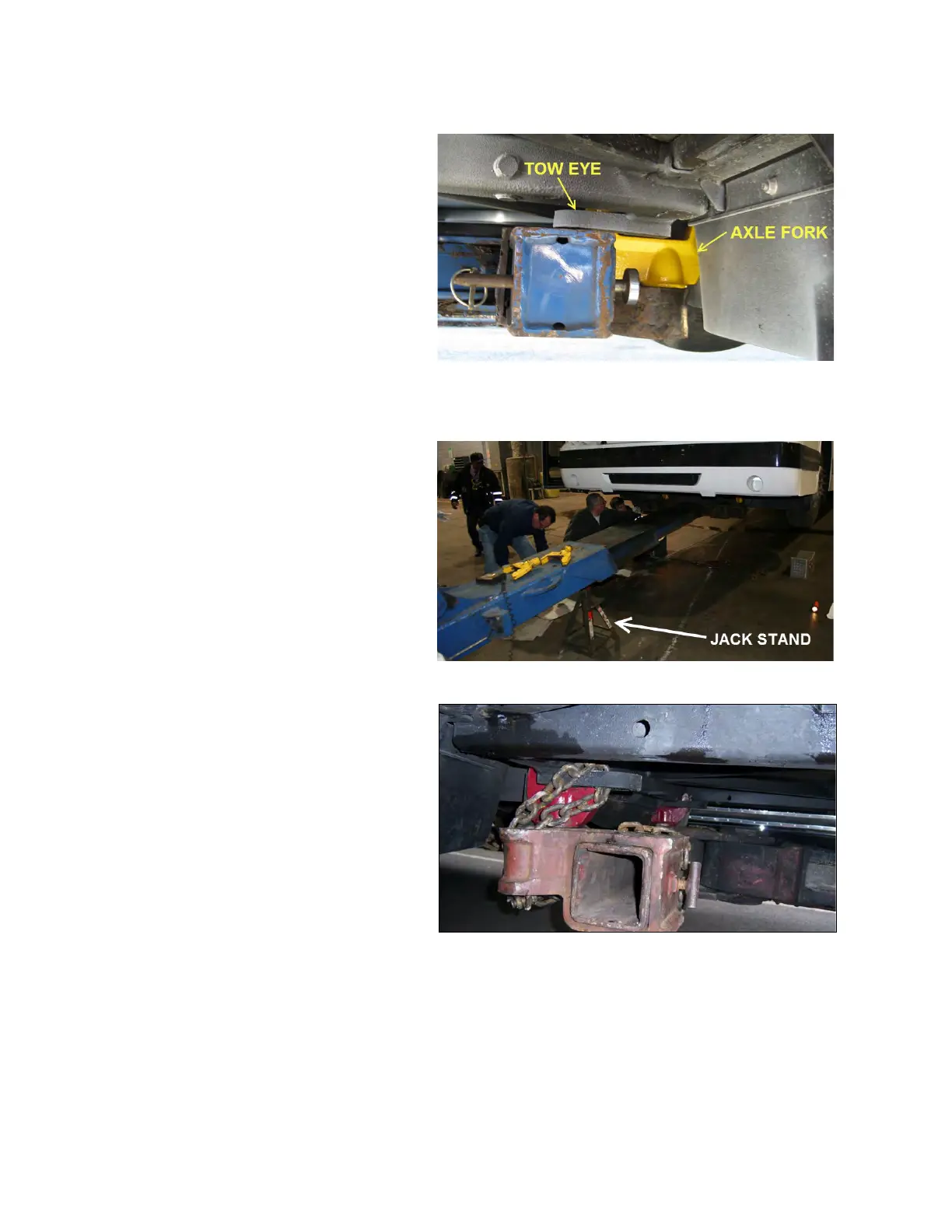

Figure 38
6. Raise the front of the bus.
7. Install a jack stand under the stinger
arm for support and safety purposes
and then lower the stinger arm so it
rests on the jack stand (Figure 39
).
The tow cans or blocks can be
removed from under the front axle
wheels.
Figure 39
8. Tie the two choke chains together to
secure the tow eyes to the tow bar
attachment through the outer fork
receptacles (Figure 40).
Figure 40: DOB BUS NUMBER SERIES 2400–2489 & 2490–2789
CHOKE CHAINS ROUTING

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
