PREVOST X3-45 COMMUTER User Manual

Mi14-01E Page 20 / 38 Rev: Oct 2021

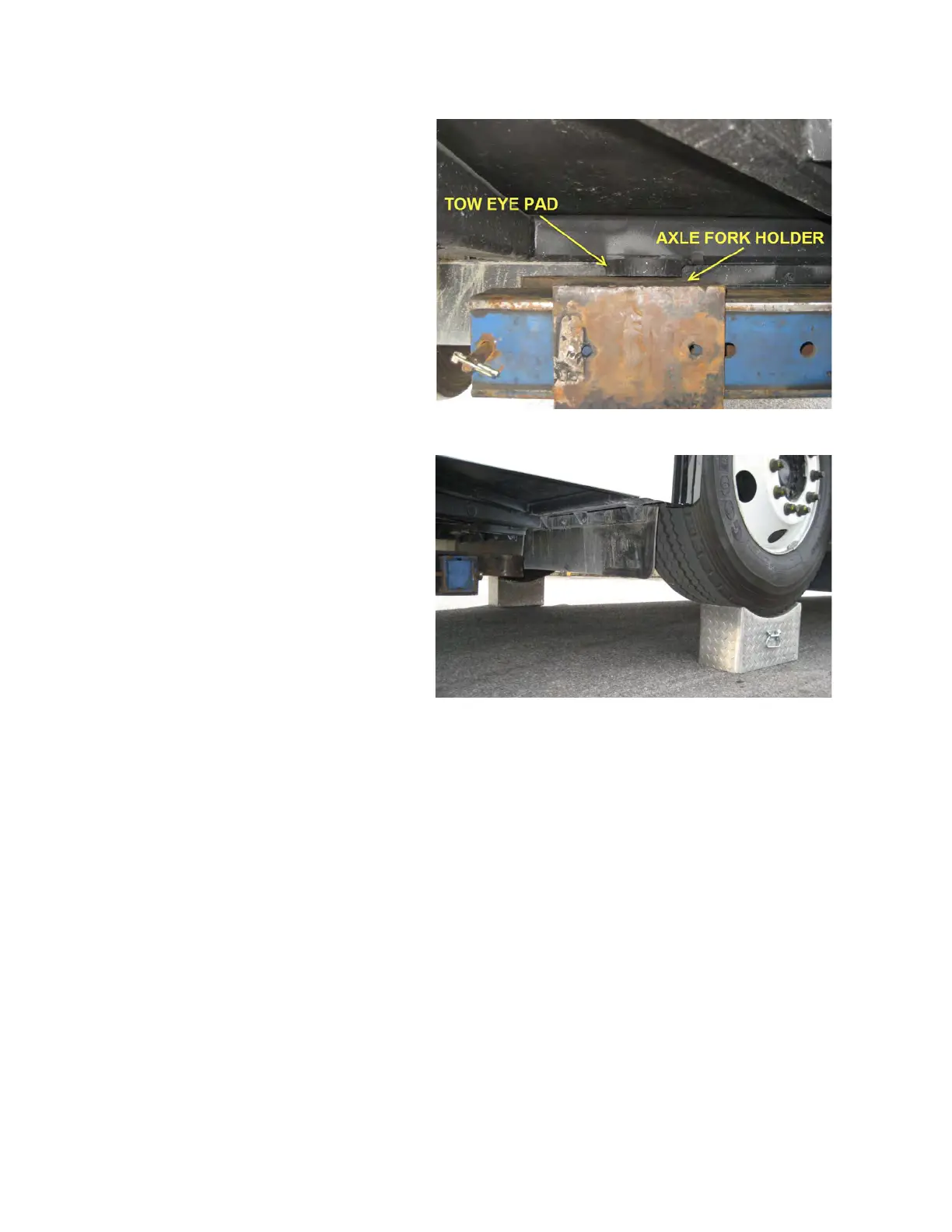

3. Deploy the tow truck
stinger arm,
placing the axle fork holders under
the tow eye pads (Figure 33).
Figure 33
4.
Lift the front end of the bus high
enough to allow installation of tow
cans or blocks. Place the tow cans or
blocks perfectly centered underneath
each front wheel (
Figure 34).
5. With precaution, lower the front of the
bus
Figure 34

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
