SECTION 10: FRONT I-BEAM AXLE
8
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020

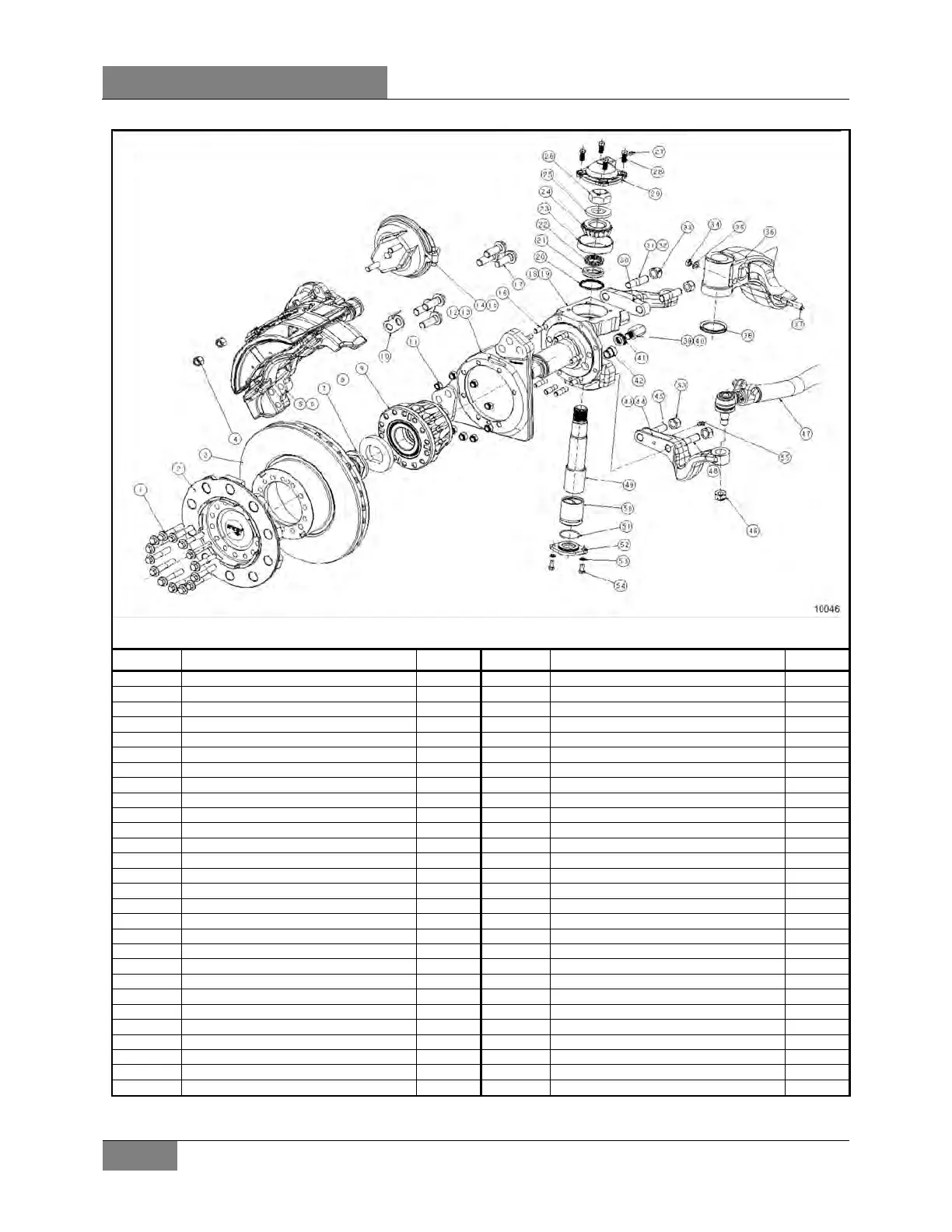

TYPICAL S84U AXLE
ITEM
DESCRIPTION
QTY
ITEM
DESCRIPTION
QTY
1
Flanged Bolt
28
29
Cap - Knuckle Top
2
2
Hub
2
30
Top Steering Lever
1
3
Brake Disc
2
31
Top Steering Lever - Stud L.H.
2
4
Nut – Self Lock
4
32
Top Steering Lever - Stud R.H.
2
5
Brake L.H.
1
33
Nut - Self Lock
8
6
Brake R.H.
1
34
Drawkey - Nut
2
7
Stake Nut
2
35
Drawkey - Washer
2
8
Collet Washer
2
36
Beam - Axle
1
9
Hub Bearing
2
37
Drawkey
2
10
Wear Sensor Clip
2
38
V Ring Seal
2
11
Nut – Self Lock
16
39
Back Lock - Stop Bolt
2
12
Brake Mounting Bracket L.H.
1
40
Front Lock - Stop Bolt
1
13
Brake Mounting Bracket R.H.
1
41
Stop bolt - washer
4
14
Actuator L.H.
1
42
ABS Sensor - Bush
2
15
Actuator R.H.
1
43
Bottom Steering Lever L.H.
1
16
Stud
16
44
Bottom Steering Lever R.H.
1
17
Brake fixing - Bolt
12
45
Bottom Steering Lever - Stud
2
18
Knuckle L.H.
1
46
Nut - Self Lock (Tie Rod)
2
19
Knuckle R.H.
1
47
Socket & Tie Rod Assy
1
20
Oil Seal
2
48
Socket Assy R.H.
2
21
Sleeve - Knuckle Bearing
2
49
Socket Assy L.H.
2
22
Shim
A/R
50
Kingpin - Bushing
2
23
Bearing Cup
2
51
O Ring Seal
2
24
Bearing Cone
4
52
Kingpin
2
25
Washer (Collet)
1
53
Washer
2
26
Nut – Self Lock
2
54
Cap - Knuckle Bottom
2
27
Lub Nipple (Straight)
2
28
Screw
2
