PREVOST X3-45 COMMUTER User Manual

SECTION 13: WHEELS, HUBS AND TIRES
16
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual | Section 13 revised Jan 2022

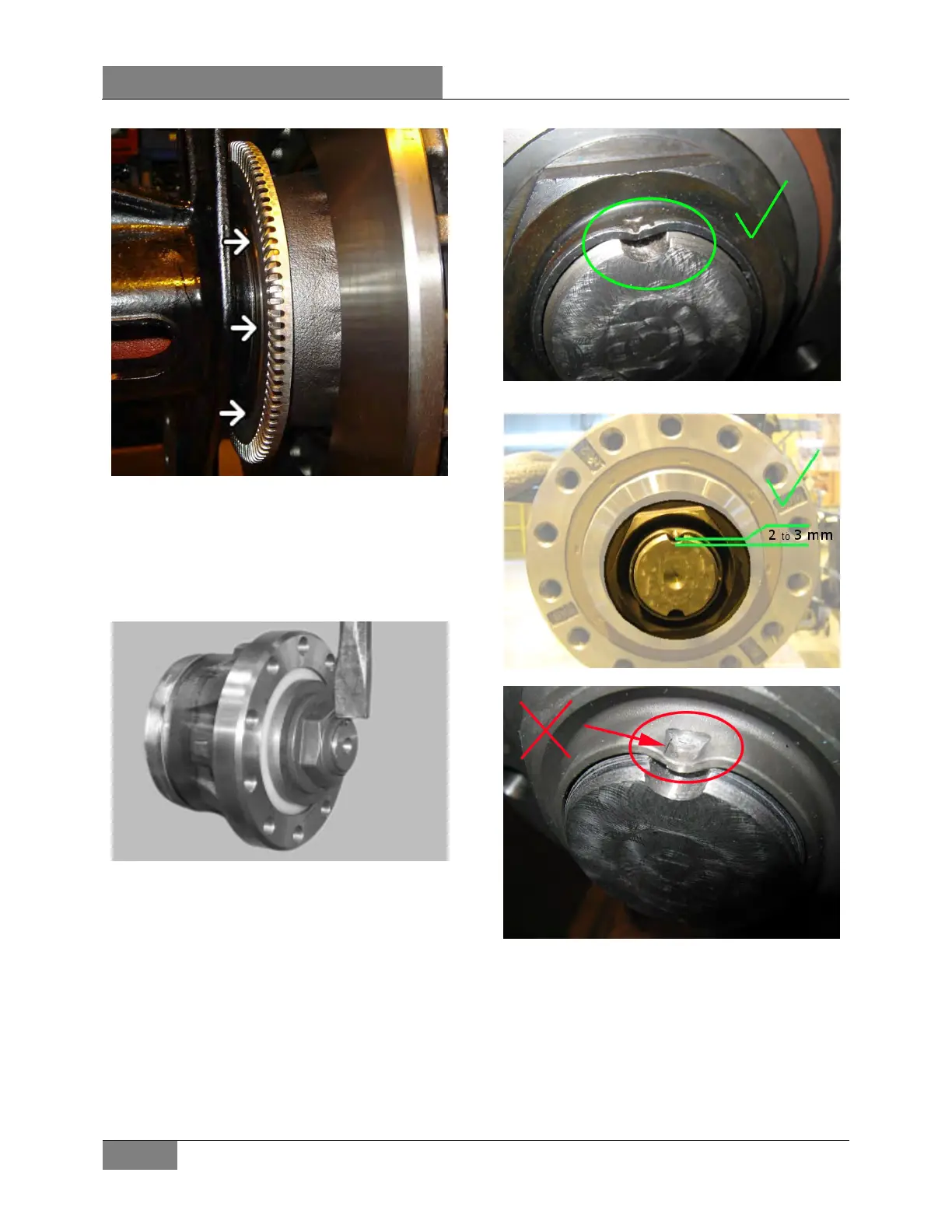

FIGURE 21: NO PLAY BETWEEN THE BEARING AND
THE SPINDLE SHOULDER
10. Check the unitized bearing end play. Refer
to paragraph 9.1 Tag Axle Bearing
Inspection.
11. Stake the hub nut by deforming with a round
nosed chisel.
FIGURE 22
FIGURE 23: CORRECT - PREVENTS THE NUT FROM
GETTING LOOSE
FIGURE 24: CORRECT – 2 to 3 mm / 0.078 to 0.118 in
FIGURE 25: BROCKEN OR TORN LIP – REJECTED

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
