PREVOST X3-45 COMMUTER User Manual

IS-20913A
Page 10 / 13
Writer: EL <QF7720959 rev 5>

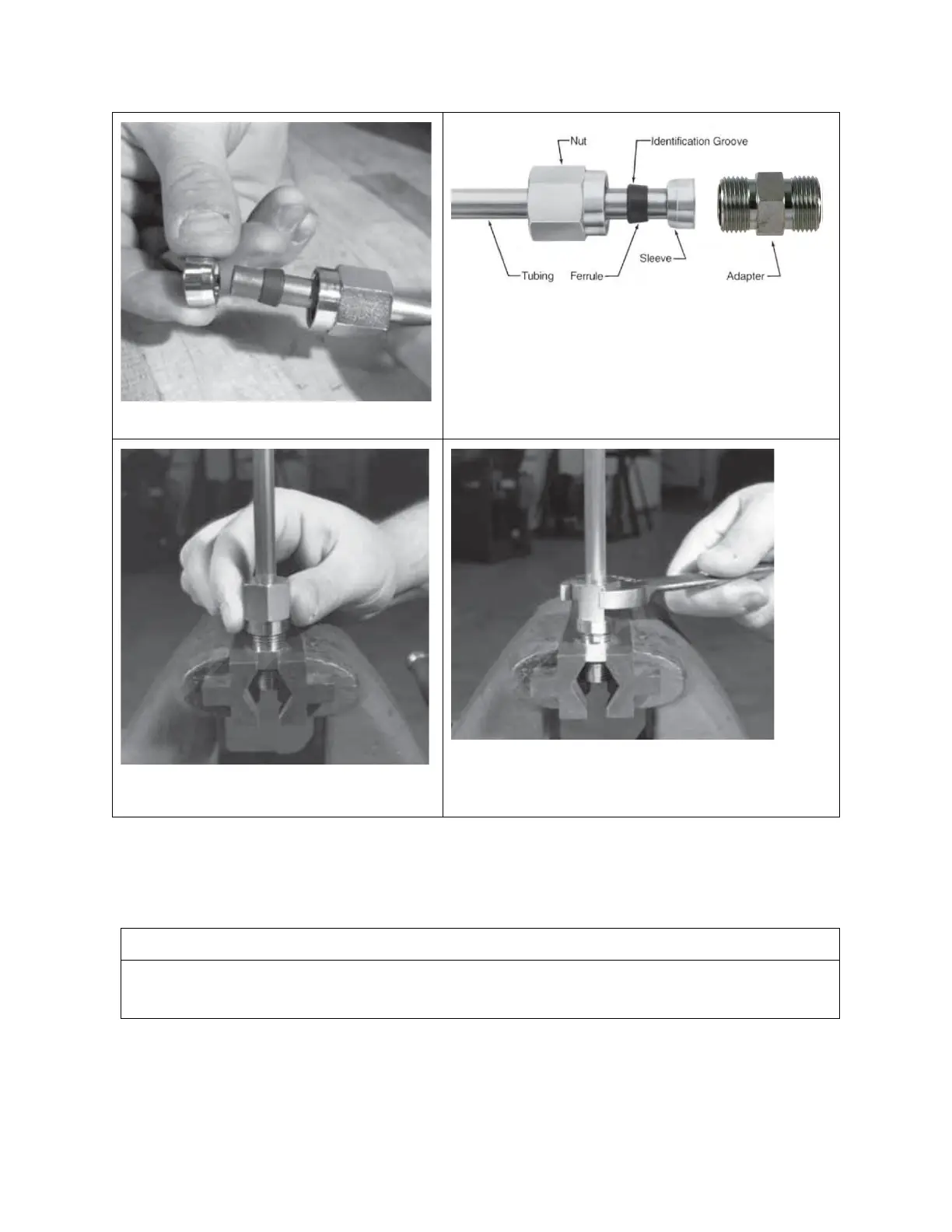

FIGURE 15: PLACE A NUT, FERRULE AND SLEEVE
ONTO TUBING
FIGURE 16
FIGURE 17: ASSEMBLE THE NUT TO THE ORS-ORS
ADAPTER UNTIL HANDTIGHT (IMAGE NOT SHOW-
ING REAL BUS CONDITION)
FIGURE 18: MARK THE NUT IN RELATION WITH THE ORS-ORS
ADAPTER AND TIGHTEN 1 ½ TURNS WITH A WRENCH (IMAGE
NOT SHOWING REAL BUS CONDITION)
6. Add a torque seal mark across the fittings once properly tighten.
NOTE
The ORS-TF tube assemblies are designed for re-use and can be reinstalled by tightening the
nut until a sharp increase in resistance is felt (approximately 1/4 turn beyond “hand-tight”).

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
