PREVOST X3-45 COMMUTER User Manual

SECTION 18: BODY
DOB 1300-1556 | X3-45 Commuter PA-1648 Maintenance Manual First release Oct 2020
31

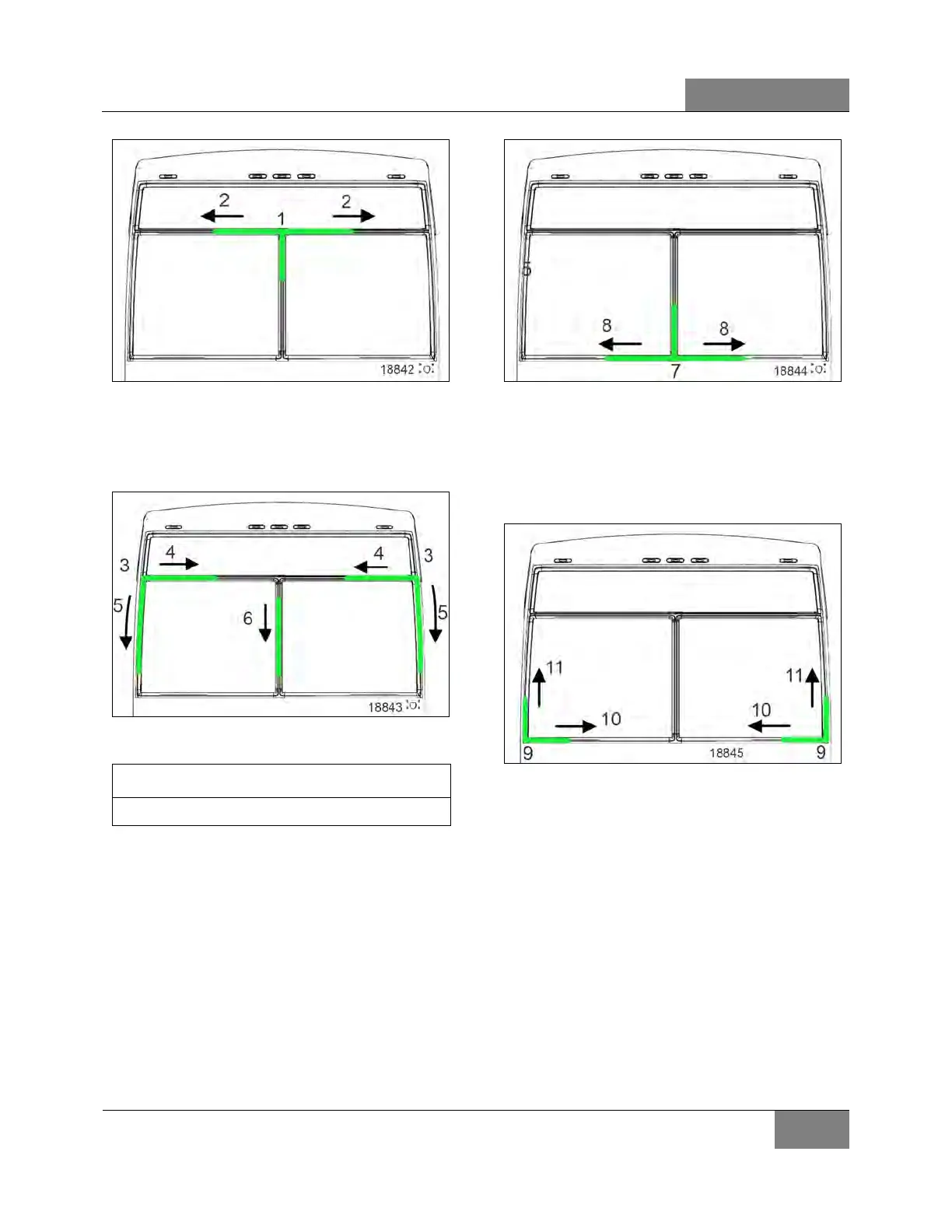

FIGURE 35: STEPS 1 AND 2
8. Bend the corner on both sides (step 3).
9. Fit the seal toward the center and downward
(steps 4 and 5).
FIGURE 36: STEPS 3 TO 6
NOTE
Use soapy water for the next steps.
10. Fit the seal on the center pillar (step 6).
11. Insert the black seal in lower center (step 7).
12. Fit the seal toward the sides (step 8).
FIGURE 37: STEPS 7 AND 8
13. Bend the corners on both sides (step 9).
14. Complete installation of the lower part of the
seal (steps 10 and 11).
FIGURE 38: STEPS 9 TO 11
15. Bend corner on both sides of the upper
section (step 12).
16. Complete installation of the upper section of
the seal (steps 13 and 14).

PREVOST X3-45 COMMUTER Specifications

General

Engine	Volvo D13
Transmission	Allison B500
Fuel Type	Diesel
Length	45 ft (13.7 m)
Width	102 in (2.6 m)
Horsepower	500 hp
GVWR	54, 000 lbs
Height	141 in
