NFC Card Reader Type M27 (M502-10)
D0AP/D0C4/D0C5/D0C6/M0BQ/M0D1 2-56 SM

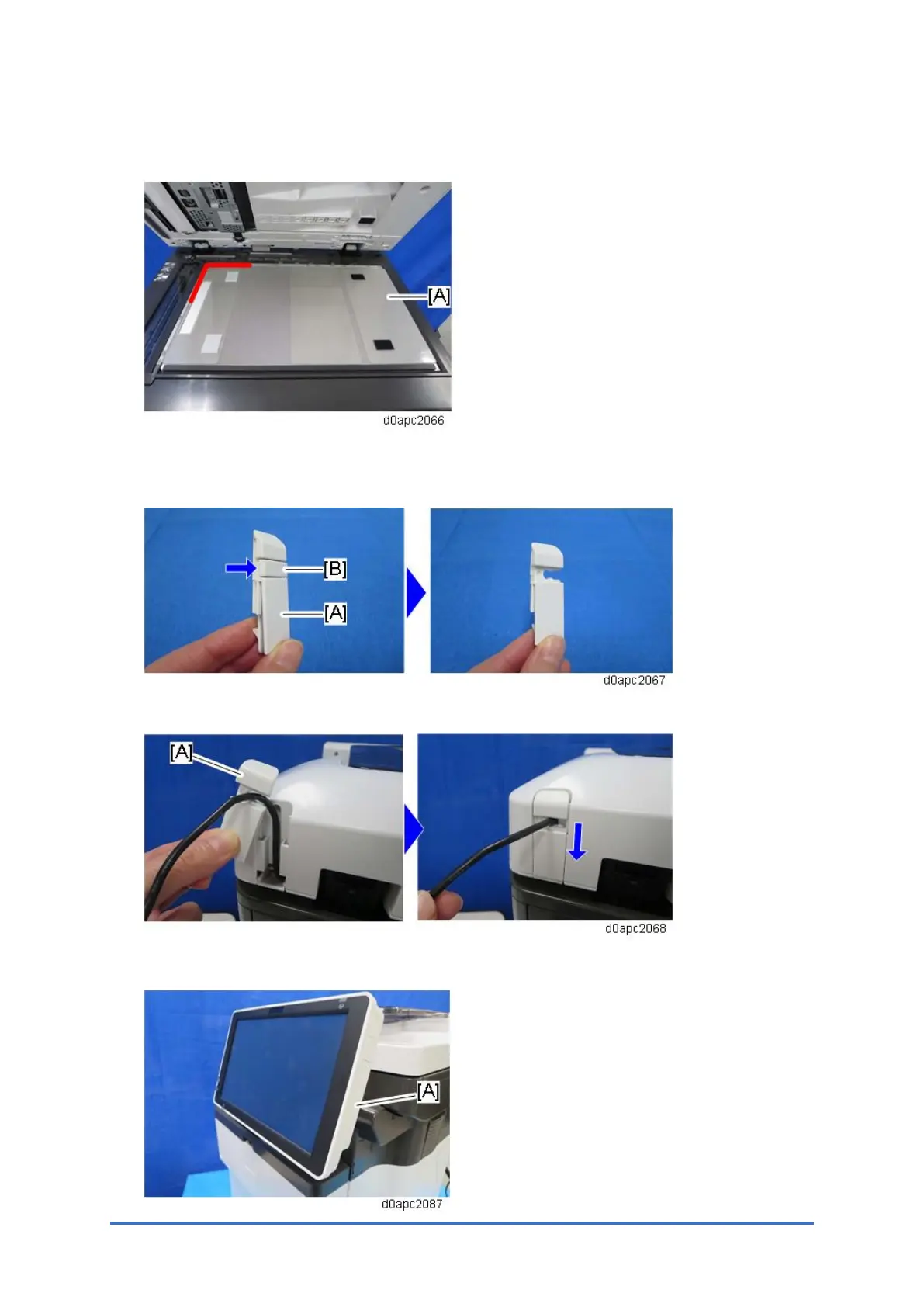

14. Using the rear, left corner as a reference point set the platen sheet [A] on the exposure
glass.
15. Close the SPDF to attach the platen sheet.
16. From small cover [A] remove knock-out [B] to create a slot.
17. Pass the USB cable through the hole, and then attach the small cover [A].
18. Remove the side cover [A] of the operation panel.
