Shimadzu GC-2010 Plus User Manual

14 Diagnosis
14.1 Standard Diagnosis
176
GC-2010 Plus
14.1.3 Diagnosis Parameters
Press [Diag Param] (PF menu) from the Standard Diagnosis main screen to display the
Diagnosis Parameters screen shown in Fig. 14.1.2.
Select the items to be checked during the self-test.

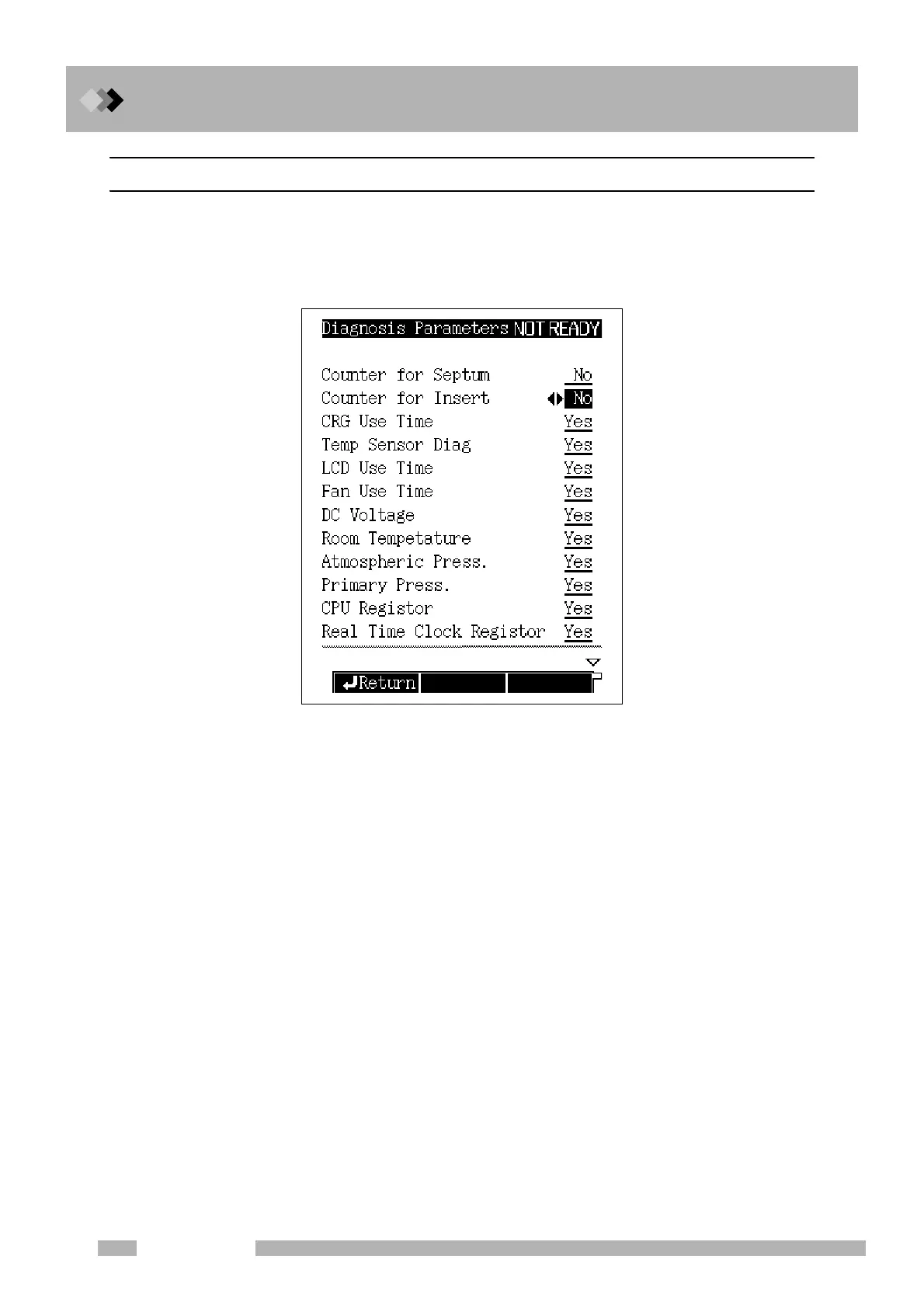

Fig. 14.1.2 Diagnosis setup screen

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
