Shimadzu GC-2010 Plus User Manual

14 Diagnosis
14.2 Log Reading Menu
189
GC-2010 Plus
14.2.7 Diagnostic log
When “5. DIAGNOSTIC LOG” is selected, the resulst of the standard diagnosis are
displayed. The results of the last diagnosis are shown in the [Details] (PF menu) screen
described in “14.1 Standard Diagnosis”.
(1) Screen description
Select “2. LOG READING MENU” from of the [DIAG] key main screen, then select “5.
DIAGNOSTIC LOG”. The screen shown in Fig. 14.2.7 appears.
Up to 50 logs are saved. If the number of logs exceeds 50, existing logs are deleted
starting from the oldest.
NOTE If there are more items than items than can be displayed on one screen, scroll through the screen
using the left and right arrow keys.
(2) PF menu

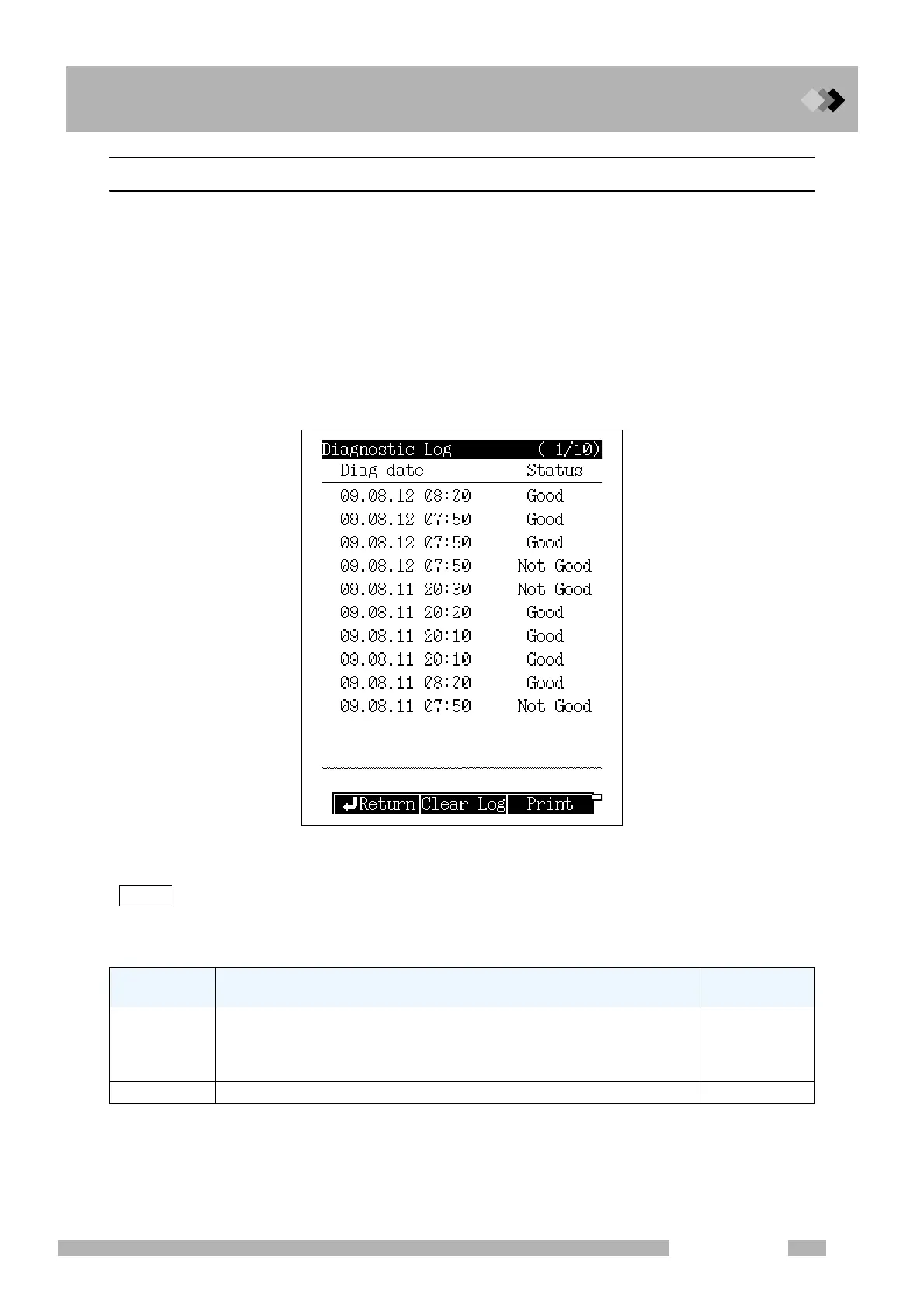

Fig. 14.2.7 Diagnosis log screen
PF menu Description
Reference
section
Clear Log
Deletes all displayed logs.
When [Clear Log] (PF menu) is pressed, the screen changes and the
message “Clear log with PF2” appears. Press [Clear Log] (PF menu) to
clear the log.
――
Print Prints the diagnosis log to a Chromatopac.
――

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
