9.3Monitoring the Flow Rate with [Flow Mon]
9.3.1 Screen description
Press [Flow Mon] (PF menu) from the [MONIT] key main screen to display the Flow Monitor
screen shown in Fig. 9.3.1.
Monitor the flow rate and the pressure of the injection ports, and the detector gas flow rates
of the detectors.
NOTE Flow controllers that have hot been installed are not displayed on the screen.
9.3.2 PF menu

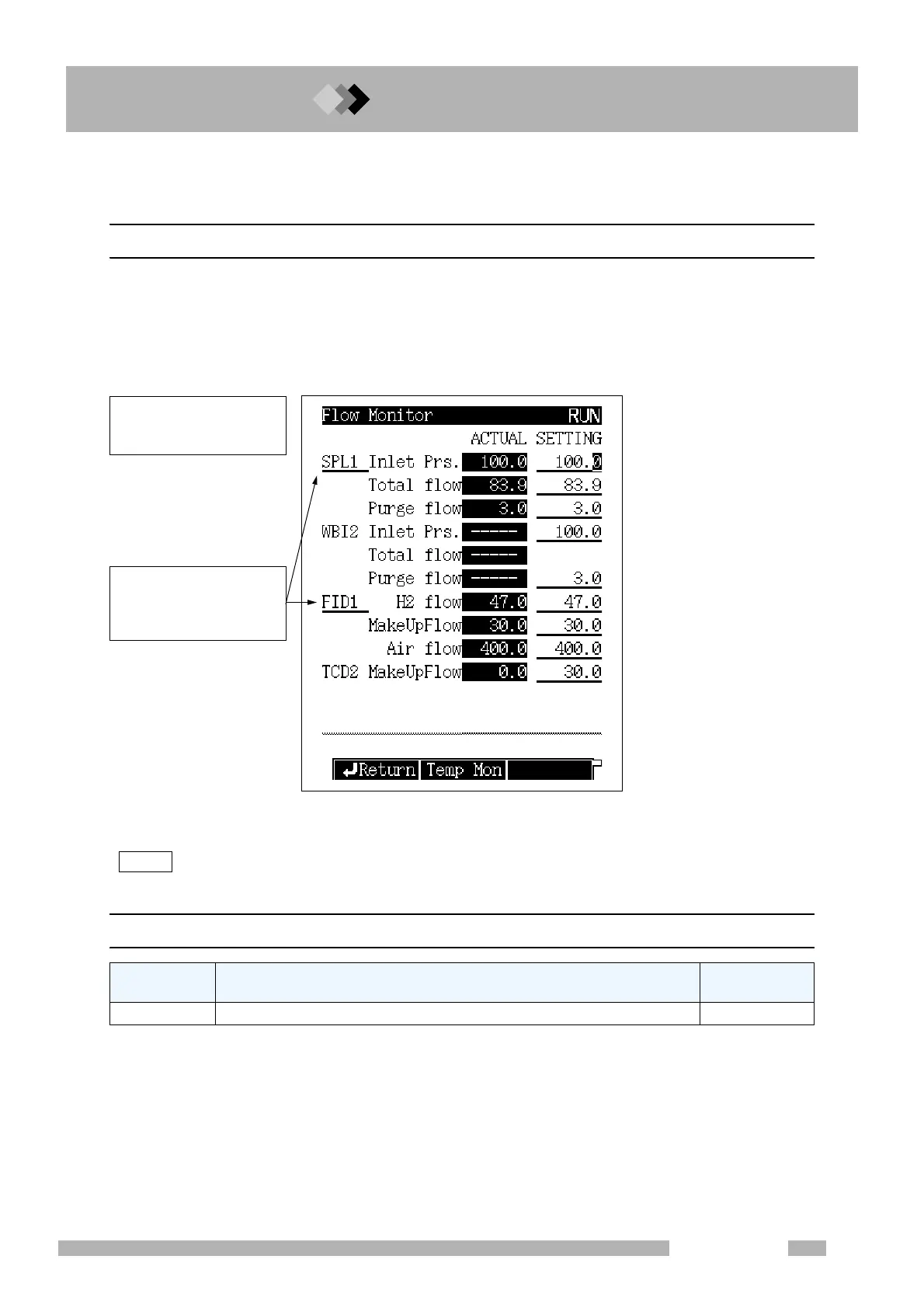

Fig. 9.3.1 Flow rate monitor
PF menu Description
Reference
section
Temp Mon Monitor temperature of the column oven, injection ports and detectors. 9.2
The name of injection port
and detectors constructing
the current line are under
lined.
Displayed items depend on
the type of injection ports,
detectors and flow controllers.
