2.2Component description
Q Front

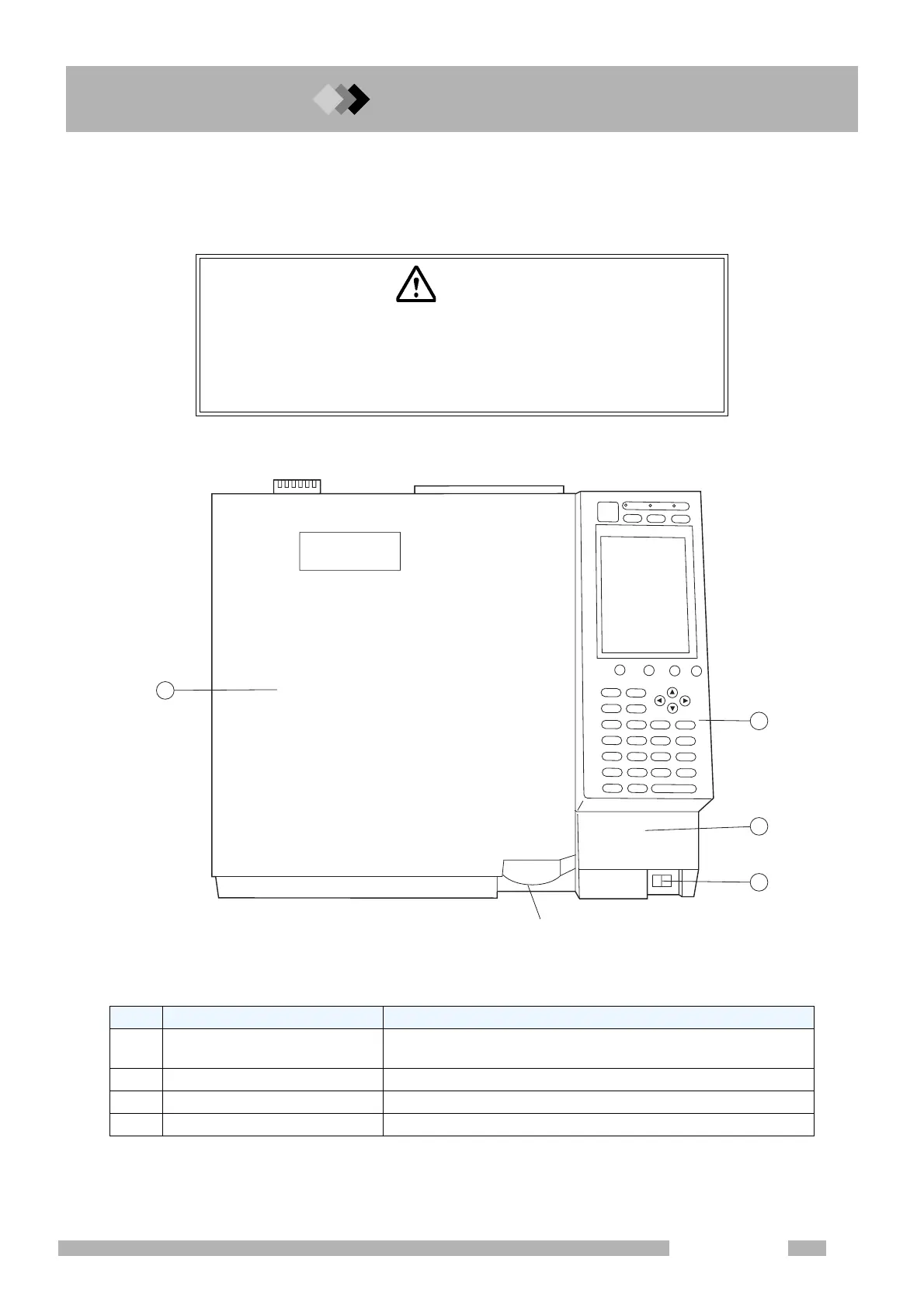

Fig. 2.2.1
WARNING
HIGH TEMPERATURE
Danger of burns. Keep the column oven door closed when the oven
is at high temperature. Keep the injection port cover on when making
manual injections.
No. Name Description
1 Column oven door Pull the latch on the lower right to open the door. Press the center
of the door to close it.
2 Key/Display Used for various input and displaying component status.
3 Battery case for FPD fan Houses the battery for FPD cooling fan (option).
4 Power switch Turns the power of the unit on and off.
GC-2010 Plus
2
1
3
4
Door latch
