Shimadzu GC-2010 Plus User Manual

18 Maintenance and Inspection
18.8
18.
301
GC-2010 Plus
18.8 Inspection and Maintenance: Flow Controller
Three areas in the flow controller should be inspected: the molecurar sieve filter and two traps
(PURGE and SPLIT) in case of split/speitless. And two areas should be inspected in case of WBI.

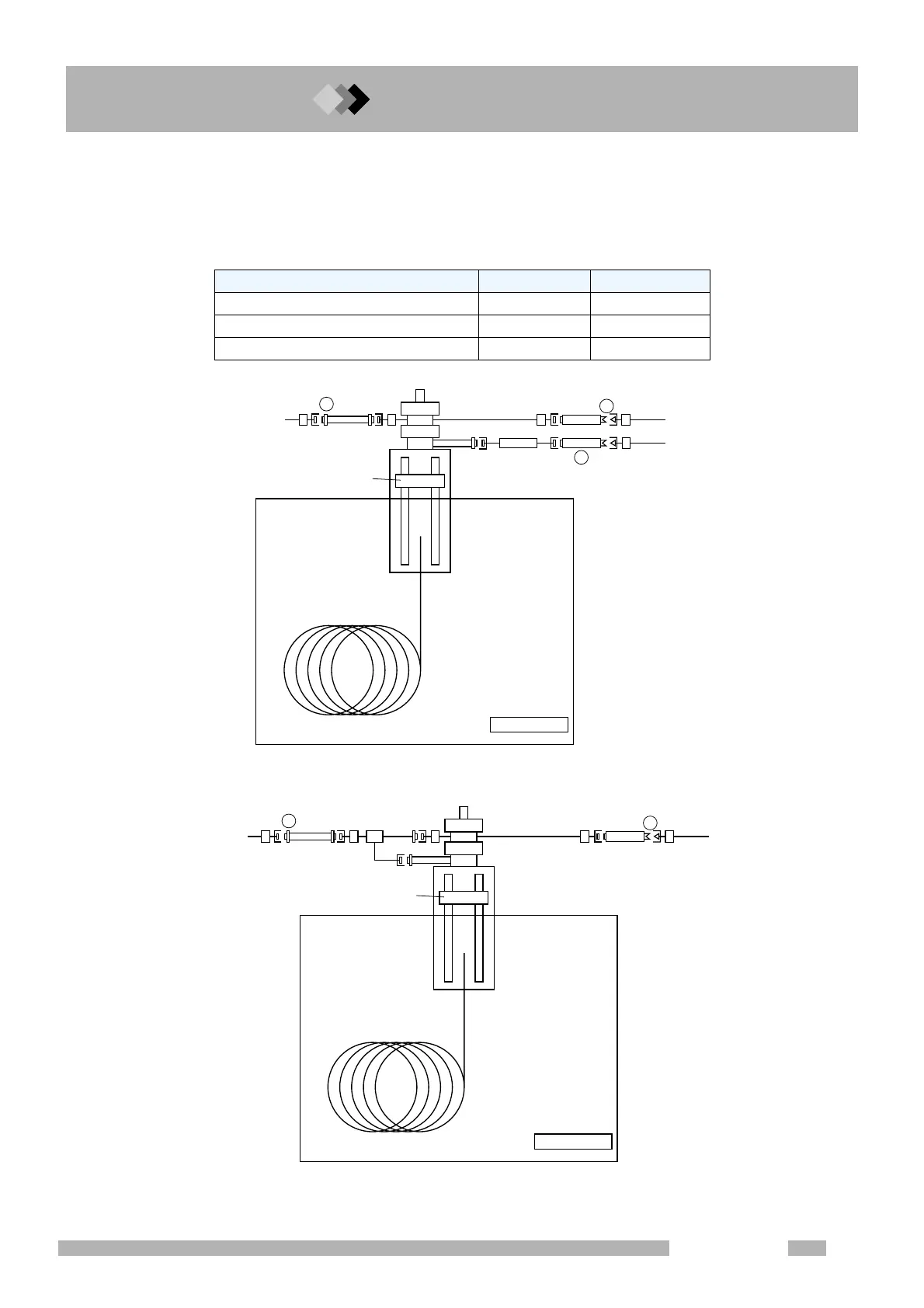

Fig. 18.8.1 Filter locations (split/splitless)
Fig. 18.8.2 Filter locations (WBI)
Part name Part No. Reference No.
Molecular sieve filter 221-34121-94

Trap (PURGE) 221-42559-92 
Trap (SPLIT) 221-42559-92 
1
CARRIER
PURGE
Injection port
2
SPLIT
3
Column oven
Capillary column
Carrier gas
IN
PURGE
OUT
SPLIT
OUT
CC PP
S
Injection port
Column oven
Capillary column
1
CARRIER
Carrier gas
IN
CC
PURGE
2
PURGE
OUT
CPP

Shimadzu GC-2010 Plus Specifications

General

Type	Gas Chromatograph
Model	GC-2010 Plus
Manufacturer	Shimadzu
Maximum Temperature Ramp Rate	120 °C/min
Detector Options	FID, TCD, ECD, FPD, NPD, MS
Electronic Flow Control (EFC)	Yes
Data Sampling Rate	Up to 250 Hz
Column Oven Temperature Range	Ambient +5°C to 450°C
Maximum Oven Heating Rate	120 °C/min
Injection Port	Split/Splitless, PTV
Display	LCD
