GC-2010 Plus
14 Diagnosis
14.1Standard Diagnosis
Each part of the gas chromatograph is checked for problems with the self-diagnosis function.
Perform the standard diagnosis periodicaslly to maintain optimal performance and prevent failures.
14.1.1 Screen description
Select “STANDARD DIAGNOSIS” from the [DIAG] key main screen to display the Standard
Diagnosis screen shown in Fig. 14.1.1.
14.1.2 PF menu

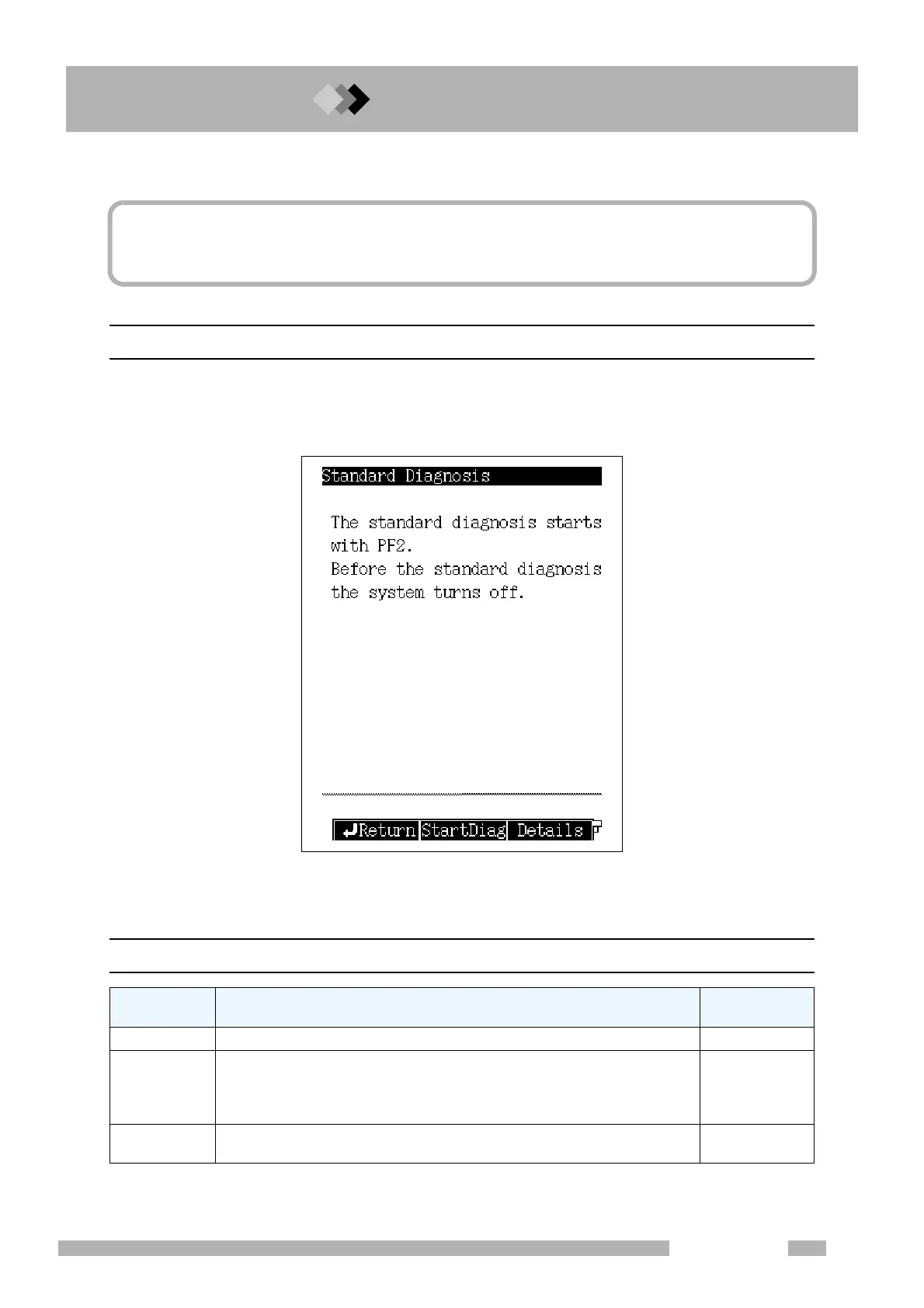

Fig. 14.1.1 Diagnosis main screen
PF menu Description
Reference
section
Start Diag Starts standard diagnosis program. 14.1.5
Details
Displays result of the most recent diagnosis.
However, if standard diagnosis has not been executed since the power has
been turned on, default values are displayed.
[Print] (PF menu) prints out the displayed diagnosis results to chromatopac.
14.1.9
Diag Param
Selects diagnosis items and determines setup values used for diagnostic
reference.
14.1.3
