16.7.3 INSTALLATION (POSITION)
16.7.3.1 Screen Description
Select “7. SERVICE/MAINTENANCE” from the [FUNC] key screen, and then select “1.
INSTALLATION (POSITION)”, to open the GC installation screen shown in Fig. 16.7.2
appears.
After installing injection ports and detectors, specify the location of installed components
by entering the headed zone number while. referring to Fig. 16.7.3.
The head zone number of the TCD pre-heater (PRE-TCD) is “0”.

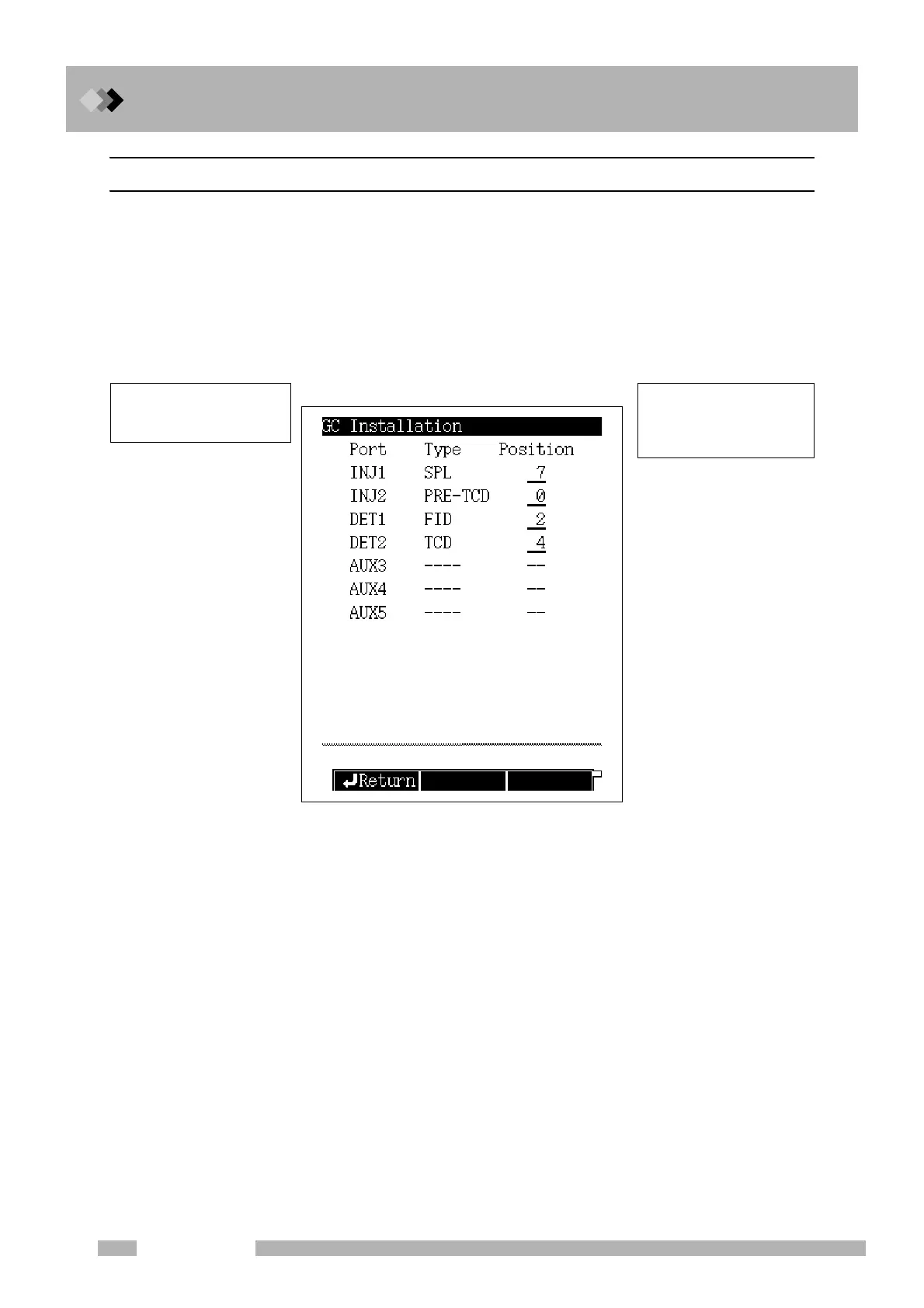

Fig. 16.7.2 GC installation setup screen
Enter the heated zone number
to specify the unit installation
position in a number. (Refer
to Fig. 16.7.3.)
The component type of installed
injectors and detectors is
automatically determined.
