4.2Location of Heated Zones
The capillary column can be installed in the following heated zones.
Injection port 6−8 (Normally installed in 7)
If 8 is selected, an auto injector cannot be installed.
Detector 1−4 (Normally installed in 4)

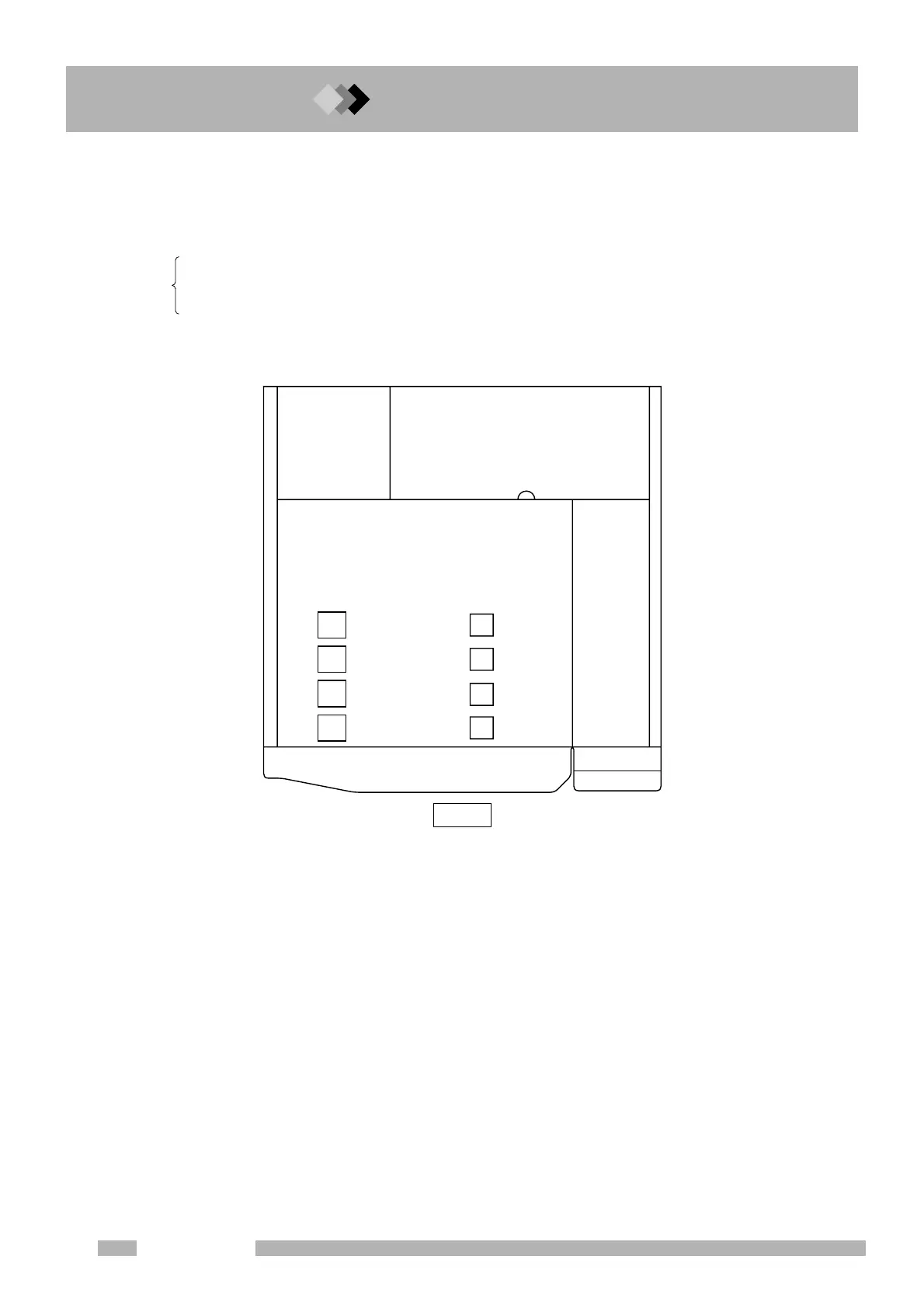

Fig. 4.2.1 Location of heated zones
8
7
6
5
4
3
2
1
Top view
