Siemens CU240S DP-F Parameter Manual

Parameters
List of Parameters
1-174
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Specifies scaling of lower torque limitation in [%].
Note: P1525 = 100 % = standard setting
Description: Displays actual upper torque limitation.
Dependency: The parameters r1526 and r1527 depend on P1520, P1521, P1522, P1523 and P1525.
Description: Displays actual lower torque limitation.
Note: See parameter r1526.
p1525[0...2] Scaling lower torque limit / Scal. low trq. lim
Access level: 3 P-Group: Closed-loop control Data type: Floating Point
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
-400.0 [%] 400.0 [%] 100.0 [%]
r1526 CO: Upper torque limitation / Upper trq. lim
Access level: 3 P-Group: Closed-loop control Data type: Floating Point
Unit: [Nm] Data set: -

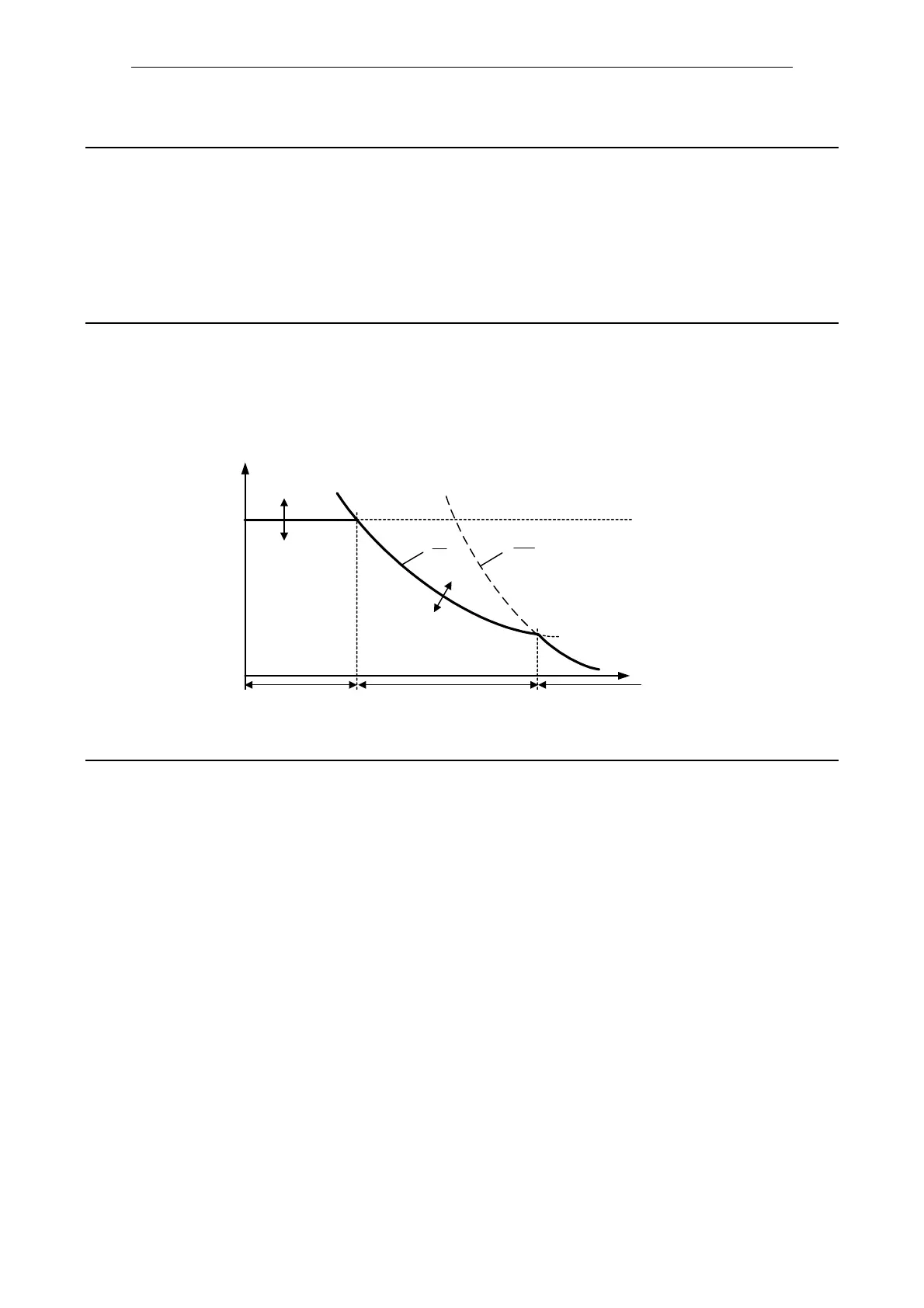

f
1
~
Torque limitation
Resultant
torque limit
Power
limitation
|f
act
r1526
r1527
Stall
limitation
p1530
p1531
f
1
~
2
Constant
torque
f
stall
Constant
power
|
|M|
Stall
power
r1527 CO: Lower torque limitation / Lower trq. lim
Access level: 3 P-Group: Closed-loop control Data type: Floating Point
Unit: [Nm] Data set: -
