List of Parameters
Parameters
1-205
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Displays process data received via USS on RS485.
Index: [0] = Received word 0
[1] = Received word 1
[2] = Received word 2
[3] = Received word 3
[4] = Received word 4
[5] = Received word 5
[6] = Received word 6
[7] = Received word 7
Note: Restrictions:
• If the obove serial interface controls the inverter (P0700 or P0719) then the 1st control word must be transferred
in the 1st PZD-word.
• If the setpoint source is selected via P1000 or P0719, then the main setpoint must be transfered in the 2nd
PZD-word,
• When P2012 is greater than or equal to 4 the additional control word (2nd control word) must transferred in the
4th PZD-word, if the obove serial interface controls the inverter (P0700 or P0719).
r2018[0...7] CO: PZD from USS on RS485 / PZD<-COM(USS)
CU240E
CU240S
Access level: 3 P-Group: Communications Data type: Unsigned16
Unit: - Data set: -
.
.
.
r2037
r2036
[0]
r2018
[1]
[2]
[3]
[7]
STX
LGE
ADR
Start of text
Length
Address
PKW
PZD
BCC
Parameter ID value
Process data
Block check character

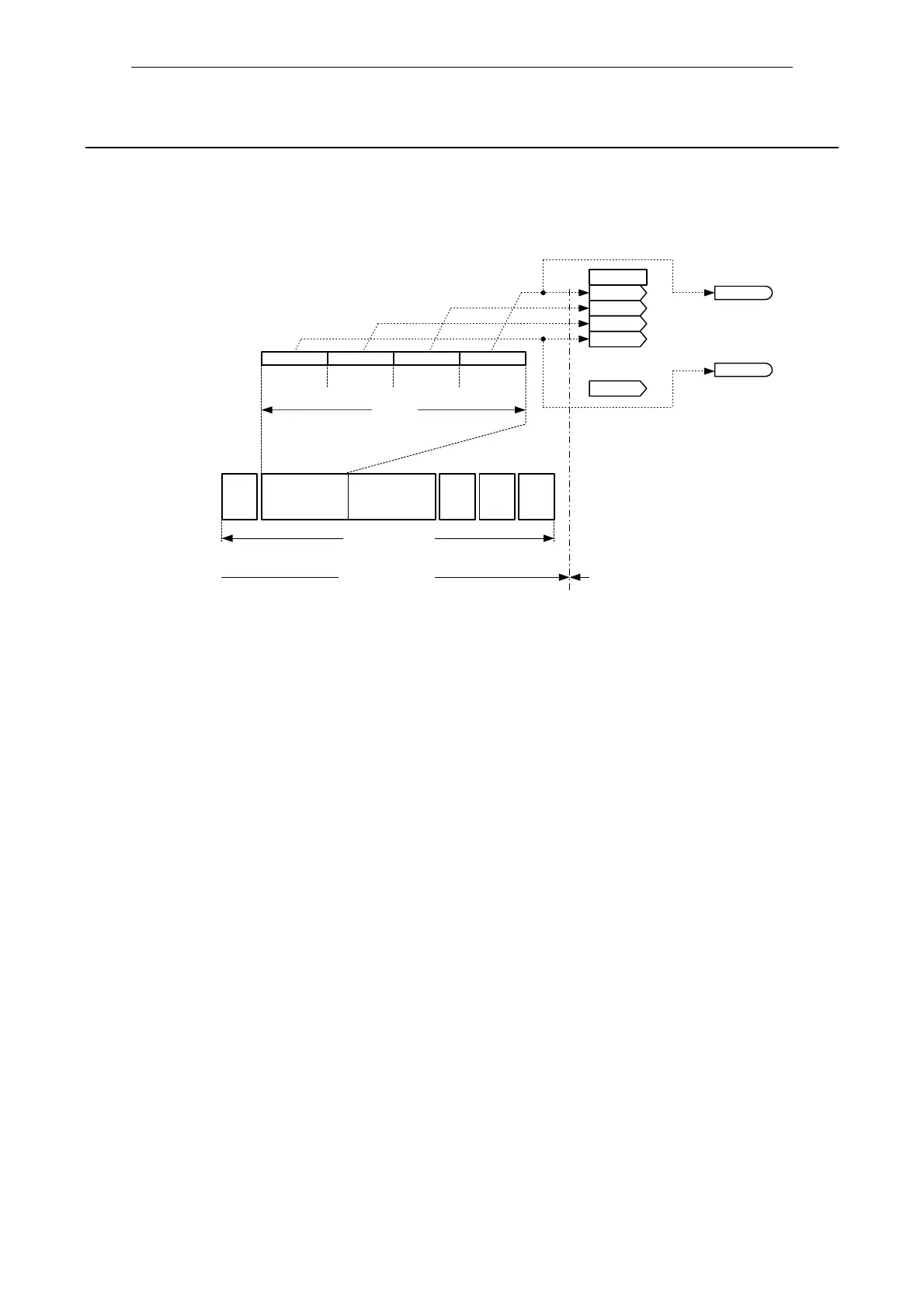

PZD mapping to parameter r2018
STW
HSW
Control word
Main setpoint
USS on RS485
PZD1
STW1
PZD2
HSW
PZD3PZD4
STW2
p2012
USS telegram
STXLGEADRBCC
PKWPZD
Process data
Parameter
