Parameters
List of Parameters
1-36
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Displays rated inverter current.
Index: [0] = Rated inverter current
[1] = Rated LO current
[2] = Rated HO current

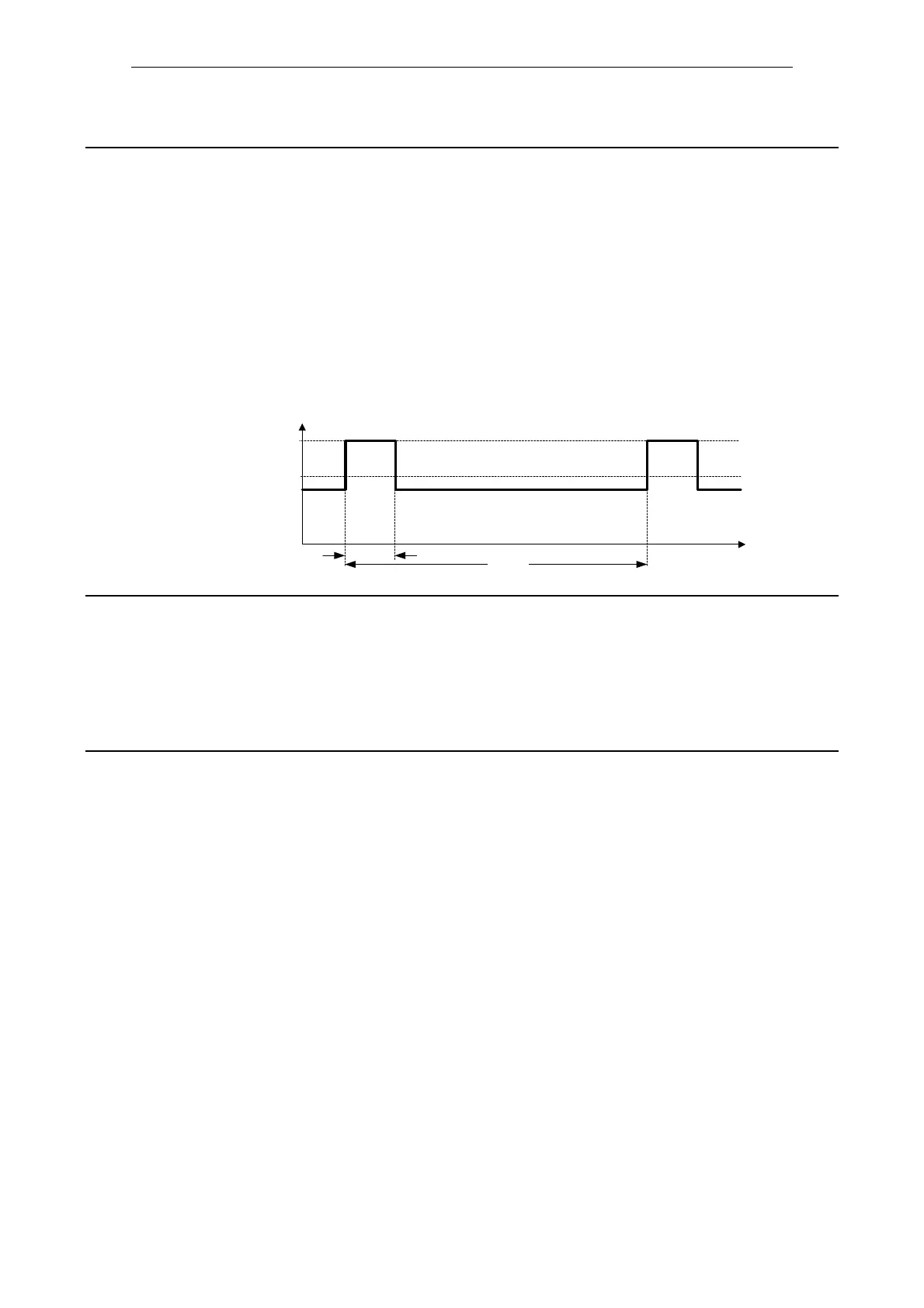

Note: The rated light overload (LO) current r0207[1] and rated high overload (HO) current r0207[2] values correspond to
suitable 4-pole Siemens standard motors (IEC) for the selected load cycle (see diagram).
The parameters r0207[1], r0207[2] are the default value of P0305 in association with the HO/LO application (load
cycle).
If r0207[1] = r0207[2], then no differentiation is possible between HO/LO applications.
Description: Displays nominal AC supply voltage of inverter.
Note: r0208 = 230 : 200 - 240 V +/- 10 %
r0208 = 400 : 380 - 480 V +/- 10 %
r0208 = 575 : 500 - 600 V +/- 10 %
Description: Displays maximum output current of inverter.
Dependency: Parameter r0209 depends on the derating which is affected by pulse frequency P1800, ambient temperature and
altitude.
The data of deration is given in the Operating Instructions.
r0207[0...2] Rated inverter current / Rated inverter cur
Access level: 2 P-Group: Converter Data type: Floating Point
Unit: [A] Data set: -
%
r0209
r0207[0] 100 %
85 %
150 %
Inverter current/power
60 s
t
300 s
Short-time current
Rated inverter current (continuous)
Base load current (with overload capability)
r0208 Rated inverter voltage / Rated voltage
Access level: 2 P-Group: Converter Data type: Unsigned32
Unit: [V] Data set: -
r0209 Maximum inverter current / Max. inverter cur
Access level: 2 P-Group: Converter Data type: Floating Point
Unit: [A] Data set: -
