Siemens CU240S DP-F Parameter Manual

List of Parameters
Parameters
1-259
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: P2816[0], P2816[1] define inputs of OR 1 element, output is P2817.
Index: [0] = Binector input 0 (BI 0)
[1] = Binector input 1 (BI 1)
Dependency: P2801[3] is active level for the OR element.
Description: Output of OR 1 element.
Displays or logic of bits defined in P2816[0], P2816[1].
Dependency: P2801[3] is active level for the OR element.
Description: P2818[0], P2818[1] define inputs of OR 2 element, output is P2819.
Index: [0] = Binector input 0 (BI 0)
[1] = Binector input 1 (BI 1)
Dependency: P2801[4] is active level for the OR element.
Description: Output of OR 2 element.
Displays or logic of bits defined in P2818[0], P2818[1].
Dependency: P2801[4] is active level for the OR element.
p2816[0...1] BI: OR 1 / OR 1
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 0

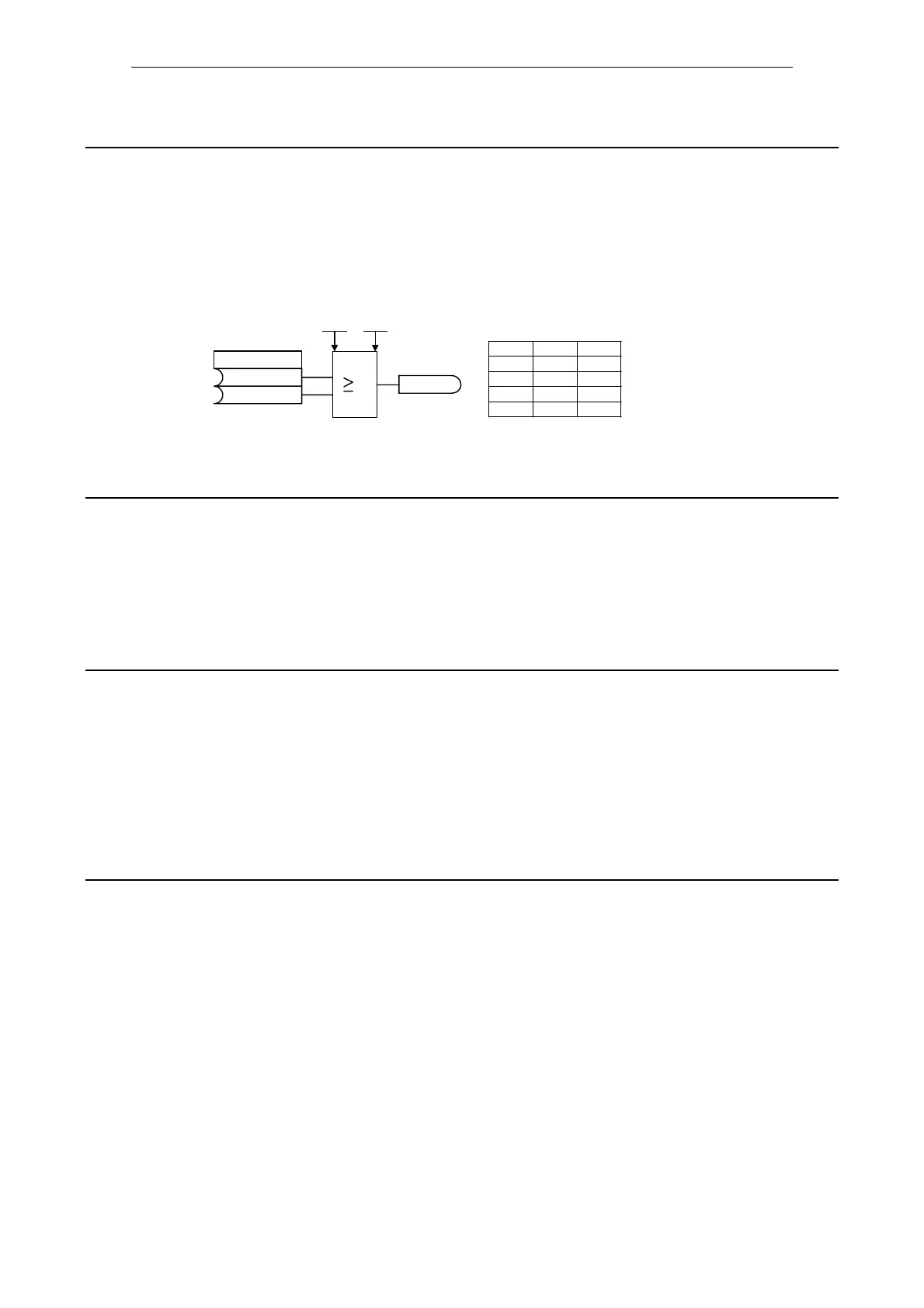

A
B
C
p2816
r2817
ABC
000
011
101
111
1
p2800
p2801[3]
Index0
Index1
r2817.0 BO: OR 1 / OR 1
Access level: 3 P-Group: Technology Data type: Unsigned16
Unit: - Data set: -
Bit field: Bit Signal name 1 signal 0 signal FP
00 Output of BO Yes No -
p2818[0...1] BI: OR 2 / OR 2
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 0
r2819.0 BO: OR 2 / OR 2
Access level: 3 P-Group: Technology Data type: Unsigned16
Unit: - Data set: -
Bit field: Bit Signal name 1 signal 0 signal FP
00 Output of BO Yes No -
