Siemens CU240S DP-F Parameter Manual

Function diagrams
External Interfaces
2-332
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007

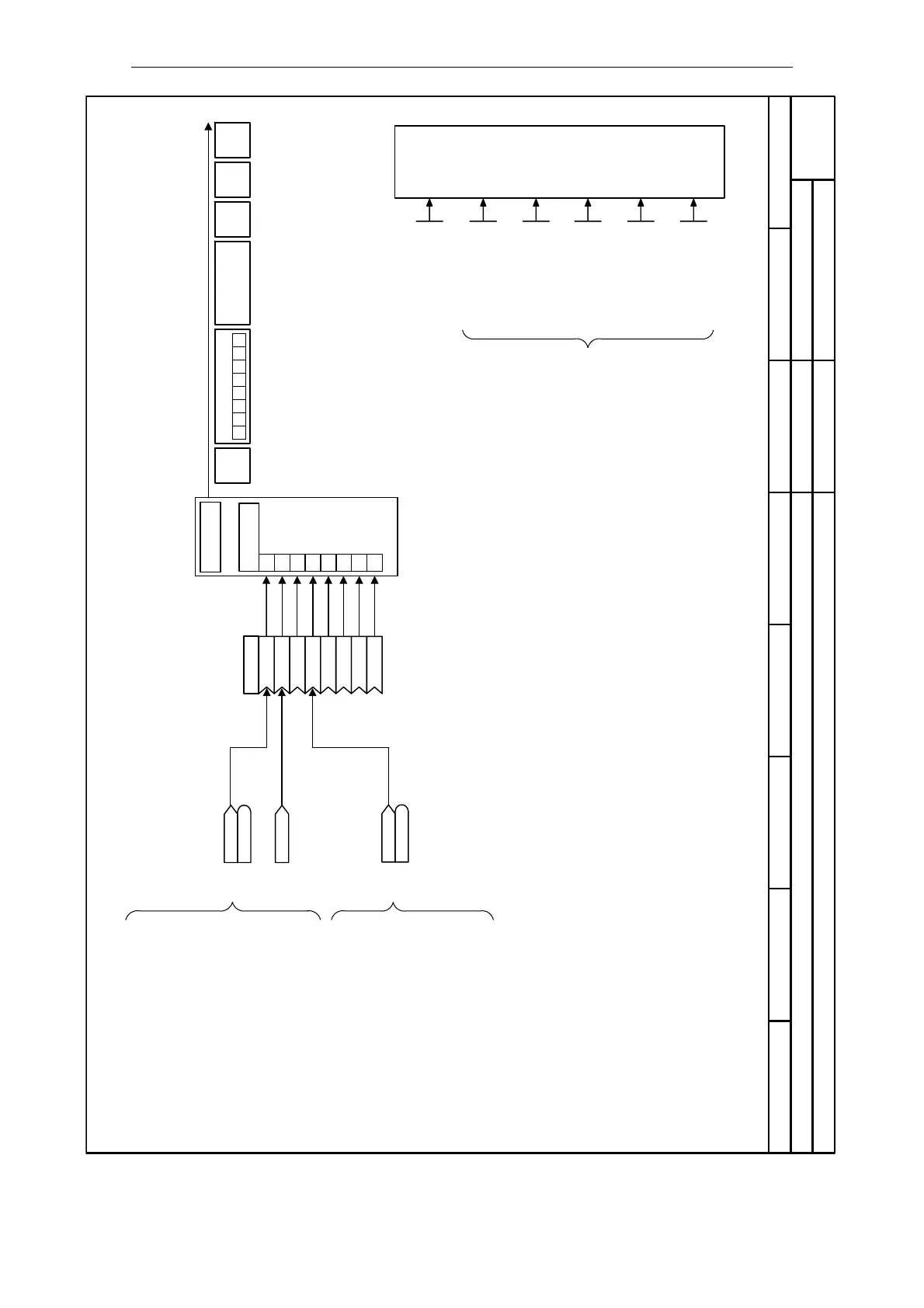

Fig. 2-12 2610 – USS on RS485, Transmitting
- 2610 -
Function diagram
87654321
2610_USSon485.vsd
External Interfaces
SINAMICS G120
02.04.2007 V3.0
USS on RS485, Transmitting
PKW
PZD
1 2 3 4 5 6 7 0
ADRBCC
PZD
PKW
07 6 5 4 3 2 1
[0]
P2019
[2]
[3] [4] [1] [5] [6] [7]
LGE STX
TxD
Bit3 = 1
USS
configuration
Transmit
r0021
Act. filt. freq. [Hz]
Act StatWd1
r0052 r0052
Act StatWd2
r0053 r0053
Change par. via
- ... -
P0927 (1111 bin)
USS baudrate
4 ... 12
P2010 [2] (8)
USS address
0 ... 31
P2011 [2] (0)
USS PZD length
0 ... 8
P2012 [2] (2)
USS PKW length
0 ... 127
P2013 [2] (127)
USS telegram T_off
0 ... 65535 [ms]
P2014 [2] (0)
All parameters: Index = 0 => RS485
Note: P2019[0] = 52 P2019[1] = 21 P2019[3] = 53 are default settings
Bit00 Drive ready Bit01 Drive ready to run Bit02 Drive running Bit03 Drive fault active
Transmit telegram
Bit04 OFF2 active Bit05 OFF3 active Bit06 ON inhibit active Bit07 Drive warning active Bit08 Deviation setpoint / act. value Bit09 PZD control Bit10 Maximum frequency reached Bit11 Warning: Motor current limit Bit12 Motor holding brake active Bit13 Motor overload Bit14 Motor runs right Bit15 Inverter overload Bit00 DC brake active Bit01 Act. freq. r0021 > P2167 (f_off) Bit02 Act. freq. r0021 > P1080 (f_min) Bit03 Act. current r0027 >= P2170 Bit04 Act. freq. r0021 >= P2155 (f_1) Bit05 Act. freq. r0021 < P2155 (f_1) Bit06 Act. freq. r0021 >= setpoint Bit07 Act. Vdc r0026 < P2172 Bit08 Act. Vdc r0026 > P2172 Bit09 Ramping finished Bit10 PID output r2294 == P2292 (PID_min) Bit11 PID output r2294 == P2291 (PID_max) Bit14 Download data set 0 from AOP Bit15 Download data set 1 from AOP
