Siemens CU240S DP-F Parameter Manual

Internal Setpoint Source
Function diagrams
2-339
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007

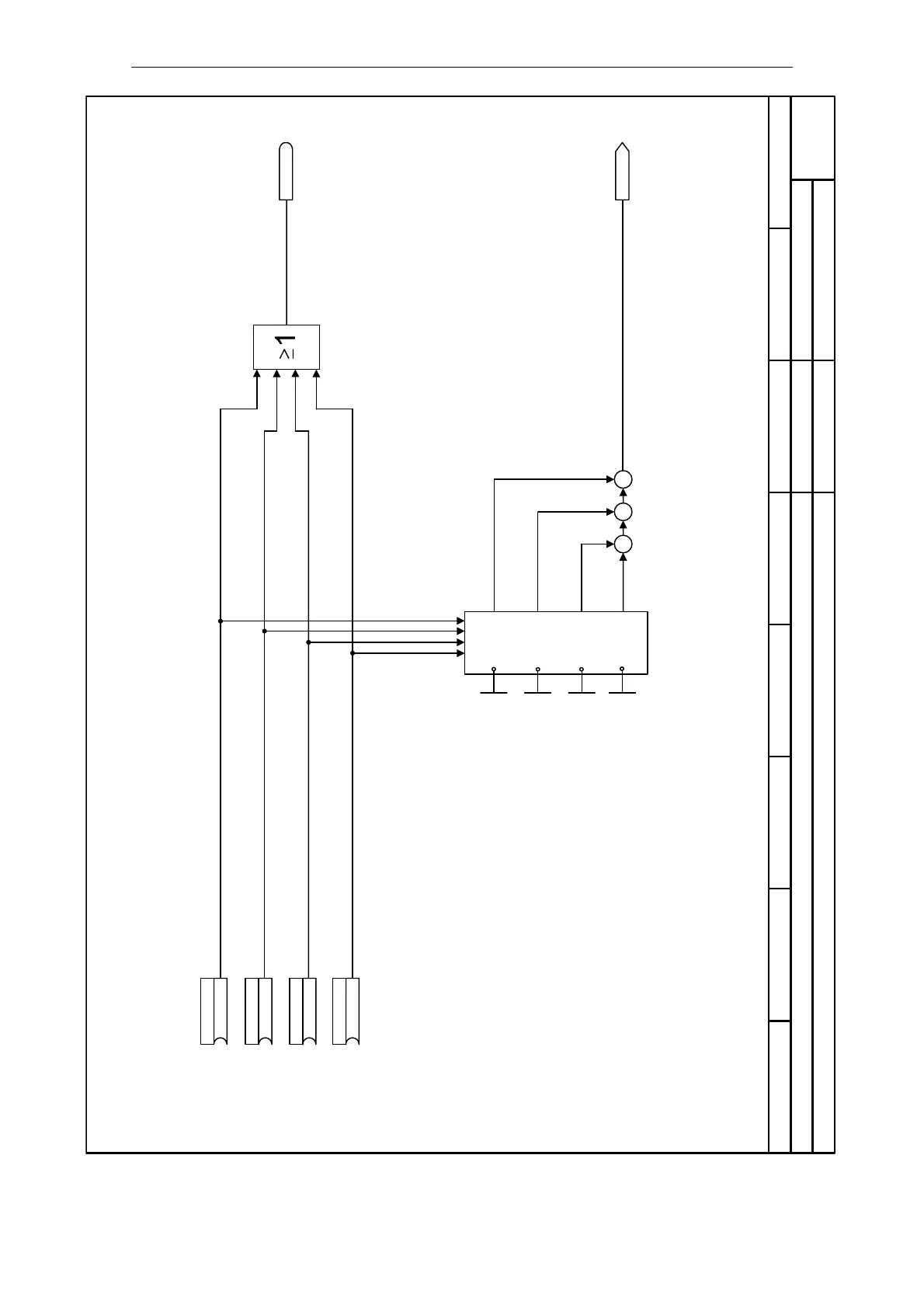

Fig. 2-18 3300 – Fixed PID setpoint, Direct Selection (P2216 = 1)
- 3300 -
Function diagram
87654321
3300_FPID.vsd
Internal Setpoint Source
SINAMICS G120
02.04.2007 V3.0
Fixed PID setpoint, Direct Selection (P2216 = 1)
0 0 0 1
0 1 0 0
1 0 0 0
0 0 1 0
+++
Fixed PID setp. 1
-200.00 ... 200.00 [%]
P2201.DDS ( 0.00)
(722.3)
BI:PID setp->Bit 0 P2220.CDS
PID FF Status
r2225 r2224
Fixed.PID setp [%]
(722.4)
BI:PID setp->Bit 1
P2221.CDS
(722.5)
BI:PID setp->Bit 2
P2222.CDS
(722.6)
BI:PID setp->Bit 3 P2223.CDS
Fixed PID setp. 2
-200.00 ... 200.00 [%]
P2202.DDS ( 10.00)
Fixed PID setp. 3
-200.00 ... 200.00 [%]
P2203.DDS ( 20.00)
Fixed PID setp. 4
-200.00 ... 200.00 [%]
P2204.DDS ( 30.00)
