Description: Displays process data received via USS on RS485.
Index: [0] = Transmitted word 0
[1] = Transmitted word 1
[2] = Transmitted word 2
[3] = Transmitted word 3
[4] = Transmitted word 4
[5] = Transmitted word 5
[6] = Transmitted word 6
[7] = Transmitted word 7
Note: See P2016 (PZD to USS on RS232)
Description: Displays number of error-free USS telegrams received.
Index: [0] = USS on RS485
[1] = USS on RS232
Description: Displays number of USS telegrams rejected.
Index: [0] = USS on RS485
[1] = USS on RS232
p2019[0...7] CI: PZD to USS on RS485 (USS) / PZD->COM (USS)
CU240E
CU240S
Access level: 3 P-Group: Communications Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: T
Min Max Factory setting
- - 52[0]
p2012
.
.
.
PZD1
ZSW1
PZD2
HIW
PZD3PZD4
ZSW2
[0]
p2019
[1]
[2]
[3]
[7]
STX
LGE
ADR
PKW
PZD
BCC
ZSW
HIW
r0021
r0052
r0052
r0053
r0053
Start of text
Length
Address
Parameter ID value
Process data
Block check character

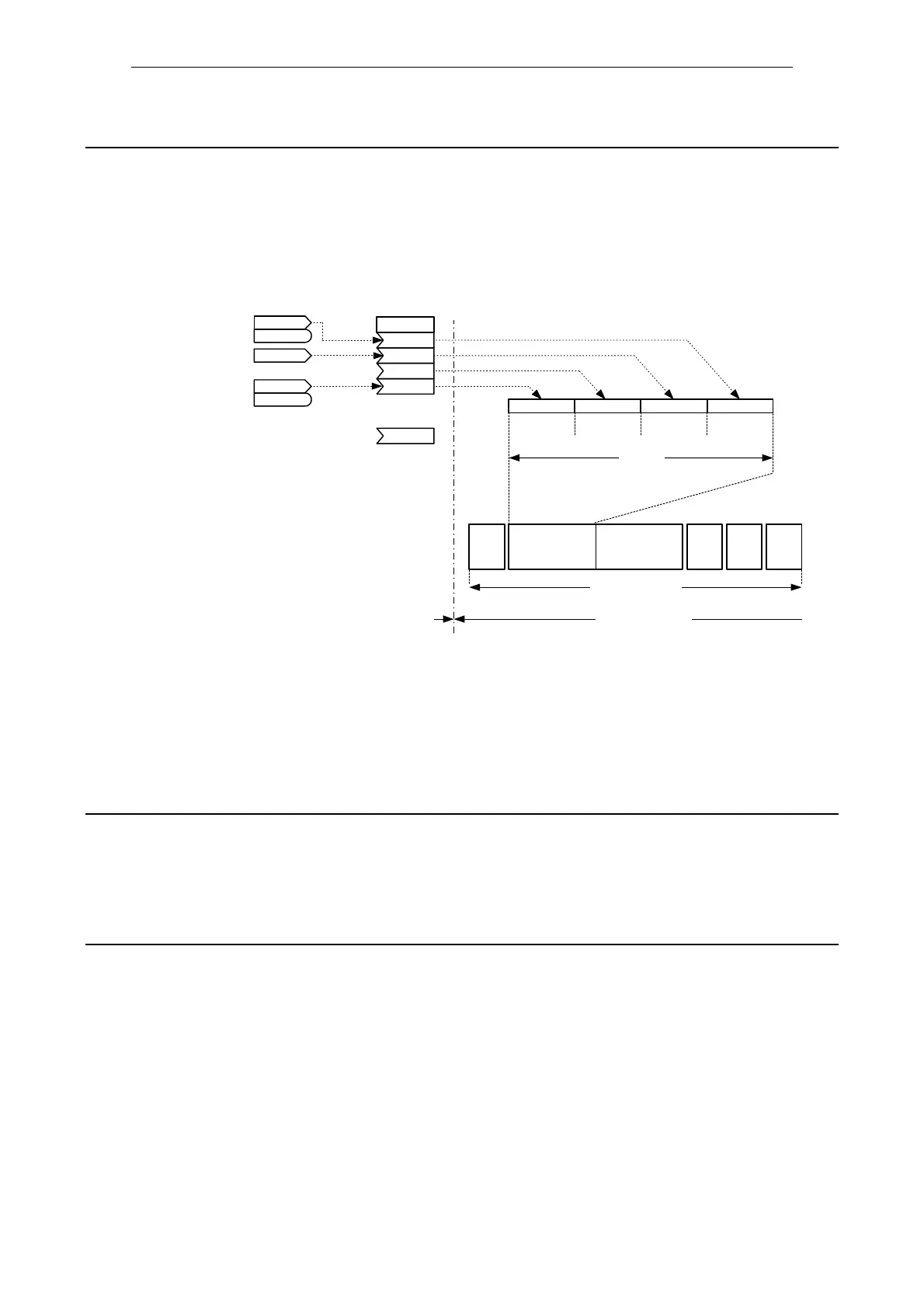

PZD mapping from parameterp2019
USS on RS485
USS telegram
STXLGEADRBCC
PKWPZD
Process data
Parameter
Status word
Main actual value
r2024[0...1] USS error-free telegrams / USS error-free tel
Access level: 3 P-Group: Communications Data type: Unsigned16
Unit: - Data set: -
r2025[0...1] USS rejected telegrams / USS rejected tel.
Access level: 3 P-Group: Communications Data type: Unsigned16
Unit: - Data set: -
