Siemens CU240S DP-F Parameter Manual

Function diagrams
Free Function Blocks
2-352
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007

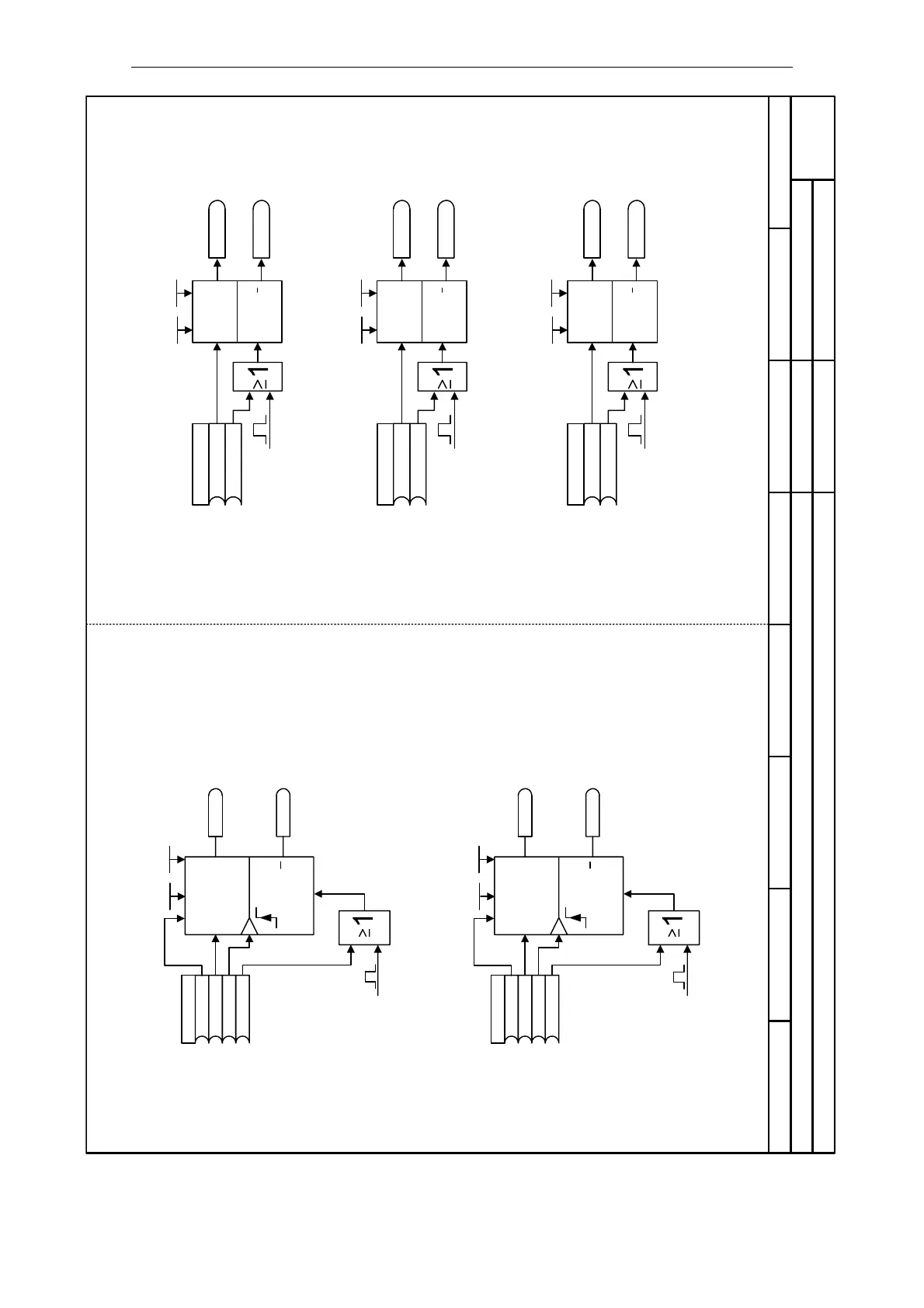

Fig. 2-29 4810 – FlipFlops
- 4810 -
Function diagram
87654321
4810_FreeBlocks2.vsd
Free Blocks
SINAMICS G120
02.04.2007 V3.0
FlipFlops
P2834
Index0 Index1 Index2 Index3
SET (Q=1)
RESET (Q=0)
D
STORE
POWER ON
r2835
r2836
Q
Q
SET
(Q=1)
RESET
(Q=0)
Q Q
P2840
Index0 Index1
POWER ON
r2841 r2842
P2801[12]P2800
2 D FlipFlops 3 RS FlipFlops
P2837
Index0 Index1 Index2 Index3
SET (Q=1)
RESET (Q=0)
D
STORE
r2838
r2839
Q
Q
P2801[13]P2800
P2801[14]P2800
SET
(Q=1)
RESET
(Q=0)
Q Q
P2843
Index0 Index1
POWER ON
r2844 r2845
P2801[15]P2800
SET
(Q=1)
RESET
(Q=0)
Q Q
P2846
Index0 Index1
POWER ON
r2847 r2848
P2801[16]P2800
POWER ON
