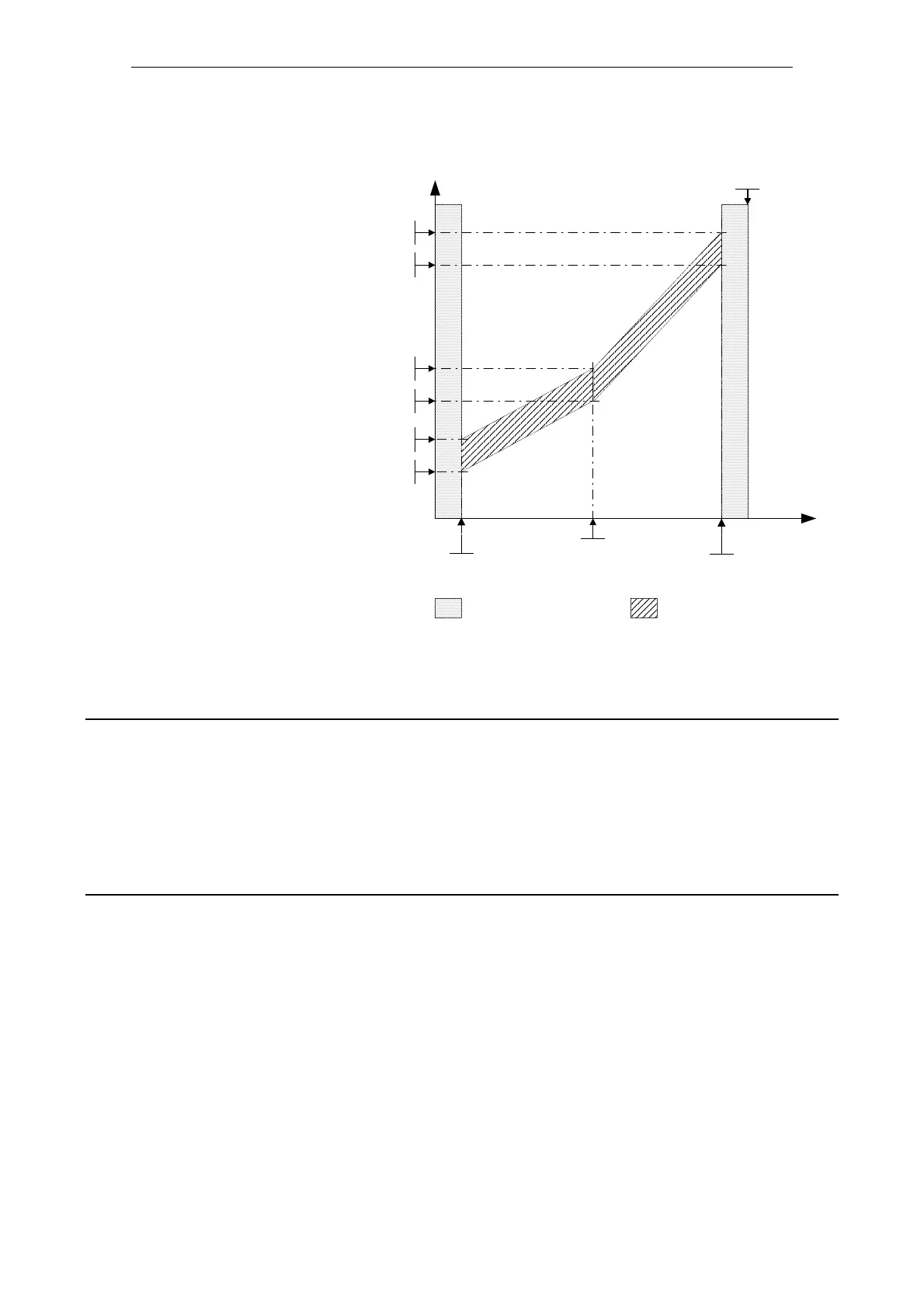

The allowed frequency/torque region is defined by the shaded area.
When the torque falls outside the area shown, a trip or warning occurs (see parameter P2181).
Note: Below the the threshold in p2182 and above the threshold in p2184, belt failure detection mode is not active.
In this case the values for normal operation with the torque limits given in p1521 and p1520 are valid.
Description: Sets a threshold F2 for comparing actual torque to torque the envelope for belt failure detection.
Note: See P2182 (belt threshold frequency 1).
Description: Sets a threshold F3 for comparing actual torque to torque the envelope for belt failure detection.
Note: See P2182 (belt threshold frequency 1).
p2189
Upper torque threshold 3
p2190
Lower torque threshold 3
p2187
Upper torque threshold 2
p2188
Lower torque threshold 2
p2185
Upper torque threshold 1
p2186
Lower torque threshold 1
p2182
Threshold frequency 1
p2183
Threshold frequency 2
p2184
Threshold frequency 3
Torque [Nm]
Frequency
[Hz]
p1082
Max. frequency
Boundary zones
De-activated monitoring
Envelope curve
Active monitoring
p2183[0...2] Belt threshold frequency 2 / Belt threshold f_2
Access level: 2 P-Group: Messages Data type: Floating Point
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.00 [Hz] 650.00 [Hz] 30.00 [Hz]
p2184[0...2] Belt threshold frequency 3 / Belt threshold f_3
Access level: 2 P-Group: Messages Data type: Floating Point
Quick comm. NO Active: YES Data set: DDS
Can be changed: U, T
Min Max Factory setting
0.00 [Hz] 650.00 [Hz] 50.00 [Hz]
