Siemens CU240S DP-F Parameter Manual

List of Parameters
Parameters
1-265
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007

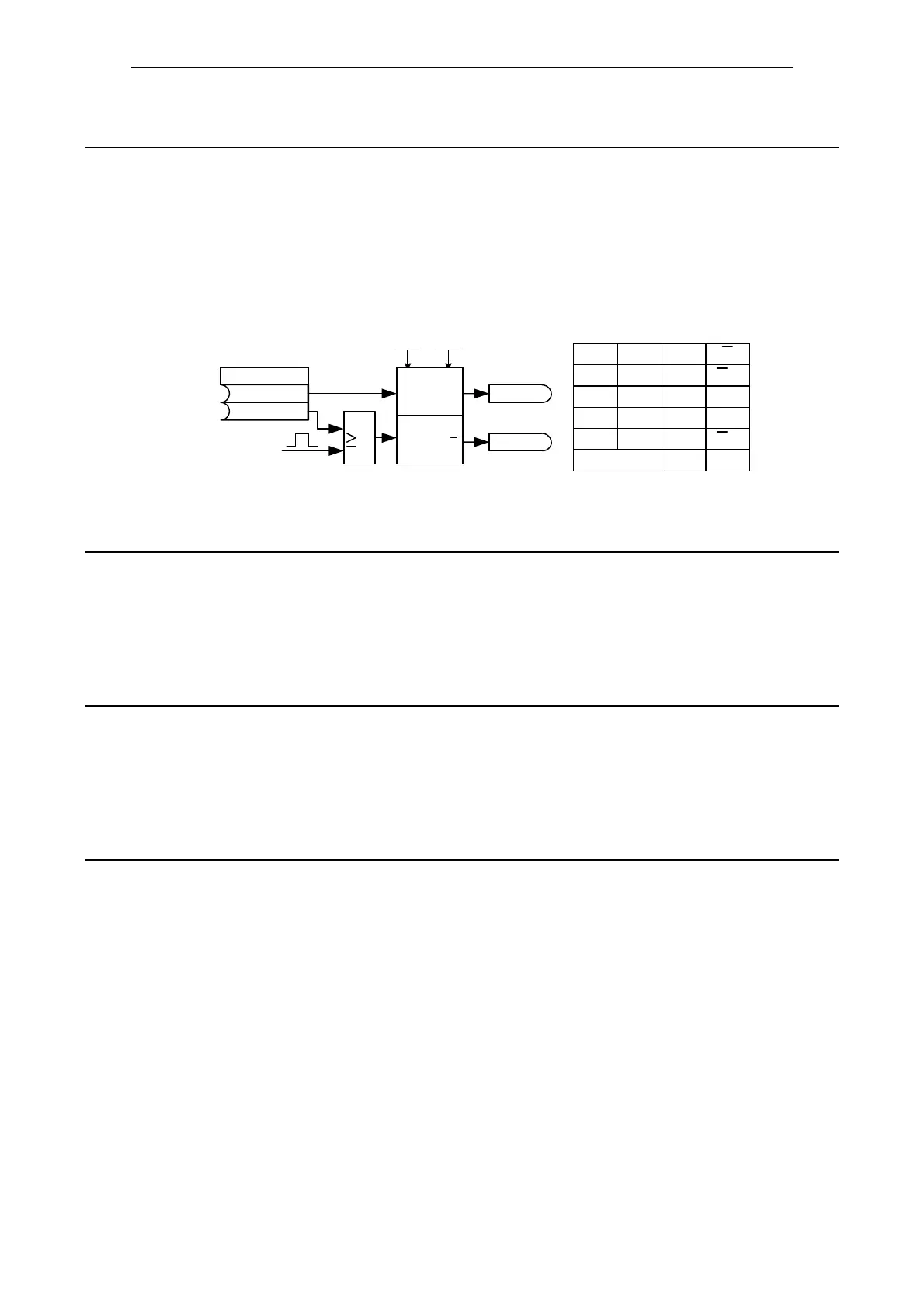

Description: P2840[0], P2840[1] define inputs of RS-FlipFlop 1, outputs are P2841, P2842.
Index: [0] = Binector input: Set
[1] = Binector input: Reset
Dependency: P2801[14] is active level for the RS-FlipFlop.
Description: Displays output of RS-FlipFlop 1, inputs are defined in P2840[0], P2840[1]
Dependency: P2801[14] is active level for the RS-FlipFlop.
Description: Displays Not-output of RS-FlipFlop 1, inputs are defined in P2840[0], P2840[1]
Dependency: P2801[14] is active level for the RS-FlipFlop.
Description: P2843[0], P2843[1] define inputs of RS-FlipFlop 2, outputs are P2844, P2845.
Index: [0] = Binector input: Set
[1] = Binector input: Reset
Dependency: P2801[15] is active level for the RS-FlipFlop.
p2840[0...1] BI: RS-FF 1 / RS-FF 1
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 0
SET RESET Q Q
00Q
n-1
Q
n-1
0101
1010
11Q
n-1
Q
n-1
POWER-ON 0 1
p2800
p2801[14]
SET
(Q=1)
RESET
(Q=0)
Q
Q
p2840
POWER ON
1
r2841
r2842
Index0
Index1
r2841.0 BO: Q RS-FF 1 / Q RS-FF 1
Access level: 3 P-Group: Technology Data type: Unsigned16
Unit: - Data set: -
Bit field: Bit Signal name 1 signal 0 signal FP
00 Output of BO Yes No -
r2842.0 BO: NOT-Q RS-FF 1 / NOT-Q RS-FF 1
Access level: 3 P-Group: Technology Data type: Unsigned16
Unit: - Data set: -
Bit field: Bit Signal name 1 signal 0 signal FP
00 Output of BO Yes No -
p2843[0...1] BI: RS-FF 2 / RS-FF 2
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 0
