Siemens CU240S DP-F Parameter Manual

List of Parameters
Parameters
1-273
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Result of Adder 1.
Dependency: P2802[4] is active level for the Adder.
Description: Define inputs of Adder 2, result is in P2872.
Index: [0] = Connector input 0 (CI 0)
[1] = Connector input 1 (CI 1)
Dependency: P2802[5] is active level for the Adder.
Description: Result of Adder 2.
Dependency: P2802[5] is active level for the Adder.

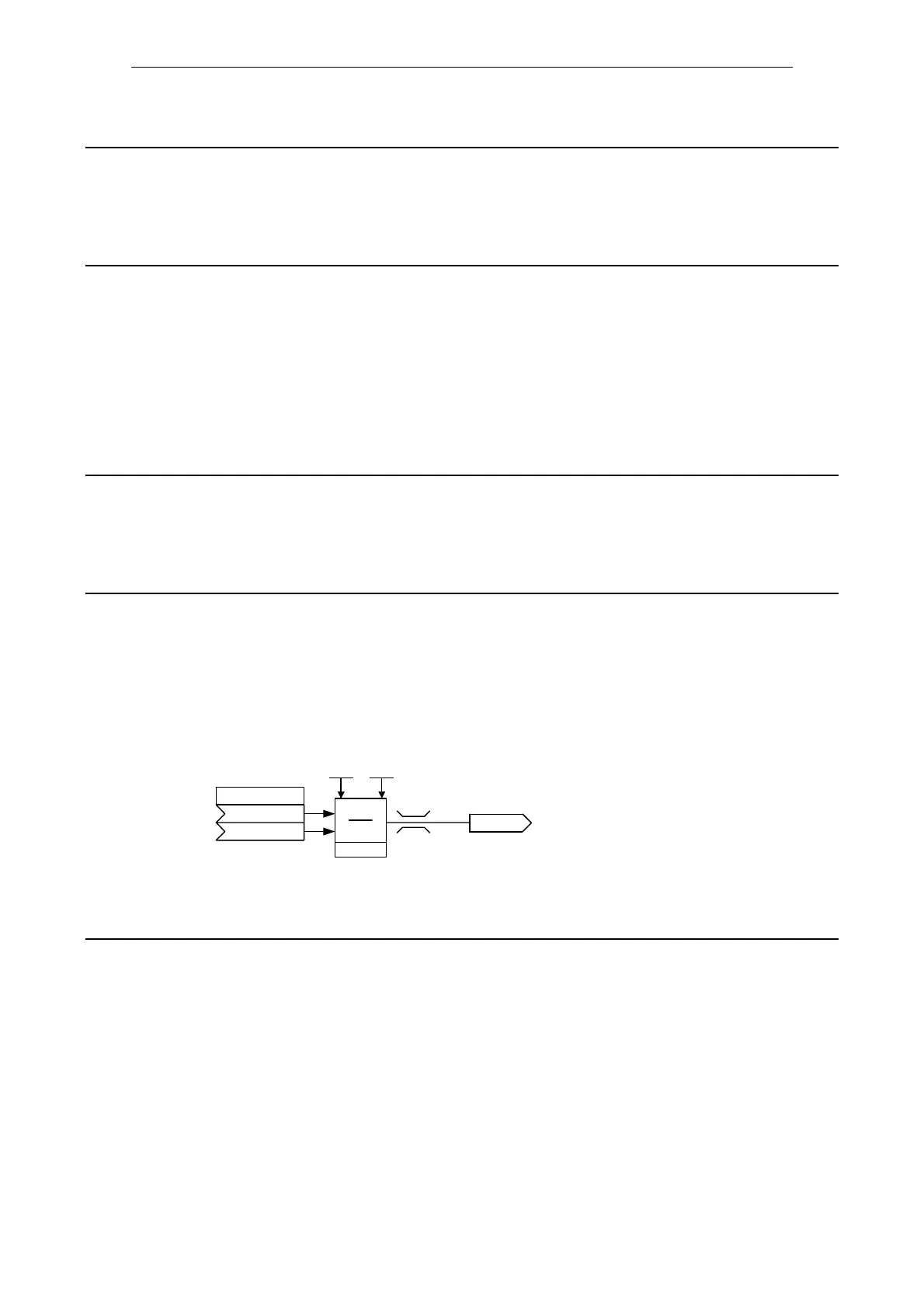

Description: Define inputs of Subtracter 1, result is in P2874.
Index: [0] = Connector input 0 (CI 0)
[1] = Connector input 1 (CI 1)
Dependency: P2802[6] is active level for the Subtracter.
Description: Result of Subtracter 1.
Dependency: P2802[6] is active level for the Subtracter.
r2870 CO: ADD 1 / ADD 1
Access level: 3 P-Group: Technology Data type: Floating Point
Unit: [%] Data set: -
p2871[0...1] CI: ADD 2 / ADD 2
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 755[0]
r2872 CO: ADD 2 / ADD 2
Access level: 3 P-Group: Technology Data type: Floating Point
Unit: [%] Data set: -
p2873[0...1] CI: SUB 1 / SUB 1
Access level: 3 P-Group: Technology Data type: Unsigned32
Quick comm. NO Active: NO Data set: -
Can be changed: U, T
Min Max Factory setting
- - 755[0]
P2873
r2874
x1
x2
200%
-200%
x1 - x2
P2800
P2802[6]
x1 - x2 > 200%
→
x1 - x2 < -200%
→
Result = 200%
Result = -200%
Index0
Index1
Result = x1 - x2
If:
Result
r2874 CO: SUB 1 / SUB 1
Access level: 3 P-Group: Technology Data type: Floating Point
Unit: [%] Data set: -
