Description: Full-scale output voltage (i.e. 100 % ) used over serial link (corresponds to 4000H).
Example:
Note:
Changes to P2001 result in a new calculation of P2004.
Description: Full-scale output current used over serial link (corresponds to 4000H).
Example: If a BICO connection is made between two parameters, the 'unit' of the parameters (standardized (Hex) or physical
(i.e. A) values) may differ. In this case an automatic conversion to the target value is made.
Note: Changes to P2002 result in a new calculation of P2004.
Description: Full-scale reference torque used over the serial link (corresponds to 4000H).
Example: If a BICO connection is made between two parameters or alternatively using P1500, the 'unit' of the parameters
(standardized (Hex) or physical (i.e. Nm) values) may differ. In this case an automatic conversion to the target value
is made.
Note: Changes to P2003 result in a new calculation of P2004.

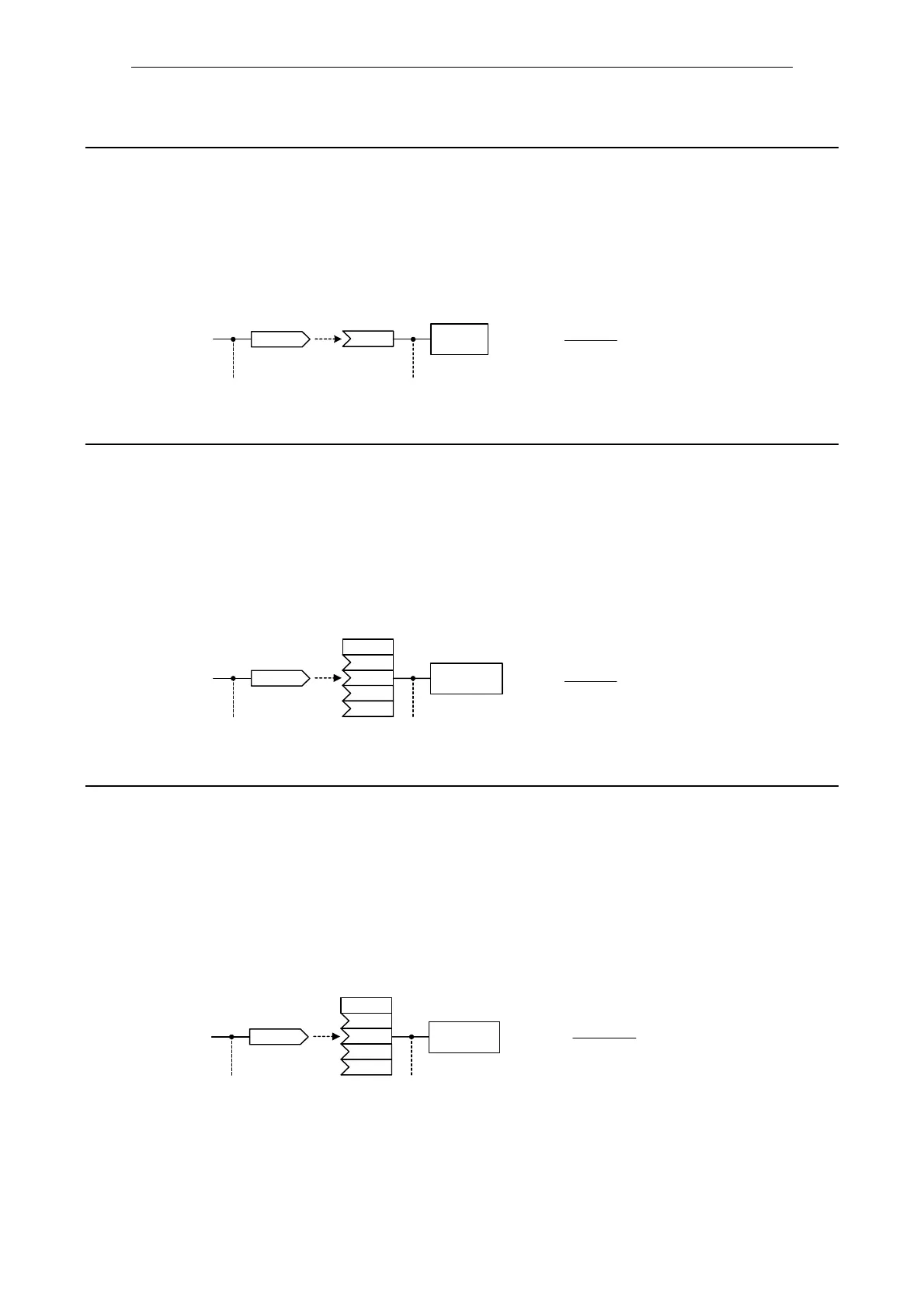

p2001[0...2] Reference voltage / Reference voltage
Access level: 3 P-Group: Communications Data type: Unsigned16
Quick comm. NO Active: NO Data set: DDS
Can be changed: T
Min Max Factory setting
10 [V] 2000 [V] 1000 [V]
p0771
AI
r0026
x[V] y[Hex]
]Hex[4000
p2001[V]
r0026[V]
y[Hex] â‹…=
p2002[0...2] Reference current / Reference current
Access level: 3 P-Group: Communications Data type: Floating Point
Quick comm. NO Active: NO Data set: DDS
Can be changed: T
Min Max Factory setting
0.10 [A] 10000.00 [A] 0.10 [A]
p2051
[0]
[1]
[2]
[3]
r0027
x[A] y[Hex]
]Hex[4000
p2002[A]
r0027[A]
y[Hex] â‹…=
Fieldbus
p2003[0...2] Reference torque / Reference torque
Access level: 3 P-Group: Communications Data type: Floating Point
Quick comm. NO Active: NO Data set: DDS
Can be changed: T
Min Max Factory setting
0.10 [Nm] 99999.00 [Nm] 0.75 [Nm]
p2051
[0]
Fieldbus
[1]
[2]
[3]
r0080
x[Nm] y[Hex]
]Hex[4000
p2003[Nm]
r0080[Nm]
y[Hex] â‹…=
