Siemens CU240S DP-F Parameter Manual

Parameters
List of Parameters
1-212
© Siemens AG 2007 All Rights Reserved
SINAMICS G120 Control Units CU240S, Edition 05/2007
Description: Connects PZD to Fieldbus.
This parameter allows the user to define the source of status words and actual values for the reply PZD.
Index: [0] = Transmitted word 0
[1] = Transmitted word 1
[2] = Transmitted word 2
[3] = Transmitted word 3
[4] = Transmitted word 4
[5] = Transmitted word 5
[6] = Transmitted word 6
[7] = Transmitted word 7
Dependency: When Standard Telegram selected (p0922) and Control from PROFIBUS, parameter cannot be changed except
Standard Telegram 20, index 5.
p2051[0...7] CI: PZD to Fieldbus / PZD to FB
CU240S DP
CU240S DP-F
CU240S PN
Access level: 3 P-Group: Communications Data type: Unsigned32
Quick comm. NO Active: YES Data set: -
Can be changed: T
Min Max Factory setting
- - 52[0]
[0]
P2051
[1]
[2]
[3]
r0052
r0052
PZD1
ZSW1
PZD2PZD3PZD4
PZD
ZSW
HIW

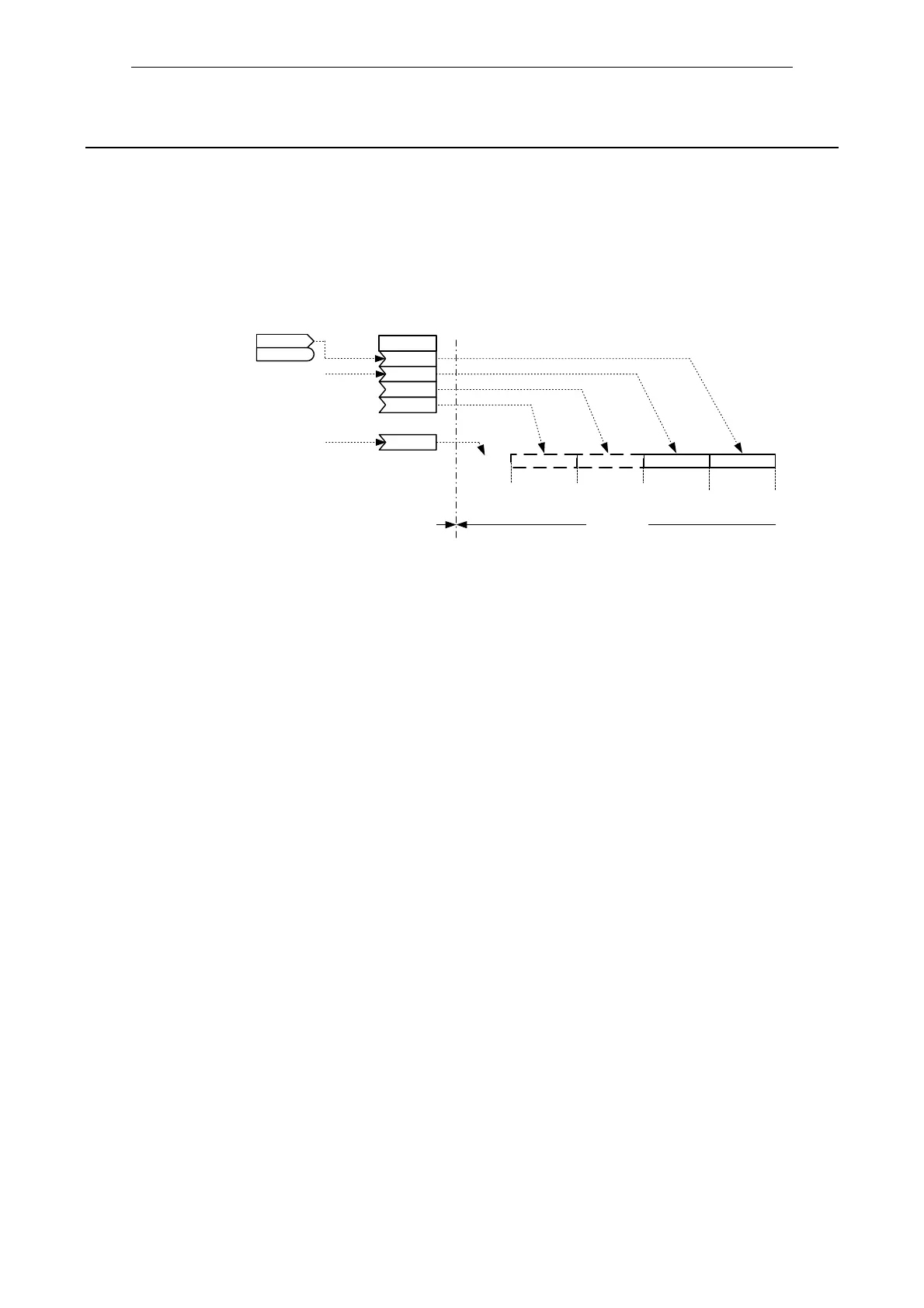

PZD mapping from parameter P2051
Fieldbus
Process data
Status word
Main actual value
depends on setting in P0922
...
[7]
...
